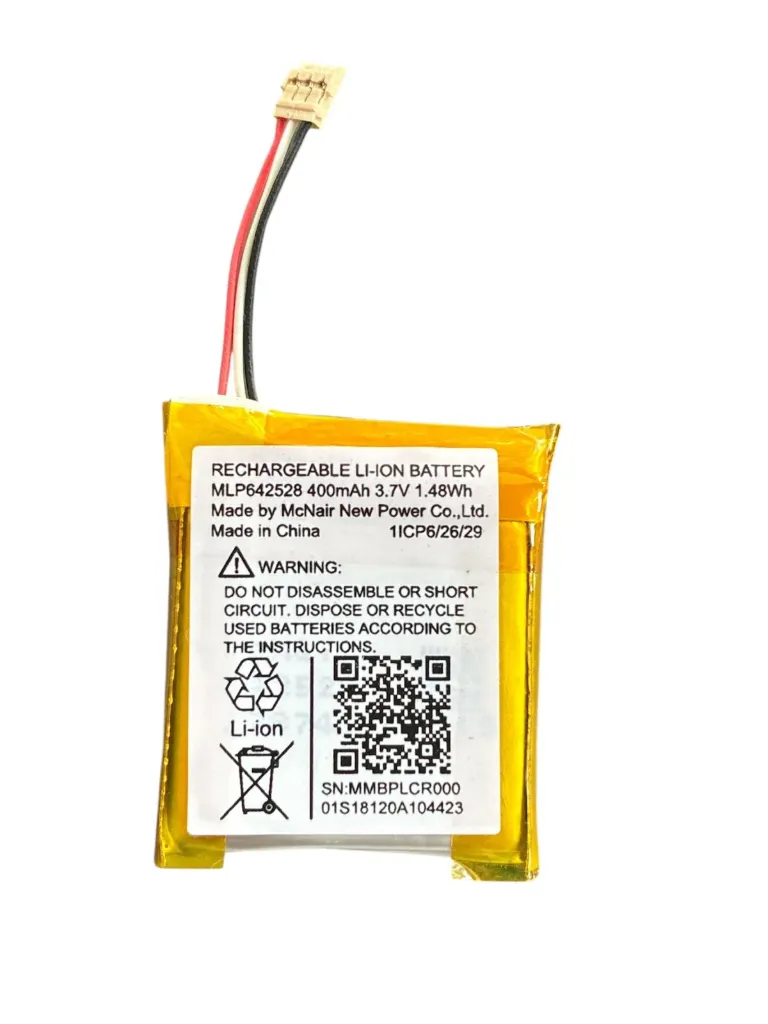

3.7V 400mAh Li-Po Rechargeable Battery with JST Connector for Drones and IoT

3.7V 400mAh Li-Po Rechargeable Battery with JST Connector for Drones and IoT

(0 review)
ComponentSpecification
ChemistryLithium-Polymer (Li-Po)
Nominal Voltage3.7V
Full Charge Voltage4.2V
Capacity400mAh
Discharge Rate20C - 25C (Typical for high-drain)
Connector TypeJST-PH 2.0 / Molex (Standard 2-pin)
Price
₹ 127.12 ₹ 127.12
(Tax included)

Product Description The 3.7V 400mAh Lithium-Polymer (Li-Po) battery is a high-performance, lightweight power source designed for space-constrained electronic applications. Unlike traditional cylindrical cells, this flat-pack battery offers a high energy-to-weight ratio, making it the industry standard for micro-drones (quadcopters), Bluetooth headsets, portable medical sensors, and wearable IoT devices. The integrated protection circuit (PCM) usually found in these cells helps prevent overcharging and over-discharging, ensuring a long cycle life and safe operation during high-drain maneuvers.

Key Features

  • Ultra-Lightweight: Optimized for flight and wearable applications where every gram counts.

  • High Discharge Rate: Capable of delivering high bursts of current required for micro-motors and wireless transmissions.

  • Compact Flat Profile: Easily fits into slim 3D-printed enclosures or small battery compartments.

  • Polarized Connector: Pre-fitted with a 2-pin JST-style connector for secure, solder-less installation.

  • Flexible Form Factor: Can be slightly curved or tucked into tight spaces without compromising electrical integrity.

Technical Details

  • Dimensions: Approx. 35mm x 20mm x 8mm (Varies slightly by batch)

  • Standard Charge Current: 200mA (0.5C)

  • Max Charge Voltage: 4.2V ± 0.05V

  • Discharge Cut-off: 3.0V

  • Cycle Life: 300–500 Charge/Discharge cycles

  • Weight: Approx. 9g to 11g

Prototyping and Engineering Tips from Robogears

  • USB Charging: This battery is perfectly compatible with the TP4056 Lithium Charging Module. Simply plug the JST connector into your board (or solder to the B+/B- pads) to create a USB-rechargeable device.

  • Voltage Regulation: While the nominal voltage is 3.7V, it will drop to 3.0V as it nears depletion. If you are powering an ESP32 or a 3.3V sensor, use a Low-Dropout (LDO) regulator to maintain a steady 3.3V rail.

  • Storage Charge: If you are not planning to use your drone or project for more than two weeks, store the battery at 3.8V to 3.85V (roughly 50% charge). Storing a Li-Po at 100% or 0% for long periods can cause it to "puff" or lose capacity permanently.

  • Physical Safety: Never puncture, crush, or subject a Li-Po battery to high heat. If the battery looks swollen or "puffy," discontinue use immediately and dispose of it at a designated battery recycling center.

Package Includes

  • 1 x 400mAh 3.7V Single-Cell Li-Po Rechargeable Battery

Disclaimer Images are for reference; actual wire length or connector color may vary by batch. Specifications subject to change by manufacturer. Use only dedicated Li-Po chargers. Battery not included with drones unless specified.
