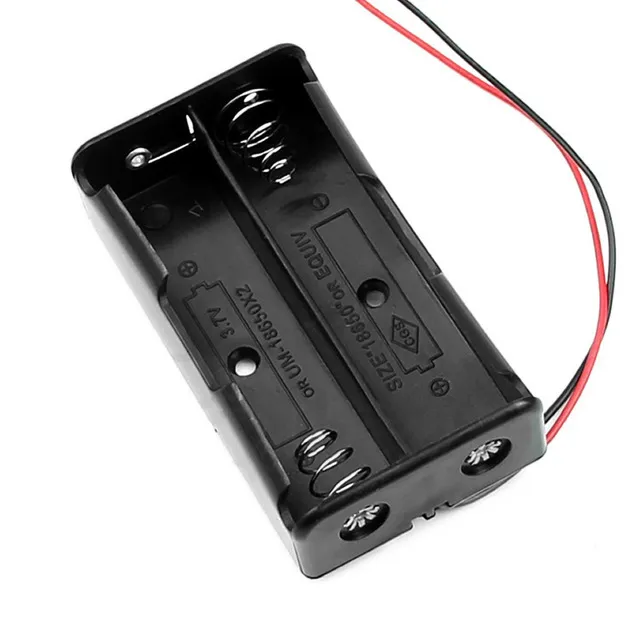

2-Cell 18650 Battery Holder Case 7.4V-8.4V Series Output for Arduino and Robotics

2-Cell 18650 Battery Holder Case 7.4V-8.4V Series Output for Arduino and Robotics

(0 review)
ComponentSpecification
Battery Type2 x 18650 Li-ion Cells (3.7V Each)
Output Voltage7.4V (Nominal) / 8.4V (Full Charge)
MaterialHigh-Impact ABS Plastic
Connection TypeSeries (Internal wiring)
ConnectorPre-soldered Red/Black Lead Wires
MountingFlat Base with Integrated Screw Holes
Price
₹ 29.66 ₹ 29.66
(Tax included)

Product Description The 2-Slot 18650 Battery Holder is a versatile power enclosure designed to hold two standard lithium-ion cells in a series configuration. This setup combines the voltage of two 3.7V cells to provide a 7.4V nominal (8.4V peak) output, making it an excellent compact power source for Arduino projects, motor drivers, and small robotic platforms. Its open-frame design ensures easy battery replacement and efficient cooling during use, while the nickel-plated springs maintain a consistent electrical contact.

Key Features

  • Series Output: Perfectly matches the input requirements for the "VIN" pin on Arduino Uno and Mega.

  • Compact Footprint: Ideal for small-scale robots and handheld DIY electronic devices.

  • Pre-wired Leads: Comes with ~15cm of color-coded wires (Red/Positive, Black/Negative) for quick soldering.

  • Secure Retention: High-tension springs keep flat-top or button-top 18650 cells firmly in place.

  • Heat Resistant: Built from durable ABS plastic that withstands the standard operating temperatures of Li-ion cells.

Technical Details

  • Dimensions: Approx. 76 x 40 x 19 mm

  • Wire Length: ~150 mm

  • Wire Gauge: 26 AWG

  • Spring Material: Nickel-plated steel

  • Color: Industrial Black

  • Weight: Approx. 15g (without batteries)

Prototyping and Engineering Tips from Robogears

  • BMS Recommendation: When using 18650 cells in series, we recommend using a 2S BMS (Battery Management System) to protect against over-discharge. Dropping below 6V (3V per cell) can significantly shorten the life of your lithium batteries.

  • Arduino Powering: 7.4V is the "sweet spot" for powering an Arduino through the DC jack. It is high enough for the onboard regulator to provide a stable 5V, but low enough to prevent the regulator from overheating.

  • Polarity Check: Always follow the polarity markings (+/-) embossed on the bottom of the plastic holder. Inserting a battery backward in a series string can cause a short circuit across the other cell.

  • Mounting Advice: Use M3 countersunk screws or double-sided foam tape to secure the holder to your chassis. If your project involves high-speed movement, consider adding a rubber band or Velcro strap over the cells for extra security.

Package Includes

  • 1 x 2-Slot 18650 Battery Holder

Disclaimer Images are for reference; actual wire gauge or plastic finish may vary by batch. Specifications subject to change by manufacturer. Do not short-circuit the output leads. Batteries are not included.
