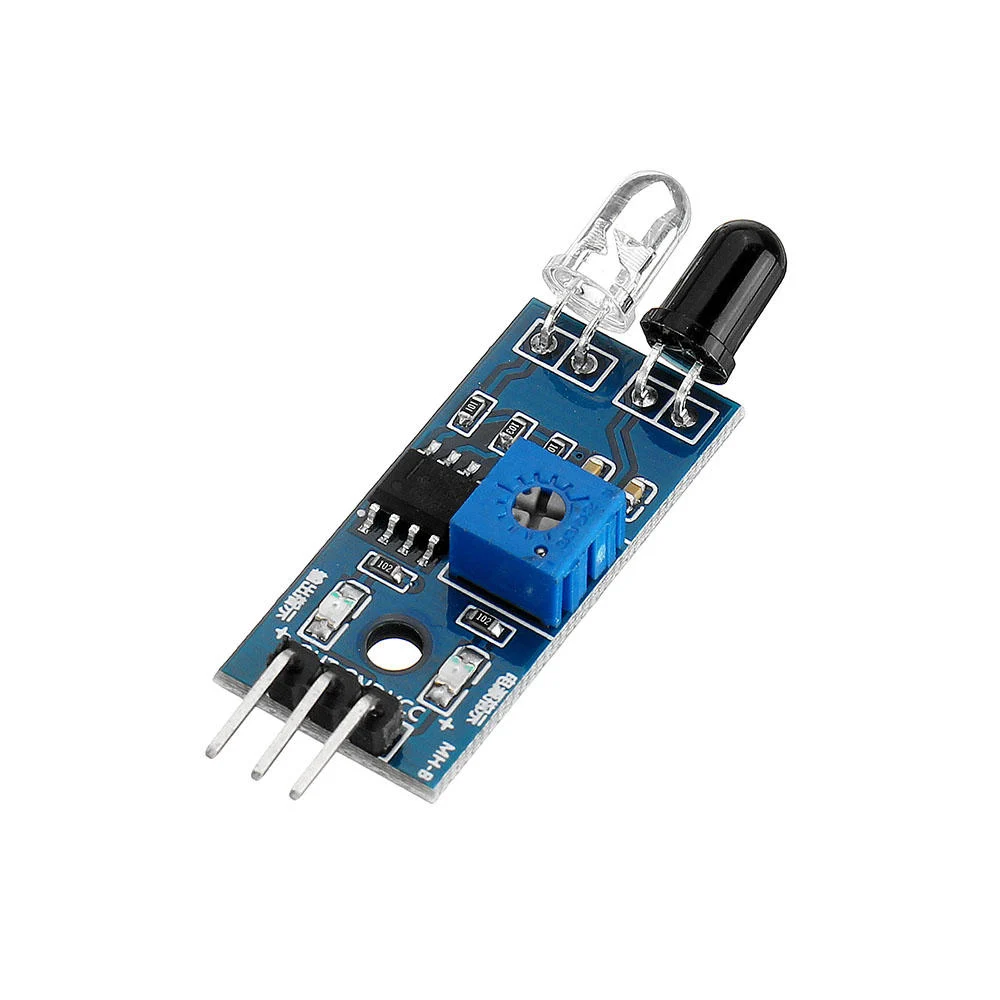

Infrared (IR) Obstacle Avoidance Sensor Module – Active Low Digital Output with Adjustable Detection Range for Arduino, Robotics, and STEM Projects

Infrared (IR) Obstacle Avoidance Sensor Module – Active Low Digital Output with Adjustable Detection Range for Arduino, Robotics, and STEM Projects

(0 review)
ParameterDetailed Specification
Operating Voltage3.3V – 5V DC
Detection Distance2cm – 30cm (Adjustable via Potentiometer)
Detection Angle35°
Output SignalDigital (Active Low: 0 when obstacle detected)
Sensor TypeInfrared Transmitter & Receiver Pair
On-board IndicatorsPower LED & Obstacle Detection LED
Dimensions31mm x 15mm
Price
₹ 29.66 ₹ 29.66
(Tax included)

Product Description

Empower your robots with sight using the Infrared (IR) Obstacle Avoidance Sensor Module. This compact, highly reliable sensor is a staple for hobbyist robotics and automated systems. At Robogears, we recommend this module for its "Active Low" logic, which makes it incredibly simple to interface with microcontrollers like Arduino, ESP32, and Raspberry Pi. The sensor works by emitting infrared light and detecting the reflection from nearby objects. Featuring an on-board potentiometer, you can precisely calibrate the detection range to suit your specific project needs—whether it’s a line-following robot or an automatic hand sanitizer dispenser at your Pimpri facility.

Detailed Key Features

  • Adjustable Sensitivity: Includes an on-board multi-turn potentiometer to fine-tune the detection distance from 2cm to 30cm, allowing for high-precision obstacle sensing.

  • Active Low Digital Output: The sensor outputs a LOW (0V) signal when an obstacle is detected and a HIGH (VCC) signal when the path is clear, simplifying your code logic.

  • Ambient Light Immunity: Designed with a specialized IR receiver that is resistant to interference from ambient indoor lighting, ensuring stable performance in various environments.

  • Dual LED Indicators: Features a red LED for power status and a second green LED that lights up instantly when an obstacle is within range, aiding in quick hardware debugging.

  • Easy Mounting: Comes with a pre-drilled 3mm screw hole, making it easy to secure onto robotic chassis, 3D-printed brackets, or breadboard setups.

All Technical Details

  • Interface Pins: 3-pin header (VCC, GND, OUT) for universal compatibility with standard jumper wires.

  • Current Consumption: Low power draw (approx. 20mA), making it ideal for battery-powered portable electronics.

  • Logic Level: Compatible with both 3.3V and 5V logic systems, eliminating the need for external level shifters.

  • Applications: Obstacle avoidance robots, object counters, touchless switches, and security alarm systems.

Prototyping & Engineering Tips (Robogears Exclusive)

  • Calibration Secret: At your Pimpri workshop, always calibrate the sensor using the specific material it will be detecting. Black surfaces absorb IR light and will significantly reduce the detection range, while white or reflective surfaces will increase it.

  • Sunlight Warning: While the sensor has ambient light immunity, direct sunlight contains heavy IR radiation that can "blind" the sensor. For outdoor robotics, we suggest adding a small 3D-printed shroud or "eyelid" over the sensor to block top-down light.

  • Pin Safety: Ensure your VCC and GND connections are correct. Reversing the polarity can permanently damage the on-board LM393 comparator chip.

  • Code Optimization: Since the output is Active Low, use the digitalRead() == LOW condition in your Arduino code to trigger your obstacle avoidance maneuvers.

Package Includes

  • 1 x Infrared (IR) Obstacle Avoidance Sensor Module

Image Disclaimer

Product images are shown for illustrative purposes only. The color of the PCB (typically blue or black) or the style of the IR LEDs (clear vs. dark) may vary slightly between manufacturing batches, but the Active Low digital performance and adjustable detection range remain as described.
