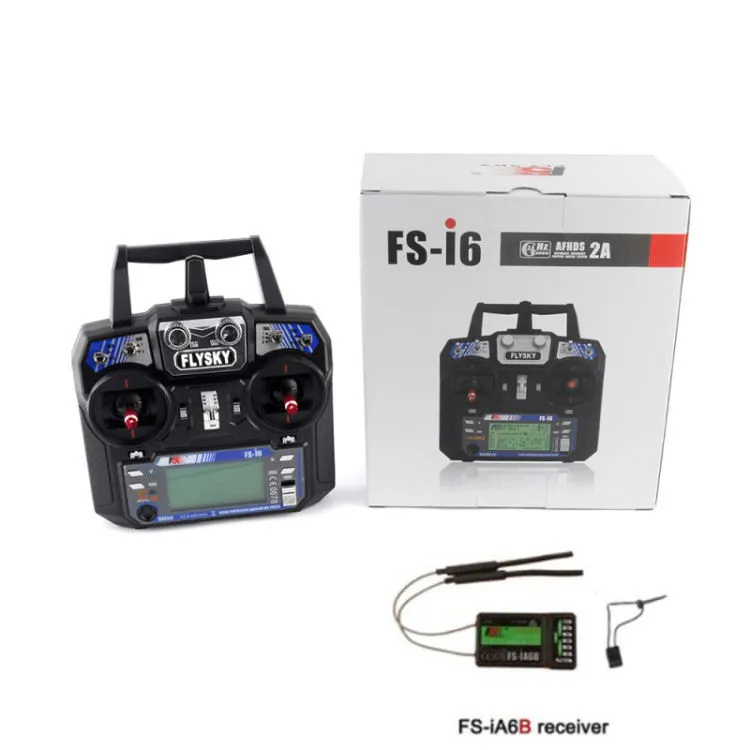

FlySky FS-i6 2.4G 6CH PPM RC Transmitter With FS-iA6B Receiver

FlySky FS-i6 2.4G 6CH PPM RC Transmitter With FS-iA6B Receiver

(0 review)
SpecificationDetails
Channels6 Channels (Upgradable to 10 via firmware)
RF Range2.4055 - 2.475 GHz
Bandwidth500 KHz
ProtocolAFHDS 2A / AFHDS
ReceiverFS-iA6B (PPM/i-Bus/PWM Support)
Display128 x 64 Pixel LCD with Backlight
Power6V DC (4 x AA Batteries)
Model Memory20 Models
Price
₹ 4,915.25 ₹ 4,915.25
(Tax included)

Barcode: 8372

Product Description

The FS-i6 features a slim, ergonomic design and a backlit LCD screen for easy programming. It supports a 20-model memory, allowing you to use one radio for your entire fleet. The included FS-iA6B receiver is telemetry-capable, meaning it can send real-time data like battery voltage and signal strength back to the transmitter screen when used with optional sensors.

Key Features

  • AFHDS 2A Protocol: Offers superior protection against interference while maintaining a long-range, reliable link.

  • Dual-Way Communication: Capable of sending and receiving data, allowing for real-time telemetry monitoring of your aircraft's vitals.

  • Multi-Channel Hopping: Automatically hops between 135 channels to find the clearest frequency, ensuring a stable connection even in crowded RC fields.

  • Low Power Consumption: Uses high-sensitivity components and a low-power-consumption chip, significantly extending the life of the 4 AA batteries.

  • Versatile Receiver: The FS-iA6B supports PWM, PPM, and i-Bus, allowing for single-wire connection to flight controllers for a cleaner build.

Technical Details

  • Transmitter Weight: ~392g.

  • Display: 128 x 64 dot matrix STN reflective display with backlight.

  • Antenna Length: 26mm x 2 (dual antenna system).

Prototyping and Engineering Tips from Robogears

  • Firmware Upgrades: The FS-i6 is a "community favorite." There are custom firmware hacks available online that can expand this transmitter from 6 channels to 10 channels without any hardware changes.

  • Receiver Binding: To bind, insert the Bind Plug into the B/VCC port of the receiver, power the receiver, then hold the "Bind Key" on the transmitter while turning it on. Remove the plug once the LED stops flashing.

  • Failsafe Setup: Always configure your Failsafe settings in the transmitter menu. In the event of a signal loss, you want the throttle to drop to 0% to prevent the model from flying away.

  • PPM for Drones: If you are using a flight controller (like a Betaflight or INAV board), use the PPM or i-Bus output from the FS-iA6B. This reduces wiring to just three wires (Power, Ground, Signal) instead of six separate PWM cables.

Package Includes

  • 1 x FlySky FS-i6 Transmitter

  • 1 x FlySky FS-iA6B Receiver

  • 1 x Bind Plug

Disclaimer

Batteries are not included. Use high-quality Alkaline or NiMH rechargeable AA batteries for the best range and performance.
