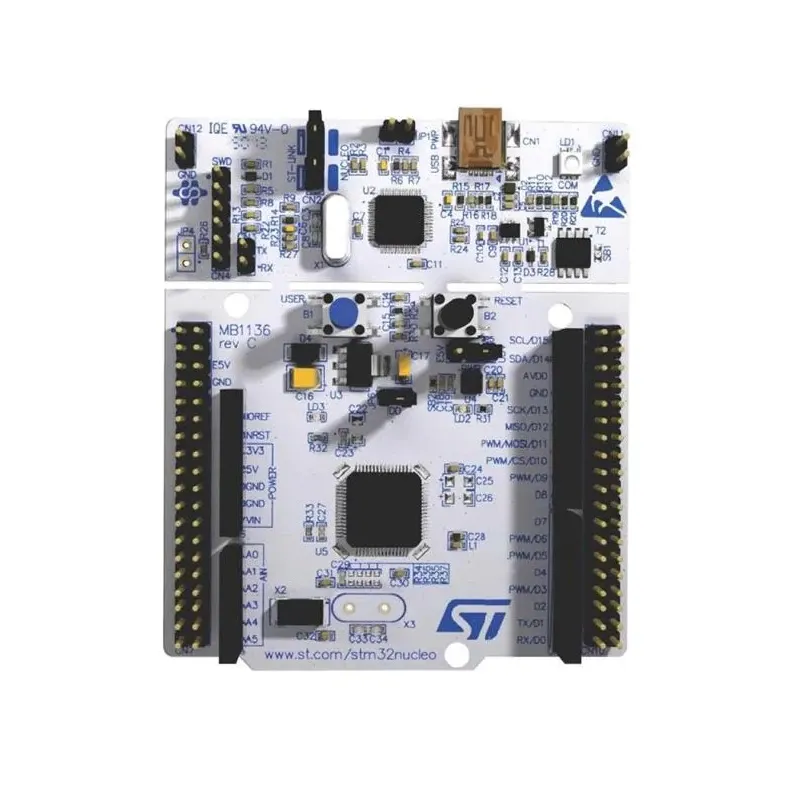

STM32 Nucleo-64 Development Board NUCLEO-F446RE – High-Performance STM32F446RE MCU, Arduino Uno V3 Connectivity, and Integrated ST-LINK Debugger/Programmer

STM32 Nucleo-64 Development Board NUCLEO-F446RE – High-Performance STM32F446RE MCU, Arduino Uno V3 Connectivity, and Integrated ST-LINK Debugger/Programmer

(0 review)
ParameterDetailed Specification
MicrocontrollerSTM32F446RET6 (ARM® Cortex®-M4 with FPU)
Clock SpeedUp to 180 MHz
Flash Memory512 KB
SRAM128 KB
ConnectivityArduino Uno V3 and ST Morpho Headers
On-board DebuggerST-LINK/V2-1 (with SWD connector)
Power SupplyUSB VBUS or External (3.3V, 5V, 7V-12V)
I/O Pins64-pin package with full access to GPIOs
Price
₹ 1,766.95 ₹ 1,766.95
(Tax included)

Product Description

The STM32 Nucleo-64 NUCLEO-F446RE is a highly flexible and affordable development platform for engineers and advanced hobbyists. Powered by the high-performance STM32F446RE MCU, it features an ARM Cortex-M4 core with a Floating Point Unit (FPU) running at a blistering 180 MHz. At Robogears, we recommend the Nucleo series for professional prototyping because it offers a "bridge" between the hobbyist and industrial worlds. The board supports the Arduino Uno V3 connectivity standards, allowing you to use your existing shields, while the ST Morpho headers provide full access to all available I/Os for complex industrial designs in your Pimpri facility.

Detailed Key Features

  • High-Performance ARM Core: The Cortex-M4 core includes DSP instructions and an FPU, making it ideal for real-time signal processing, motor control, and audio applications.

  • Integrated ST-LINK/V2-1: No need for an external programmer. The board includes a built-in debugger that can also be used to program other STM32 microcontrollers via the SWD connector.

  • Triple Interface Support: The USB interface supports three different functions: Virtual COM port, mass storage (drag-and-drop programming), and debug port.

  • Vast Expansion Options: Compatible with a wide range of specialized shields through Arduino Uno V3 headers and all STM32 I/Os via ST Morpho headers.

  • Comprehensive Software Support: Fully supported by major Integrated Development Environments (IDEs) including STM32CubeIDE, Keil MDK, and IAR Workbench.

All Technical Details

  • Timers: 2x 32-bit timers, up to 12x 16-bit timers (up to 180 MHz).

  • Communication: 4x UART, 2x CAN, 3x $I^2C$, 4x SPI, and USB 2.0 OTG FS.

  • Analog Performance: 3x 12-bit ADCs (up to 24 channels) and 2x 12-bit DACs.

  • On-board LEDs: Three LEDs for USB communication, Power, and User (LD2).

  • Push-Buttons: Two buttons—User and Reset.

Prototyping & Engineering Tips (Robogears Exclusive)

  • Drag-and-Drop Programming: One of the best features for fast iterations at your Pimpri workshop—simply compile your code to a .bin or .hex file and drag it into the "NODE_F446RE" drive that appears when the board is plugged in.

  • Power Jumper (JP5): Ensure the jumper on JP5 is set correctly based on your power source (U5V for USB power or E5V for external power). Incorrect jumper placement is the most common reason for "Dead Board" symptoms.

  • Current Consumption: While the F446RE is powerful, it can draw significant current at 180 MHz. If you are driving multiple external modules, use a regulated 7V-12V supply via the VIN pin rather than relying solely on USB power.

  • Virtual COM Port: The ST-LINK automatically provides a Serial-to-USB bridge. Use a terminal program (like Putty or TeraTerm) at a baud rate of 115200 to see printf debug messages from your code.

Package Includes

  • 1 x STM32 Nucleo-64 Development Board (NUCLEO-F446RE)

Image Disclaimer

Image shown is for illustrative purposes only; the actual product may vary slightly in PCB revision or silkscreen markings due to manufacturing updates from STMicroelectronics, though all technical specifications will remain as described.
