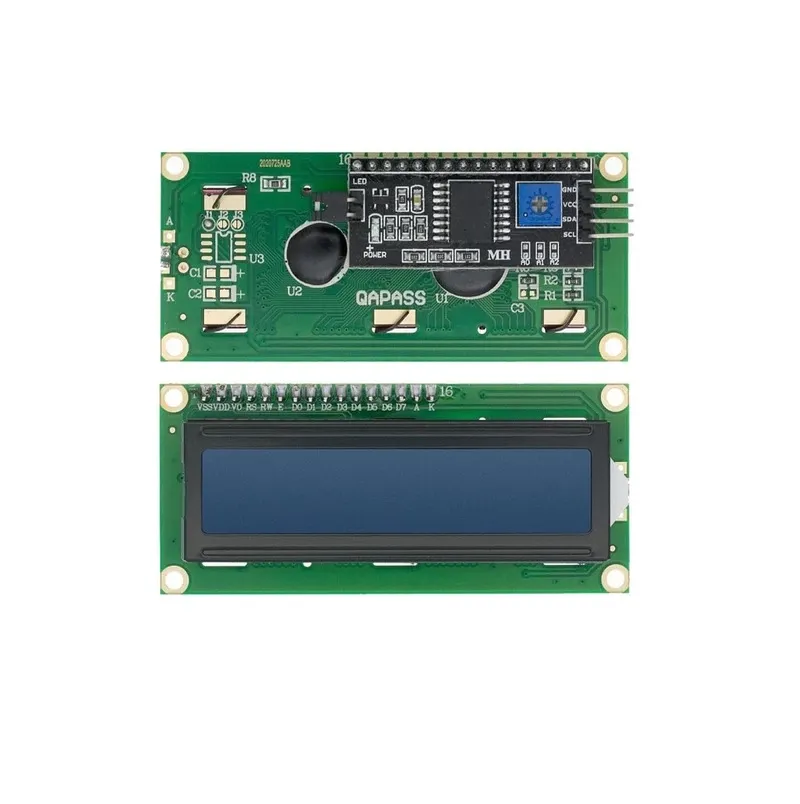

1602 (16x2) LCD Display with I2C/IIC interface for Arduino and ESP32

1602 (16x2) LCD Display with I2C/IIC interface for Arduino and ESP32

(0 review)
ComponentDisplay FormatInterfaceBacklightSupply VoltageContrast Adj.I2C Address
Value16 Characters x 2 LinesI2C (Serial)Blue / White Text5V DCOnboard Pot0x27 or 0x3F
ComponentLCD ControllerI2C ControllerWorking TempLogic LevelWeightDimensions
ValueHD44780PCF8574-20°C to +70°C5V (3.3V compatible)35 grams80 x 36 x 15 mm
Price
₹ 161.02 ₹ 161.02
(Tax included)

Product Description The 1602 LCD with I2C Interface is a 16-character by 2-line alphanumeric display that significantly simplifies the wiring process for your microcontroller projects. By integrating a PCF8574 I2C adapter on the back, the display reduces the required connection pins from 16 down to just 4 (VCC, GND, SDA, and SCL). It features a vibrant blue backlight with high-contrast white text, making it perfect for displaying sensor data, system status, or user menus in robotics and automation systems.

5V 4010 Blue Led Cooling Fan 40 x 40 x10MM₹168.00Opens in a new window

Key Features

  • 4-Wire Connectivity: Uses the I2C serial bus to save valuable I/O pins on your Arduino or ESP32 for other sensors and actuators.

  • Onboard Contrast Control: Includes a built-in blue potentiometer on the I2C backpack for quick and easy screen clarity adjustments.

  • Software Controllable Backlight: The backlight can be toggled on or off via code to save power in battery-operated applications.

  • Plug-and-Play Compatibility: Supported by the widely used LiquidCrystal_I2C library, allowing for quick setup and custom character support.

  • Pre-Soldered Header: Comes with the I2C daughterboard already soldered to the LCD, eliminating the need for complex manual wiring.

Technical Details

  • Display Technology: STN (Super-Twisted Nematic) Blue Negative Transflective LCD.

  • Resolution: 16 columns and 2 rows, capable of displaying up to 32 characters simultaneously.

  • I2C Adapter IC: PCF8574 allows for up to 8 similar displays on the same bus by changing the address jumpers (A0, A1, A2).

  • Current Consumption: Typically 1.2mA without backlight and up to 40mA with the backlight fully powered.

  • Character Matrix: Each character is formed by a 5x8 pixel dot matrix for clear alphanumeric rendering.

  • Duty Cycle: 1/16 duty and 1/5 bias for optimal pixel response and contrast.

  • Logic Compatibility: While designed for 5V, the I2C interface often works with 3.3V logic (ESP32/Raspberry Pi) as long as the VCC is 5V.

  • Viewing Angle: Wide 6 o'clock viewing angle ensures visibility from various mounting positions.

  • Operating Frequency: Internal oscillator frequency of 270kHz for rapid screen updates.

  • Instruction Set: Fully compatible with the standard Hitachi HD44780 instruction set.

  • Reliability: Rated for over 50,000 hours of backlight life under normal operating conditions.

  • Mounting: Features four 3mm mounting holes at the corners for secure installation into enclosures.

  • Communication Speed: Supports Standard Mode I2C (100 kbit/s) communication.

  • Internal Buffer: Includes DDRAM (Display Data RAM) and CGROM (Character Generator ROM) for standard ASCII characters.

  • User-Defined Characters: Allows for up to 8 custom-designed icons or symbols (CGRAM).

Prototyping and Engineering Tips from Robogears

  • 9V Battery Use: The LCD requires a stable 5V. Do not connect a 9V battery directly to the VCC pin. Use the 5V output pin of your Arduino. If the screen is blank, adjust the blue potentiometer on the back to fix the contrast.

  • 18650 Cell: A single 18650 cell (3.7V) might be too low to power the backlight effectively. Use two 18650s in series (7.4V) with a 7805 voltage regulator or a Buck Converter to provide the 5V needed for a bright display.

  • IC & Capacitor Tip: I2C communication is sensitive to noise. If you see "garbage" characters on the screen, add a 0.1uF Ceramic Capacitor between VCC and GND close to the display. Always ensure your I2C address is correct—most modules use 0x27 or 0x3F.

  • Related Products: We recommend pairing this with our Arduino Uno R3, Jumper Wire Kits, and DHT11 Temperature Sensors.

Package Includes

  • 1 x 1602 LCD Display with Pre-Soldered I2C Interface.

Disclaimer Image is for ilastration purpose only 2-3 lines. Adjust the onboard potentiometer if the text is not visible upon first power-up. Ensure the I2C address in your code matches the specific module hardware.
