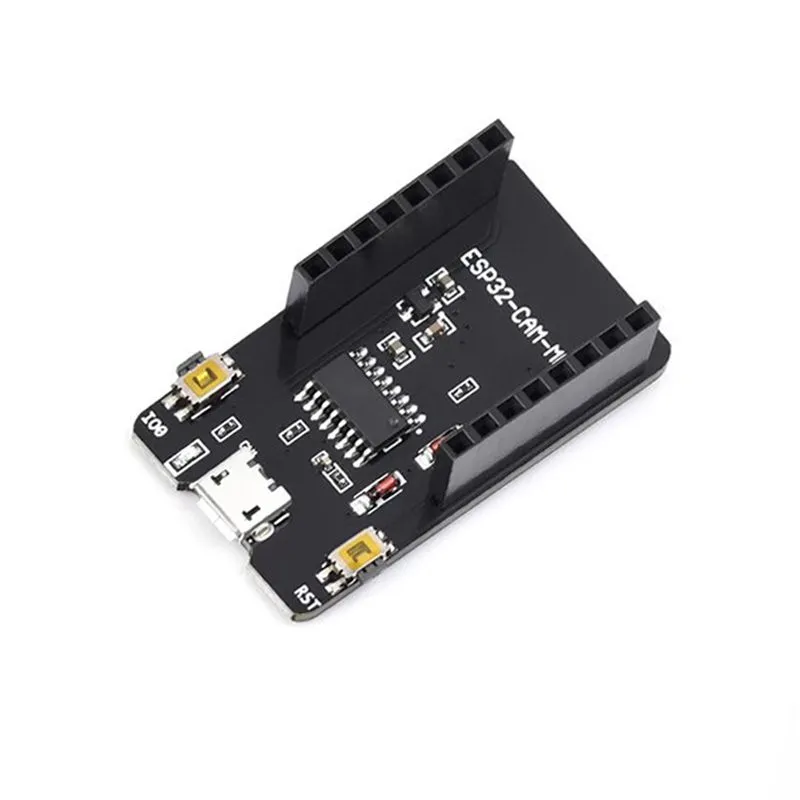

ESP32-CAM-MB USB Programmer Adapter Shield with CH340G

ESP32-CAM-MB USB Programmer Adapter Shield with CH340G

(0 review)
SpecificationDetails
USB ControllerCH340G USB-to-Serial IC
Operating Voltage5V (via Micro USB)
InterfaceFemale Headers (Matches ESP32-CAM Pinout)
Baud RateSupports up to 115200 bps
Onboard ButtonsReset (RST) and Boot (IO0)
Dimensions40mm x 27mm
Price
₹ 110.17 ₹ 110.17
(Tax included)

Product Description

The ESP32-CAM-MB is more than just a power source; it is a full communication bridge. It features a dual-layer female header design where the ESP32-CAM module sits securely on top. The shield includes integrated Auto-Program circuitry, which automatically toggles the GPIO0 and Reset pins to put the ESP32 into "Download Mode" during an upload from the Arduino IDE or Espressif IDF. This removes the need for the tedious "press and hold" button sequences or external "BOOT" jumpers.

Key Features

  • Seamless Programming: Converts the ESP32-CAM into a standard development board with a single Micro USB cable connection.

  • Integrated CH340G IC: Reliable USB-to-TTL conversion compatible with Windows, macOS, and Linux (drivers required).

  • Dual Button Control: Includes physical Reset and IO0 (Boot) buttons for manual intervention or testing during the development phase.

  • Stable Power Delivery: The shield provides regulated 5V power to the ESP32-CAM, ensuring the camera and Wi-Fi radio have sufficient current to operate without crashing.

  • Compact Footprint: Matches the dimensions of the ESP32-CAM, making the combined stack small enough for portable IoT camera prototypes.

Technical Details

  • Connector Type: Micro USB.

  • LED Indicator: Onboard power LED to confirm the 5V rail is active.

  • Protection: Includes a basic voltage regulator to stabilize the incoming USB power.

Prototyping and Engineering Tips from Robogears

  • Driver Installation: If your computer does not recognize the device as a "COM Port," you must install the CH340G drivers. These are standard for many budget-friendly Arduino clones and are widely available online.

  • The "Brown-Out" Fix: ESP32-CAM modules are notorious for power spikes when using Wi-Fi or the Flash LED. If your module keeps rebooting, ensure you are using a High-Quality USB Cable connected directly to a PC port (avoid unpowered USB hubs), as thin cables can cause a voltage drop.

  • Serial Monitor Tip: If you see "garbage" or scrambled text in your Serial Monitor, ensure your baud rate is set to 115200. This is the default speed for most ESP32 bootloaders and firmware examples.

  • Stacking Orientation: Before powering on, double-check that the ESP32-CAM's antenna is pointing away from the Micro USB port. Mounting it backwards can cause a short circuit or prevent the programming pins from aligning correctly.

Package Includes

  • 1 x ESP32-CAM-MB Micro USB Programmer Shield

Disclaimer

This shield is designed specifically for the standard ESP32-CAM pinout. Always ensure the ESP32-CAM module is fully seated in the headers before plugging in the USB cable to avoid intermittent connection issues during flashing.
