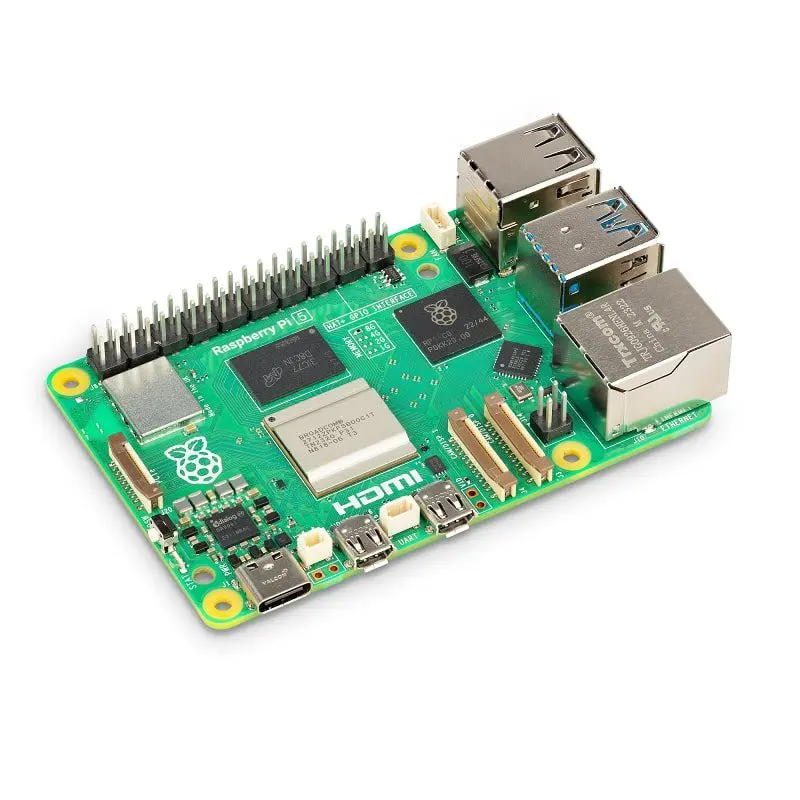

Raspberry Pi 5 (8GB RAM) – Flagship 2.4GHz Quad-Core 64-bit Single Board Computer (SBC) with Dual 4K Display, PCIe 2.0, and Enhanced I/O Performance

Raspberry Pi 5 (8GB RAM) – Flagship 2.4GHz Quad-Core 64-bit Single Board Computer (SBC) with Dual 4K Display, PCIe 2.0, and Enhanced I/O Performance

(0 review)
ParameterDetailed Specification
ProcessorBroadcom BCM2712, 2.4GHz Quad-core 64-bit ARM Cortex-A76
RAM8GB LPDDR4X-4267 SDRAM
GraphicsVideoCore VII GPU @ 800MHz (OpenGL ES 3.1, Vulkan 1.2)
Video OutputDual 4K@60fps Micro-HDMI with HDR support
Wireless2.4GHz & 5.0GHz Dual-band WiFi, Bluetooth 5.0, BLE
Peripheral ControllerIn-house "RP1" Southbridge for optimized I/O
Price
₹ 7,118.64 ₹ 7,118.64
(Tax included)

Product Description

The Raspberry Pi 5 represents the most significant leap in performance in the history of Single Board Computers. Powered by a 2.4GHz quad-core ARM Cortex-A76 processor, this 8GB flagship model delivers 2–3x the speed of the Raspberry Pi 4. For the first time, it introduces an in-house developed silicon "RP1" controller to manage I/O, a dedicated PCIe 2.0 interface, and a built-in real-time clock (RTC). Whether you are powering AI-driven robotics, high-end server clusters, or a dual-4K desktop workstation at your Pimpri facility, the Raspberry Pi 5 provides unprecedented power in a credit-card-sized form factor.

Detailed Key Features

  • Unmatched Processing Power: The Cortex-A76 architecture ensures lightning-fast execution for machine learning, complex data processing, and heavy multitasking.

  • PCI Express 2.0 Interface: A first for the Pi series, the single-lane PCIe 2.0 connector allows for high-speed connection to NVMe SSDs and other high-bandwidth peripherals.

  • Superior Graphics Performance: The 800MHz VideoCore VII GPU supports dual 4K60 displays and high-performance hardware video decoding.

  • Enhanced Camera/Display Support: Features two 4-lane MIPI transceivers that are compatible with both CSI (Camera) and DSI (Display) cables.

  • Smart Power & Cooling Logic: Includes a dedicated Fan header and a Power Button, along with an RTC header for time-critical battery-backed operations.

All Technical Details

  • USB Ports: 2x USB 3.0 ports (supporting simultaneous 5Gbps) and 2x USB 2.0 ports.

  • Ethernet: Gigabit Ethernet with PoE+ support (requires separate PoE+ HAT).

  • Storage: High-speed microSD card slot with SDR104 mode support.

  • GPIO: Standard 40-pin header for full project compatibility.

  • Power Input: 5V/5A DC via USB-C (Supports Power Delivery).

  • Clocking: Includes dedicated UART and RTC battery ports for professional debugging and timing.

Prototyping & Engineering Tips (Robogears Exclusive)

  • Active Cooling is Mandatory: Unlike previous models, the Pi 5's high-performance SoC generates significant heat. We strongly recommend the Official Active Cooler or a high-performance heatsink/fan combo to avoid thermal throttling.

  • Power Requirements: For full peripheral functionality (like high-power USB devices), use a 5V 5A (25W) USB-C PD power supply. Using a standard 3A supply will limit USB current to 600mA.

  • PCIe Expansion: To connect an NVMe SSD, you will need a specialized "PCIe to M.2 HAT." This setup provides significantly faster boot and read/write speeds than a MicroSD card.

  • Ribbon Cable Compatibility: The camera/display ports (MIPI) on the Pi 5 use a higher-density 22-way 0.5mm pitch connector. You will need "Pi 5 specific" adapter cables to connect standard 15-way CSI/DSI accessories.

Package Includes

  • 1 x Raspberry Pi 5 Model B (8GB RAM variant)

Image Disclaimer

Image shown is for illustrative purposes only; the actual product may vary slightly in design, color, or component layout due to manufacturing updates, though all technical specifications will remain as described.
