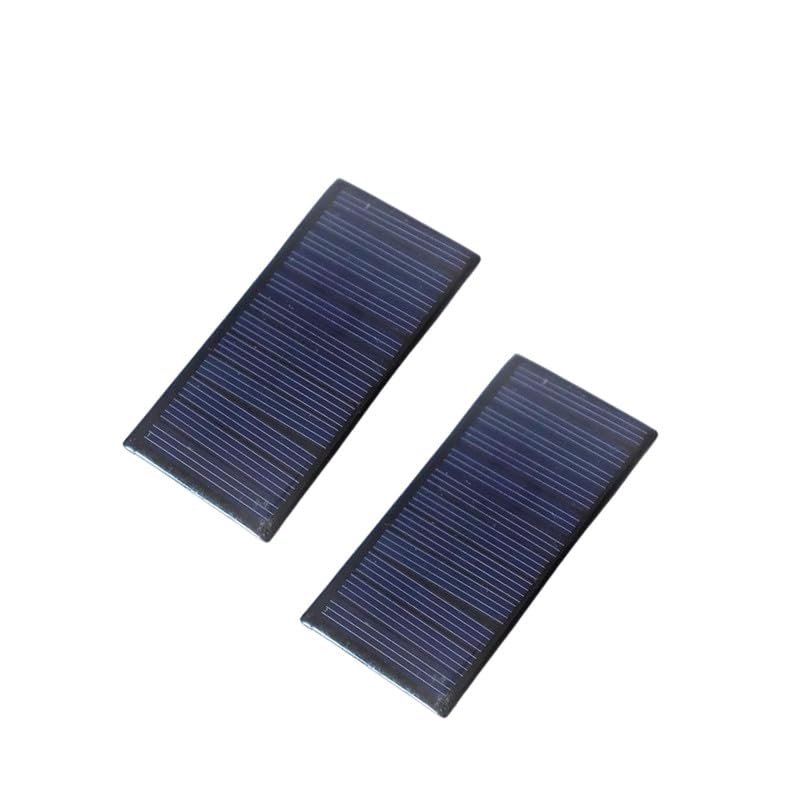

Mini Solar Panel (80x40mm, 6V, 60mA)

Mini Solar Panel (80x40mm, 6V, 60mA)

(0 review)
SpecificationDetails
Output Voltage6V (Nominal)
Output Current60mA (Max)
Dimensions80mm x 40mm x 3mm
MaterialPolycrystalline Silicon / Epoxy Resin
Peak Power~0.36W
Open Circuit Voltage6.5V to 7.2V
Short Circuit Current65mA to 70mA
Price
₹ 42.37 ₹ 42.37
(Tax included)

Product Description

The 6V 60mA Solar Module is engineered for simplicity and portability. It utilizes polycrystalline cells protected by a hardened epoxy coating that is both weather-resistant and impact-resistant. This module is ideal for powering small DC motors, LEDs, or charging 3.7V Li-ion batteries (when used with a charging controller). The rear of the panel features solder pads for easy wire attachment, allowing for quick integration into robotics or environmental monitoring systems.

Key Features

  • High Conversion Efficiency: Optimized for performance even in moderate sunlight conditions.

  • Ultra-Compact Form Factor: The thin 3mm profile and small footprint make it easy to mount on 3D-printed brackets or small enclosures.

  • Maintenance-Free: No moving parts or complex setup required—just expose to direct sunlight to begin power generation.

  • Robust Protection: The epoxy resin encapsulation prevents moisture ingress and protects the delicate solar cells from oxidation.

  • DIY Friendly: Pre-marked polarity on the solder pads ensures error-free wiring for beginners and students.

Technical Details

  • Connection: Solder pads (Positive/Negative).

  • Weight: Approx. 15–20 grams.

  • Surface Finish: High-transparency epoxy for maximum light absorption.

Prototyping and Engineering Tips from Robogears

  • The Blocking Diode: When using this panel to charge a battery, always place a 1N4007 diode in series with the positive lead. This prevents the battery from discharging back through the solar panel at night, which can damage the cells and drain your power.

  • Parallel vs. Series: If you need more current (e.g., 120mA), wire two of these panels in parallel. If you need more voltage (e.g., 12V), wire them in series. Note that adding panels will increase the total surface area required.

  • Angle of Incidence: For maximum power output, ensure the panel is perpendicular to the sun. In India, a fixed tilt of roughly 20–30 degrees facing South is generally effective for year-round performance.

  • Cloudy Day Performance: Polycrystalline panels perform better than monocrystalline ones in slightly diffused light (overcast days), but the output will still drop significantly. Always design your circuit to operate on the "minimum" expected current rather than the peak 60mA.

Package Includes

  • 1 x 80x40mm 6V 60mA Mini Solar Panel

Disclaimer

Actual output depends entirely on the intensity of sunlight and geographic location. Do not short-circuit the leads for extended periods under high-intensity light as it may cause localized overheating.
