Tiny RTC Real Time Clock DS1307 I2C IIC Module for Arduino

Tiny RTC Real Time Clock DS1307 I2C IIC Module for Arduino

(0 review)
SpecificationDetails
RTC ChipsetDS1307
CommunicationI2C (Inter-Integrated Circuit)
Operating VoltageDC 4.5V – 5.5V
Backup BatteryLIR2032 (Rechargeable) / CR2032
Onboard EEPROMAT24C32 (32K bits / 4KB)
Temperature SensorDS18B20 (Footprint available)
Time Format24-hour or 12-hour (AM/PM)
PCB Dimensions28mm x 25mm x 8mm
Price
₹ 50.85 ₹ 50.85
(Tax included)

Barcode: 88811250

Product Description

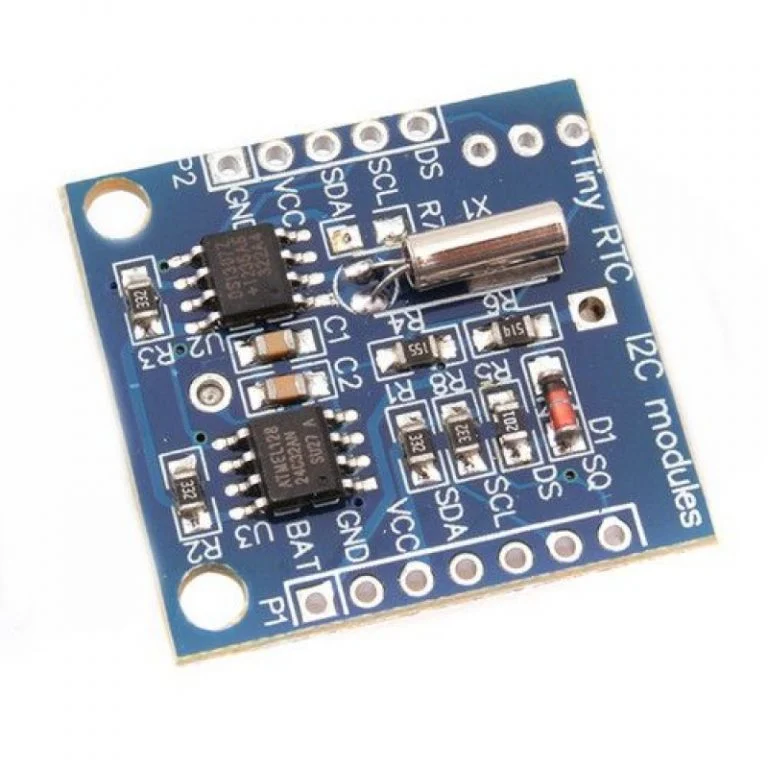

The Tiny RTC DS1307 is more than just a clock; it is a multi-functional peripheral for embedded systems. It utilizes the DS1307 IC, which accounts for leap years up to the year 2100. The module includes a dedicated 32.768kHz crystal oscillator for precise timing and a battery holder on the underside to ensure the clock never resets during power failures. Additionally, it features the AT24C32 EEPROM chip, providing 4KB of non-volatile storage to save system settings or log event timestamps. Its standard 0.1" pitch headers make it easy to mount on breadboards or integrate into custom PCBs.

Key Features

  • Complete Timekeeping: Tracks time and date with automatic adjustment for months with fewer than 31 days.

  • Dual I2C Addresses: Supports independent communication with the RTC (0x68) and the EEPROM (0x50).

  • Battery Backup: Maintains time for years on a single coin cell battery.

  • Onboard Storage: Includes 32K bits of EEPROM for saving configuration data or logs.

  • Expandable Design: Features a dedicated footprint for adding a DS18B20 digital temperature sensor.

  • Programmable Wave: Provides a square-wave output signal for external interrupts or timing pulses.

Technical Details

  • Pinout (P1): DS (Temp Sensor Output), SCL (Clock), SDA (Data), VCC (5V), GND.

  • Pinout (P2): SQ (Square Wave), DS, SCL, SDA, VCC, GND, BAT (Direct Battery Output).

  • Backup Circuit: Includes a basic charging circuit for LIR2032 rechargeable batteries.

Prototyping and Engineering Tips from Robogears

  • I2C Pull-up Resistors: This module usually comes with onboard 4.7kΩ pull-up resistors for the SDA and SCL lines. If you are connecting multiple I2C devices on the same bus, ensure the total resistance doesn't drop too low, which can cause communication errors.

  • Battery Considerations: The module is designed for the LIR2032 (rechargeable) battery. If you use a standard CR2032 (non-rechargeable), it is recommended to disable the onboard charging circuit (by removing a specific resistor/diode) to prevent the battery from leaking or swelling over time.

  • The "First Run" Code: When you first power the module, the DS1307 oscillator is often disabled by default. You must run a "Set Time" sketch in your Arduino IDE once to initialize the clock and start the oscillator; otherwise, the time will remain static at "00:00:00".

Package Includes

  • 1 x Tiny RTC Real Time Clock DS1307 Module (Battery not included)

Disclaimer

This module requires a stable 5V supply for accurate time sensing. Avoid exposing the crystal oscillator to excessive vibration or extreme temperature fluctuations, as this can cause the clock to "drift" (gain or lose seconds over time). Ensure correct I2C wiring to avoid bus conflicts.
