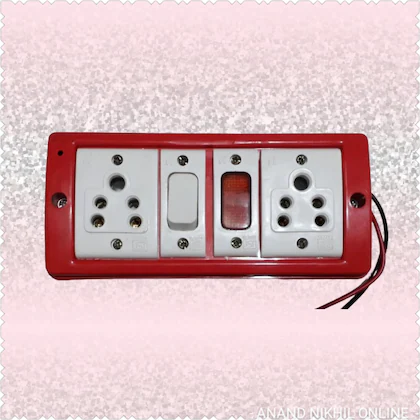

12V-24V DC to 220V AC Inverter - 40W/60W Gang Box Converter

12V-24V DC to 220V AC Inverter - 40W/60W Gang Box Converter

(0 review)
SpecificationDetails
Input Voltage12V to 24V DC
Power Rating40W to 60W (Peak)
EnclosurePVC Gang Box
Input InterfaceDC Wire Leads
CoolingPassive Venting
ProtectionBasic Fuse/Polarity
Price
₹ 271.19 ₹ 271.19
(Tax included)

Barcode: 8881818

Product Description

The 12V/24V DC to 220V AC Converter is a compact, portable power inverter housed in a familiar, durable PVC gang box enclosure. Designed for low-power applications, this device allows you to run standard 220V AC equipment—such as LED bulbs, mobile chargers, and small soldering irons—directly from a DC battery source. Its dual-input compatibility makes it versatile for use with 12V car batteries or 24V truck/solar battery systems. The integrated AC socket provides a plug-and-play solution for bringing mains-level power to remote locations, field-testing sites, or emergency backup setups.


Key Features

  • Dual Voltage Input: Seamlessly accepts both 12V and 24V DC inputs, providing flexibility across different battery environments without requiring manual switching.

  • Compact Gang Box Design: Housed in a standard electrical gang box for high impact resistance, easy mounting, and a professional, "electrician-friendly" look.

  • Low Power Efficiency: Optimized for 40W–60W loads, ensuring minimal idle current draw and extending the runtime of your input battery.

  • Universal AC Socket: Features a built-in socket compatible with standard Indian 2-pin and 3-pin plugs for immediate connectivity.

  • Portable & Lightweight: Small enough to fit in a toolkit, making it ideal for field service engineers and outdoor hobbyists.

Technical Details

  • Enclosure: Standard 4x4 or similar PVC electrical box.

  • Portability: Lightweight design for easy transport in field kits.

  • Compatibility: Best suited for resistive loads and small SMPS-based chargers.

Prototyping and Engineering Tips from Robogears

  • Load Matching: This converter is designed for Resistive Loads (LED bulbs, small chargers). Avoid using it with Inductive Loads like ceiling fans or large motors, as the modified square wave and wattage limit may cause the motor to hum or the inverter to overheat.

  • Input Wire Gauge: Even at 60W, the input current from a 12V battery can reach 5–6 Amps. Ensure your DC input wires are at least 1.0 sq mm to 1.5 sq mm to prevent voltage drops and wire heating.

  • Battery Discharge Safety: Most simple converters do not have a "Low Battery Cutoff." If you leave a device plugged in, it may drain your battery below the point of recovery. Always monitor your source battery voltage.

  • Heat Dissipation: If running at the maximum 60W limit for extended periods, ensure the box is in a well-ventilated area. While PVC is tough, internal components last longer when kept cool.

Package Includes

  • 1 x 12V/24V DC to 220V AC Converter in Gang Box Enclosure

Disclaimer: This device generates high-voltage 220V AC which can be lethal. Do not open the enclosure while connected to a battery. Not suitable for medical equipment or high-precision laboratory instruments. Ensure the total load does not exceed 60 Watts.
