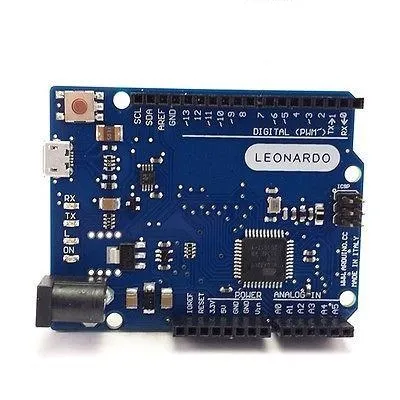

Leonardo R3 Development Board with Micro USB – ATmega32U4 Microcontroller, Fully Compatible with Arduino, Built-in USB Communication for HID Emulation

Leonardo R3 Development Board with Micro USB – ATmega32U4 Microcontroller, Fully Compatible with Arduino, Built-in USB Communication for HID Emulation

(0 review)
ParameterDetailed Specification
MicrocontrollerATmega32U4
Operating Voltage5V
Input Voltage (Recommended)7V – 12V
Digital I/O Pins20
PWM Channels7
Analog Input Channels12
Flash Memory32 KB (ATmega32U4) of which 4 KB used by bootloader
SRAM / EEPROM2.5 KB / 1 KB
Clock Speed16 MHz
USB InterfaceMicro USB (Built-in)
Price
₹ 466.10 ₹ 466.10
(Tax included)

Product Description

Unlock advanced USB functionality with the Leonardo R3 Development Board. Unlike the standard Uno, the Leonardo features the ATmega32U4 microcontroller, which has built-in USB communication. This eliminates the need for a secondary processor and allows the Leonardo to appear to a connected computer as a mouse or keyboard, in addition to a virtual (CDC) serial/COM port. At Robogears, we recommend the Leonardo R3 for projects requiring Human Interface Device (HID) emulation, such as custom gaming controllers or automation macros. The board uses a convenient Micro USB connector and maintains the standard Arduino R3 pinout, ensuring compatibility with most existing shields and accessories.

Detailed Key Features

  • Native USB Support: The ATmega32U4 handles USB communication directly, allowing the board to behave as a native Keyboard or Mouse (HID) for any PC or Mac.

  • Increased I/O Capability: Offers 20 digital I/O pins, including 7 PWM channels and 12 analog inputs, providing more flexibility than the standard Uno R3.

  • Micro USB Interface: Modernized connectivity with a sturdy Micro USB port, making it compatible with standard mobile charging and data cables.

  • Separated Serial Communication: Because USB is handled natively, the hardware Serial (UART) on pins 0 and 1 is kept free for communication with other modules (like GPS or Bluetooth) without interfering with the USB connection.

  • R3 Header Compatibility: Features the standard 1.0 pinout (SDA, SCL, IOREF pins), ensuring it works seamlessly with the latest R3-standard shields.

All Technical Details

  • DC Current per I/O Pin: 40 mA.

  • DC Current for 3.3V Pin: 50 mA.

  • USB Features: Supports Keyboard/Mouse emulation via the Keyboard.h and Mouse.h libraries.

  • Reset Circuit: Improved reset circuit compared to earlier versions for more reliable programming and operation.

  • Dimensions: 68.6 mm x 53.3 mm (Standard Arduino form factor).

Prototyping & Engineering Tips (Robogears Exclusive)

  • Serial vs. Serial1: On the Leonardo, Serial refers to the USB (Virtual) communication to your computer, while Serial1 refers to the hardware UART on Pins 0 (RX) and 1 (TX). This is a common point of confusion—if you're using a Bluetooth module at your Pimpri facility, use Serial1 in your code!

  • Keyboard Emulation Safety: When programming HID macros, always include a "fail-safe" switch in your code. If your script starts typing indefinitely, you might lose control of your computer; a physical switch to disable the HID output is a professional-grade safety measure.

  • Bootloader Behavior: When you press the reset button or upload code, the Leonardo disappears and reappears as a different USB device. If your computer doesn't recognize it initially, check your Device Manager to see the port change.

  • Voltage Regulation: If powering via the DC Barrel Jack, stay within the 7V–12V range. Using a 9V battery or a 12V adapter is perfect, but going higher can cause the onboard 5V regulator to overheat.

Package Includes

  • 1 x Leonardo R3 Board (ATmega32U4 Compatible)

  • 1 x Micro USB Cable (Optional/As per Batch)

Image Disclaimer

Product images are shown for illustrative purposes only. The color of the PCB (typically Blue or Black) or the brand markings may vary slightly between manufacturing batches, but the ATmega32U4 core and R3 layout remain as described.
