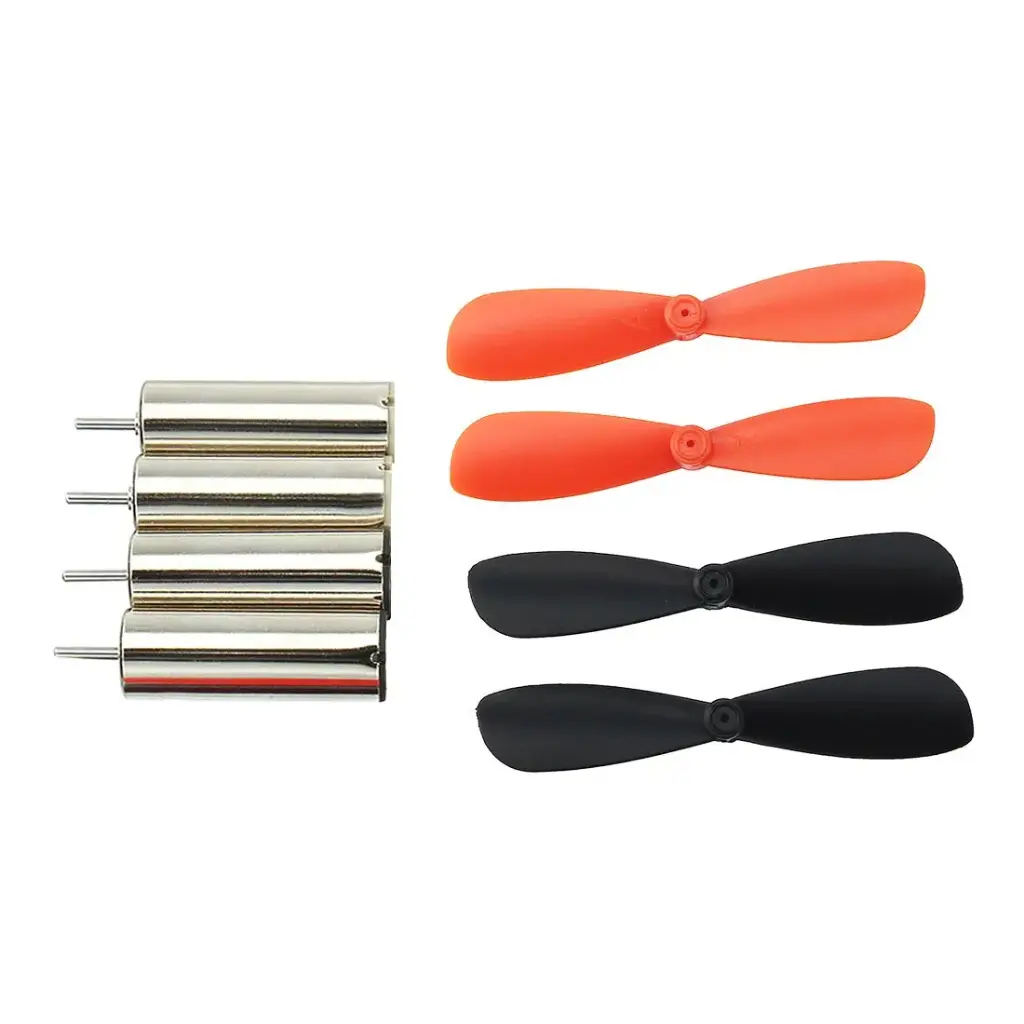

DM002 Motor Set of 4 with propeller

DM002 Motor Set of 4 with propeller

(0 review)
ComponentSpecification
Motor TypeCoreless DC Motor
Operating Voltage3.7V DC (1S LiPo)
No-Load Speed45,000 to 50,000 RPM
Shaft Diameter0.8 mm
Motor Dimensions6mm x 15mm / 7mm x 16mm (Batch dependent)
Propeller TypeHigh-Efficiency Plastic (CW & CCW)
Quantity4 Motors + 4 Propellers
Price
₹ 355.93 ₹ 355.93
(Tax included)

Product Description The DM002 Micro Coreless Motor Set is a high-speed propulsion kit designed specifically for micro-drones, tiny-whoops, and ultra-lightweight RC aircraft. Unlike standard brushed motors, coreless motors feature a low-inertia rotor that allows for near-instantaneous acceleration and extremely high RPMs. This set comes as a complete 4-pack, featuring two Clockwise (CW) and two Counter-Clockwise (CCW) motors and matching propellers, providing the essential balanced thrust required for stable quadcopter flight.

Key Features

  • Ultra-high-speed performance optimized for 3.7V lithium-polymer batteries.

  • Lightweight coreless design reduces overall drone weight for better agility.

  • Color-coded wiring (Red/Blue and Black/White) for easy rotation identification.

  • High-precision 0.8mm shaft ensures a vibration-free propeller fit.

  • Plug-and-play solution for repairing or building micro-sized RC quadcopters.

Technical Details

  • Input Voltage: 3.7V DC

  • No-load Current: 80mA - 120mA

  • Load Current: 1.0A - 1.5A (at full throttle)

  • Rotation Mix: 2 x CW (Clockwise), 2 x CCW (Counter-Clockwise)

  • Wire Length: Approx. 5cm to 8cm

  • Propeller Diameter: Approx. 30mm to 45mm

  • Weight: Approx. 2g per motor

Prototyping and Engineering Tips from Robogears

  • Wire Color Coding: To identify rotation, Red/Blue wires generally indicate Clockwise (CW) rotation, while Black/White wires indicate Counter-Clockwise (CCW). Ensure you match these to the correct propeller type to generate upward lift.

  • Soldering Caution: Coreless motors are sensitive to heat. When soldering the thin wires to your flight controller, use a fine-tip iron and keep contact time under 2 seconds to avoid melting the internal plastic end-caps.

  • Propeller Mounting: The 0.8mm shaft is very thin. When pressing on the propellers, hold the motor by the metal casing, not the wires, to prevent the back-plate from popping off.

  • Cooling: Because these motors run at extremely high RPMs, they can get hot quickly. Avoid running them at 100% throttle for more than 2-3 minutes at a time to preserve the internal brushes.

Package Includes

  • 2 x CW Coreless Motors

  • 2 x CCW Coreless Motors

  • 2 x CW Propellers

  • 2 x CCW Propellers

Disclaimer Product images are for illustrative purposes; actual appearance or wire colors may vary by batch. Specifications are subject to change by the manufacturer. Ensure correct polarities are followed to prevent flight instability.
