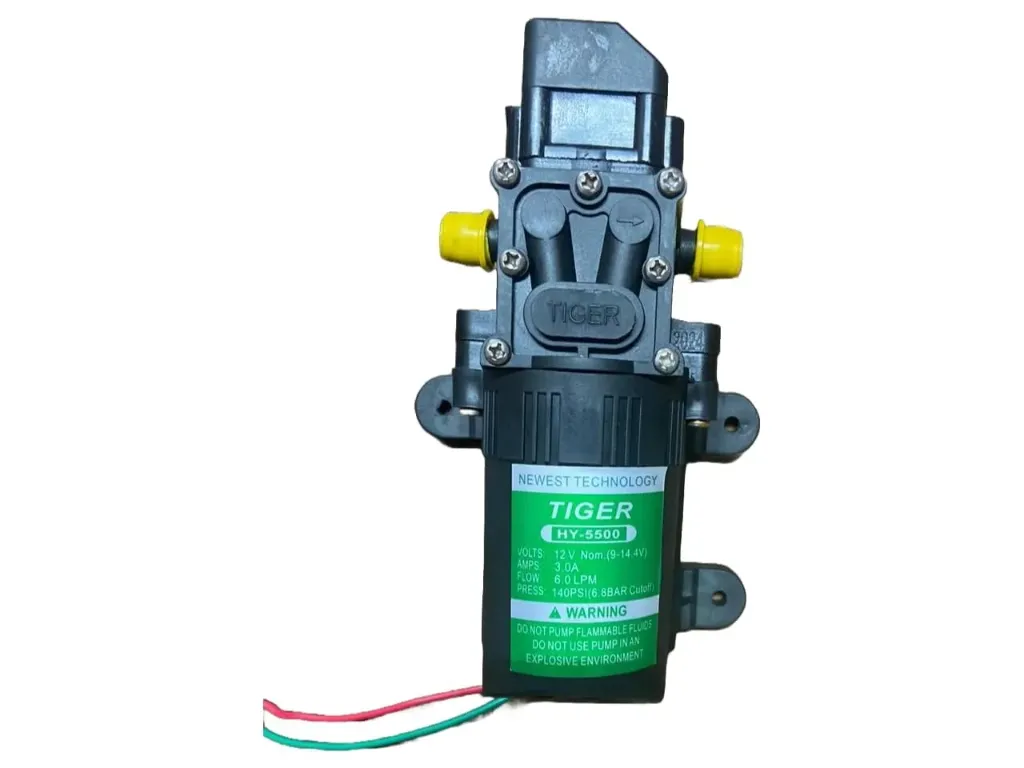

The Tiger HY-5500 12V 140 PSI High-Pressure Diaphragm Water Pump is a heavy-duty DC pump designed for applications requiring high water pressure in a compact and portable form factor. Its diaphragm-based pumping mechanism provides strong and consistent water delivery, while the self-priming design and automatic cut-off function make it convenient for sprayers and water-pressure systems. The HY-5500 is commonly used for agricultural spraying, misting, car and bike washing, AC cleaning, irrigation, solar-panel cleaning, and other portable water-pressure applications. Available specifications for the HY-5500 indicate a 140 PSI maximum pressure, approximately 6 L/min open flow, and automatic cut-off at around 6.8 bar.
Key Features:
-
140 PSI High-Pressure Output for demanding spraying and cleaning applications
-
12V DC Operation suitable for batteries and portable power systems
-
Heavy-duty diaphragm pump mechanism
-
Self-Priming design for convenient operation
-
Built-in automatic cut-off when the outlet is blocked or pressure reaches the cut-off level
-
Approx. 6 L/min open flow rate
-
Compatible with commonly available 8mm ID / 12mm OD hose
-
Suitable for agriculture, cleaning, irrigation and misting applications
-
Portable and easy to integrate into DIY systems
-
Can be powered using a 12V battery or suitable 12V DC adapter
