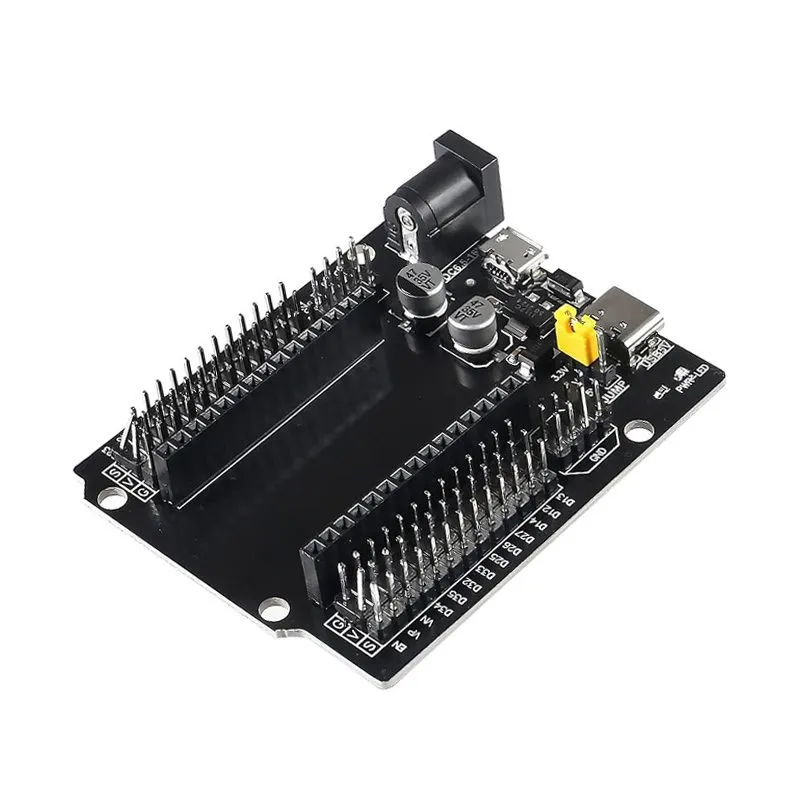

30Pin ESP32 Expansion Board with Type-C USB and Micro USB Dual Interface for ESP32 ESP-32 ESP-32S Development Board

30Pin ESP32 Expansion Board with Type-C USB and Micro USB Dual Interface for ESP32 ESP-32 ESP-32S Development Board

(0 review)
SpecificationDetails
Compatibility30-Pin ESP32 / ESP-32S (Narrow version)
Power InputsUSB Type-C (5V), Micro-USB (5V), DC Jack (6.5V–16V)
Output VoltageSelectable 3.3V or 5V (via Jumper Cap)
Interface LayoutGVS (Ground-Voltage-Signal) for all 30 pins
Onboard Regulator5V / 1A Integrated Regulator
PCB Dimensions~68mm x 53mm
Price
₹ 139.83 ₹ 139.83
(Tax included)

Barcode: 924177

Product Description

This expansion board features a dual-interface design, allowing you to power your project via USB Type-C, Micro-USB, or a standard DC Barrel Jack. This flexibility is essential for high-power IoT projects where a computer's USB port might not provide enough current for multiple sensors or relays. The board also includes a Power-On LED indicator and a manual reset button, making it a complete workstation for ESP32 development.

Key Features

  • No-Solder Prototyping: The pre-soldered headers allow you to drop in your ESP32 module and start connecting peripherals instantly.

  • Flexible Power Logic: A built-in jumper allows you to switch the VCC rail between 3.3V and 5V, making it compatible with both low-power sensors and 5V modules like ultrasonic sensors.

  • Triple Power Input: Supports a wide range of power sources, from a phone charger (USB-C) to a 12V wall adapter (DC Jack).

  • Stable Signal Transmission: The double-layer PCB design ensures clean signals and high reliability for SPI, I2C, and UART communications.

Technical Details

  • Mounting: 4x M3 screw holes for secure enclosure mounting.

  • Pin Pitch: Standard 2.54mm (0.1") headers.

  • Weight: ~18g (without ESP32 module).

Prototyping and Engineering Tips from Robogears

  • Check the Width: This board is designed for the narrow version of the 30-pin ESP32. Before buying, ensure your ESP32's pin width matches the socket on this board; wide versions will not fit.

  • Jumper Configuration: Always set the 3.3V/5V jumper before connecting your sensors. Accidentally sending 5V to a 3.3V-only sensor can permanently damage it.

  • High Power Loads: If you are driving multiple Relay Modules or Vibration Motors, use the DC Jack with a 9V or 12V adapter. This utilizes the onboard regulator, which is more robust than drawing all power through the USB-C port.

  • GVS Wiring Rule: The headers follow a strict G-V-S (Ground, Voltage, Signal) order. Ensure your sensor wires are oriented correctly (usually Black for G, Red for V, and Color for S) to avoid short circuits.

Package Includes

  • 1 x 30-Pin ESP32 Expansion Board (USB Type-C + Micro-USB Dual Interface)

Disclaimer

The ESP32 Development Board itself is not included and must be purchased separately.
