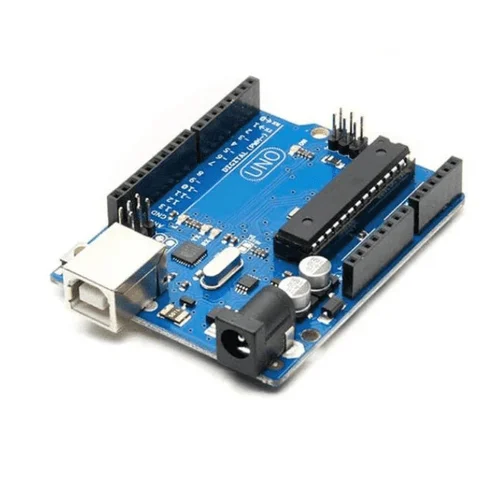

Prototyping Uno R3 DIP Development Board (ATmega328P - Arduino Compatible)

Prototyping Uno R3 DIP Development Board (ATmega328P - Arduino Compatible)

(0 review)
SpecificationDetails
MicrocontrollerATmega328P (Removable DIP)
Operating Voltage5V
Input Voltage7V to 12V (via DC Jack or VIN)
Digital I/O Pins14 (6 provide PWM output)
Analog Input Pins6
Flash Memory32 KB (0.5 KB used by bootloader)
Clock Speed16 MHz
Price
₹ 406.78 ₹ 406.78
(Tax included)

Product Description

The Uno R3 DIP is designed for durability and flexibility. Unlike the SMD version where the chip is permanently soldered, the DIP version allows you to swap the microcontroller chip into a standalone PCB once your project is finalized. It includes everything needed to support the microcontroller: a 16 MHz ceramic resonator, USB connection, power jack, ICSP header, and a reset button. It can be powered directly via a USB cable or through an external AC-to-DC adapter.


Key Features

  • Replaceable Controller: The DIP-28 chip is seated in a socket, allowing for easy replacement in case of an accidental overvoltage or for use in independent circuit boards.

  • Standardized Pinout: Fully compatible with all Arduino Uno Shields, including motor drivers, LCD displays, and Ethernet expansion boards.

  • Automatic Power Switching: Intelligently selects between USB power and an external power source (like a 9V battery or 12V adapter) without manual intervention.

  • Onboard Indicators: Includes status LEDs for Power (ON), Serial Communication (TX/RX), and a user-programmable LED on Pin 13.

  • Native USB Support: Features a dedicated ATmega16U2 (or CH340G, depending on the specific variant) for high-speed, stable USB-to-serial communication.

Technical Details

  • SRAM: 2 KB.

  • EEPROM: 1 KB.

  • Dimensions: 68.6 mm x 53.4 mm.

  • Weight: ~25 grams.

Prototyping and Engineering Tips from Robogears

  • The "DIP Advantage": If you're a beginner, always choose the DIP version. If you accidentally short a pin and burn the chip, you can buy a replacement ATmega328P IC for a few dollars rather than replacing the entire board.

  • Power Regulation: While the board can handle up to 20V, we strongly recommend staying between 7V and 12V. At higher voltages, the onboard regulator can become extremely hot, which may lead to thermal shutdown.

  • Pin Protection: Each I/O pin can provide up to 40mA of current, but for long-term reliability, it’s best to keep the draw under 20mA. Use a transistor or a relay module if you need to control high-power components like motors.

  • Shield Alignment: When plugging in shields, ensure the pins are perfectly aligned. Misalignment can cause short circuits between the 5V and Ground rails, potentially damaging both the shield and the Uno.

Package Includes

  • 1 x Uno R3 DIP Development Board

  • 1 x High-Quality USB Cable (A to B)

Disclaimer

Always disconnect the board from the power source before making any wiring changes. Avoid touching the board while it is powered to prevent static discharge from interfering with your code execution.
