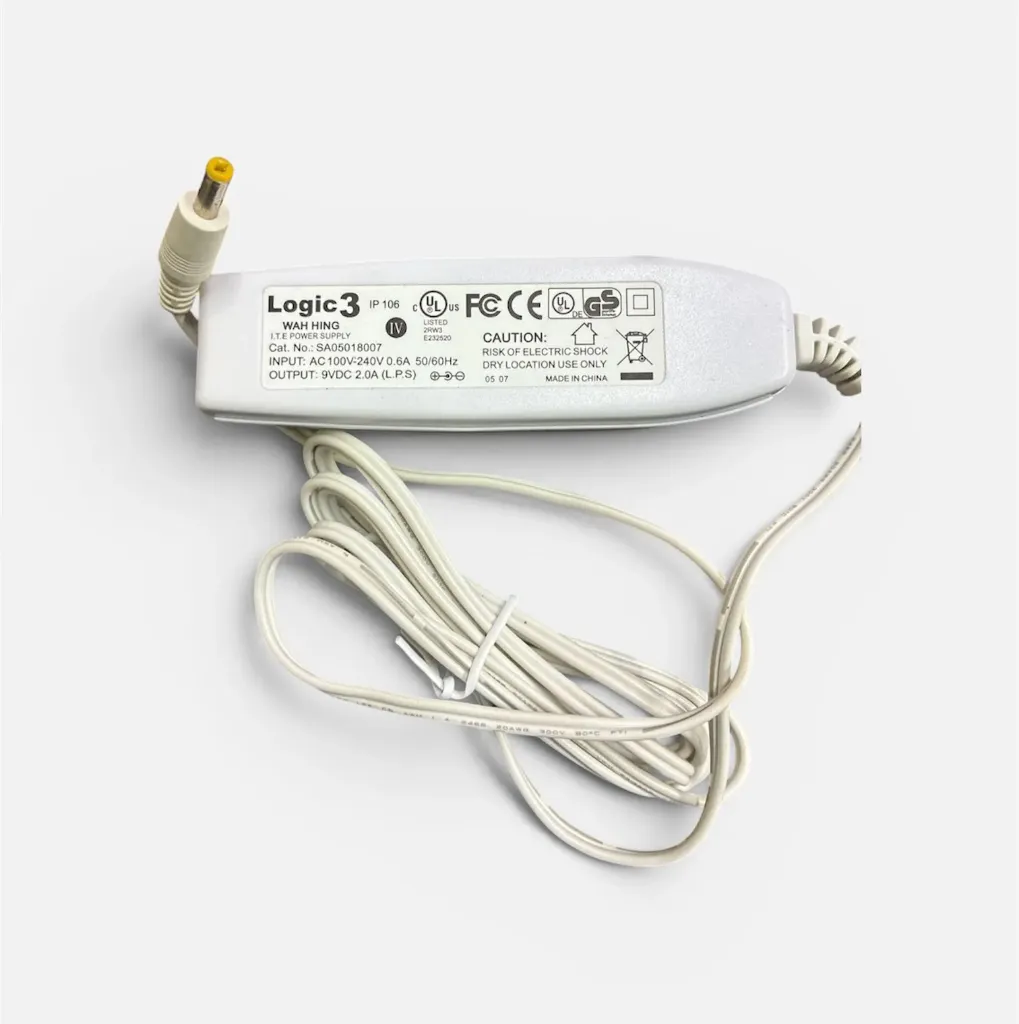

LOGIC3 IP 106 AC ADAPTER 9VDC 2A WAH HING I.T.E POWER SUPPLY

LOGIC3 IP 106 AC ADAPTER 9VDC 2A WAH HING I.T.E POWER SUPPLY

(0 review)
SpecificationDetails
ModelIP-106 (Wah Hing SA05018007)
Output Voltage9V DC
Output Current2.0A (2000mA)
Input Voltage100V - 240V AC (Global Compatibility)
Connector TypeSmall Barrel Jack
PolarityCenter Positive (+)
Safety CertificationsITE Power Supply Rated (UL/CE listed)
Price
₹ 186.44 ₹ 186.44
(Tax included)

Barcode: 9638161

Product Description

This 9V 2A AC adapter is a direct replacement for the original power supply included with the Logic3 IP106 speaker system. It features a switching power supply design that converts standard wall outlet AC power into stable DC power. The unit is equipped with a small barrel connector specifically sized to fit the recessed power port of the i-Station, ensuring a secure and reliable connection without power flickers.

Key Features

  • Optimized Power Delivery: Provides a full 2 Amps, ensuring the speakers have enough headroom for deep bass while charging an iPod.

  • Wah Hing Reliability: Sourced from a reputable ITE manufacturer, known for low electromagnetic interference and high heat resistance.

  • Global Voltage Input: Supports 110V to 240V, making it a perfect travel adapter for your speaker system when used with a plug converter.

  • Integrated Protection: Built-in safeguards against over-voltage, short circuits, and over-current to protect your expensive docking station.

  • Compact Design: Slim-profile wall plug allows it to be used in power strips without blocking adjacent outlets.

Technical Details

  • Color: Black.

  • Efficiency Level: VI (meets modern energy-saving standards).

Prototyping and Engineering Tips from Robogears

  • Voltage Match is Critical: Always ensure your replacement adapter is exactly 9V. Using a 12V adapter on the IP106 can blow the internal capacitors and audio amplifier chips of the speaker dock.

  • Amperage Headroom: It is safe to use an adapter with a higher current rating (e.g., 9V 3A), as the device will only draw what it needs. However, never use an adapter with less than 2A, as it will overheat and cause the audio to distort or the charging to fail.

  • Polarity Check: The IP106 uses a Center Positive configuration. If you are using a universal adapter, double-check the tip polarity icon (a dot with a '+' sign inside a C-shape) before plugging it in.

  • Connector Care: Because the IP106 uses a relatively small and thin barrel jack, avoid placing tension on the cable. A right-angle connector or adding a small loop of slack can prevent the internal solder joints of the speaker's power port from breaking over time.

Package Includes

  • 1 x 9V 2A AC Adapter for Logic3 IP-106

Disclaimer

This adapter is specifically for the Logic3 IP106 model. Verify your device's model number on the bottom label before purchasing.
