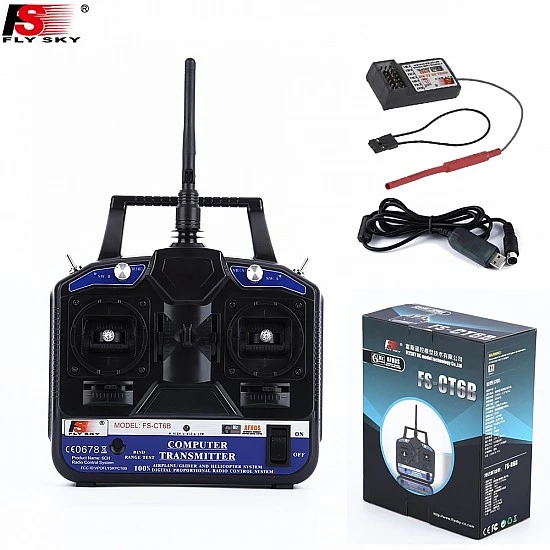

FlySky CT6B 2.4GHz 6CH Transmitter with FS-R6B Receiver

FlySky CT6B 2.4GHz 6CH Transmitter with FS-R6B Receiver

(0 review)
SpecificationDetails
Channels6 Channels
Model TypeHeli / Airplane / Glider
RF Range2.40 – 2.48 GHz
Bandwidth500 kHz
System TypeAFHDS
Code TypeGFSK
Sensitivity1024
Power Input12V DC (8 x AA Batteries)
Price
₹ 3,050.85 ₹ 3,050.85
(Tax included)

Barcode: 9639

Product Description

Unlike transmitters with built-in LCD screens, the CT6B is programmed via a USB interface connected to a PC. Using the provided software, users can adjust advanced settings such as servos reversing, wing mixing (Delta/V-Tail), and dual rates. The included FS-R6B receiver is compact and lightweight, making it suitable for small-to-mid-sized RC models.

Key Features

  • Computer Programmable: Allows for precise configuration of travel limits, sub-trims, and mixing through a dedicated Windows-based software.

  • Reliable 2.4GHz Link: The AFHDS system ensures that you don't have to worry about frequency crystals or interference from other pilots at the field.

  • Versatile 6-Channel Control: Provides enough channels for basic flight (4 channels) plus two additional channels for landing gear, flaps, or camera triggers.

  • Low Power Warning: The transmitter includes an LED indicator that flashes when the battery voltage drops, giving you plenty of time to land safely.

  • Lightweight Receiver: The FS-R6B weighs only 13 grams, ensuring it doesn't negatively impact the center of gravity of your aircraft.

Technical Details

  • Transmitter Weight: ~590g.

  • Antenna Length: 26mm (Single Antenna).

  • Port: PS/2 port for PC programming and trainer function.

Prototyping and Engineering Tips from Robogears

  • Programming Requirement: Note that you cannot change settings on the transmitter itself. You will need a USB-to-Serial programming cable and the FlySky "T6Config" software (or the community-made "Digital Radio" software) to set up your model.

  • Binding Procedure: To bind the FS-R6B receiver, insert the Bind Plug into the BAT port, power the receiver through any other port, and then hold the Bind button on the transmitter while turning it on.

  • Powering Advice: This transmitter requires 8 AA batteries, which can make it heavy. Many hobbyists modify the battery compartment to fit a 3S LiPo or LiFe battery for longer runtimes and reduced weight.

  • Safety First: Always perform a range test at the flying field before your first flight of the day to ensure there are no local interference sources affecting your signal.

Package Includes

  • 1 x FlySky CT6B 6-Channel Transmitter (Mode 2)

  • 1 x FlySky FS-R6B 6-Channel Receiver

  • 1 x Bind Plug

Disclaimer

Batteries and the USB programming cable are often sold separately. Ensure you have the programming cable to configure the transmitter for your specific model.
