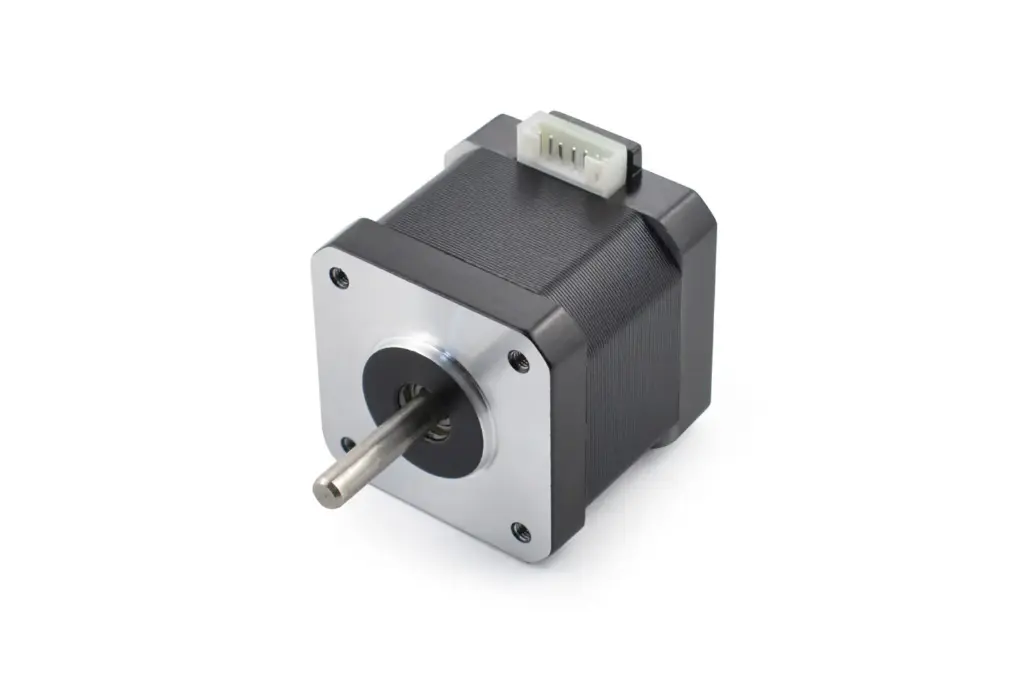

Hybrid Stepper Motor for 3D Printer (3.5kg)

Hybrid Stepper Motor for 3D Printer (3.5kg)

(0 review)
ComponentSpecification
Step Angle1.8 Degrees
Holding Torque3.5 kg-cm (0.35 Nm)
Rated Voltage3V to 12V DC (Driver Dependent)
Rated Current1.2A to 1.5A per Phase
Phase ResistanceApprox. 2.2 Ohms
Shaft Diameter5 mm (D-Shaft)
Frame SizeNEMA 17 (42mm x 42mm)
Price
₹ 635.59 ₹ 635.59
(Tax included)

Product Description The NEMA 17 Hybrid Stepper Motor is the gold standard for precision motion control in desktop 3D printers, small CNC machines, and robotic actuators. Delivering a reliable 3.5kg-cm of holding torque, this motor utilizes a hybrid design to combine high resolution with significant power. Its standardized 42mm frame size and 1.8-degree step angle allow for ultra-precise positioning, ensuring that your 3D prints are smooth and your robotic movements are repeatable.

Key Features

  • High-precision 1.8° step angle (200 steps per revolution).

  • High torque output of 3.5kg-cm, ideal for X, Y, and Z-axis movement.

  • D-shaped 5mm shaft for secure mounting of pulleys and couplers.

  • Low vibration and quiet operation when paired with microstepping drivers.

  • Durable metal construction with high-quality bearings for long-term use.

Technical Details

  • Step Angle Accuracy: +/- 5% (full step, no load)

  • Temperature Rise: 80°C Max

  • Ambient Temperature Range: -20°C to +50°C

  • Insulation Resistance: 100MΩ Min. 500VDC

  • Dielectric Strength: 500VAC for one minute

  • Phase: 2 Phase (4-wire)

  • Inductance: Approx. 3.8 mH per phase

  • Motor Length: Approx. 38mm to 40mm (excluding shaft)

Prototyping and Engineering Tips from Robogears

  • Driver Pairing: To get the best performance, use a dedicated stepper driver like the A4988, DRV8825, or TMC2209. These drivers allow for "Microstepping," which breaks down the 1.8° step into much smaller increments for smoother motion.

  • Current Tuning: Always adjust the Vref (Voltage Reference) on your stepper driver to match the motor's rated current (approx. 1.2A). Over-driving the motor will cause it to get extremely hot and potentially skip steps.

  • Wiring Check: Identify your phases (A+, A-, B+, B-) using a multimeter. If the motor "vibrates" but doesn't spin, two of your wires are likely swapped.

  • Heat Dissipation: Stepper motors are designed to run warm, but if the motor body is too hot to touch, consider adding a 42mm heatsink or reducing the current from the driver.

Package Includes

  • 1 x NEMA 17 Hybrid Stepper Motor (3.5kg-cm)

  • 1 x Detachable Connection Cable (Standard 4-pin)

Disclaimer Product images are for illustrative purposes; actual appearance or cable colors may vary by batch. Specifications are subject to change by the manufacturer. Ensure correct current limiting on your driver to prevent motor burnout. Handle precision mechanical parts with care.
