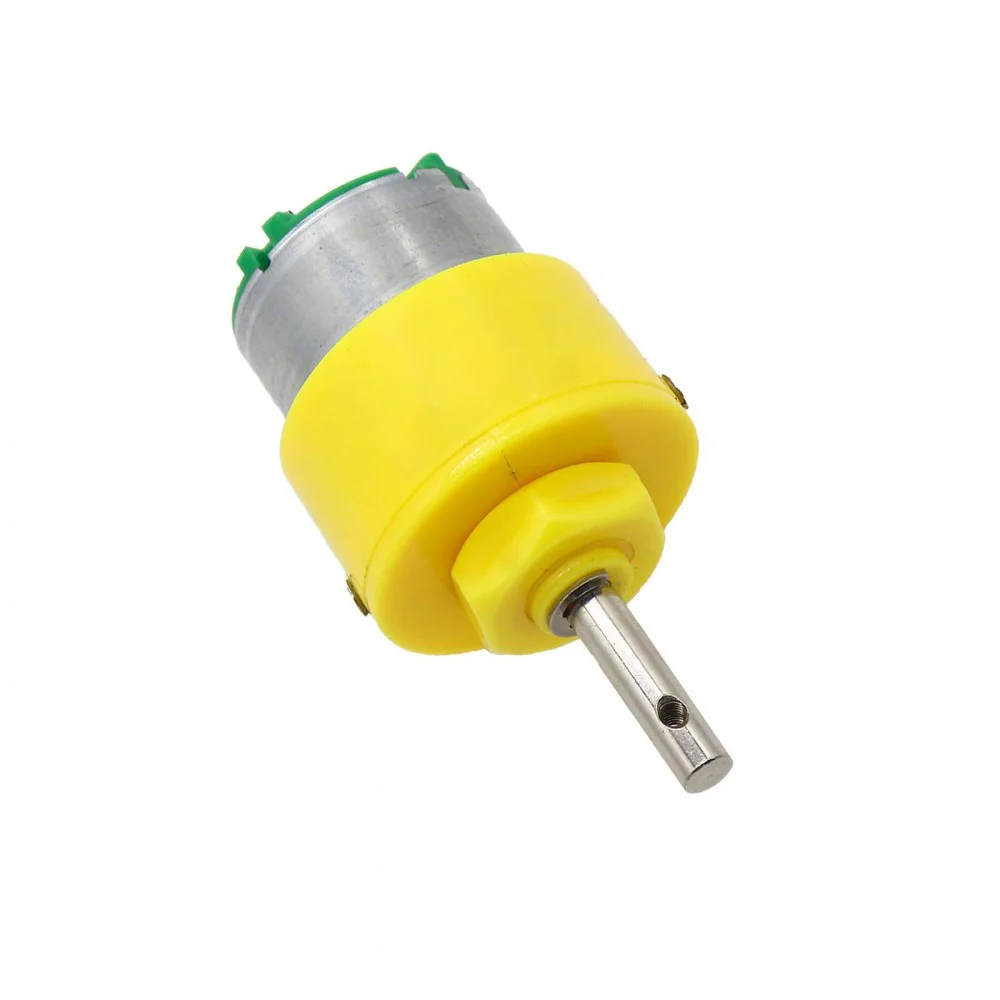

1000 RPM 12V Centre Shaft DC Geared Motor High Speed Metal Gearbox Robotic Motor

1000 RPM 12V Centre Shaft DC Geared Motor High Speed Metal Gearbox Robotic Motor

(0 review)
ComponentSpecification
Operating Voltage6V to 12V DC
Rated Voltage12V DC
No-Load Speed1000 RPM (at 12V)
Shaft Diameter6 mm
Gearbox TypeFull Metal Spur Gearbox
Shaft TypeCentre Shaft (Straight)
TorqueApprox. 0.5 kg-cm
Price
₹ 165.25 ₹ 165.25
(Tax included)

Product Description The 1000 RPM Centre Shaft DC Geared Motor is a high-speed, high-performance solution for robotics and industrial automation. By combining a powerful DC motor with a precision-engineered metal gearbox, this motor delivers significant speed while maintaining the stability and torque required for rapid mechanical movements. The centre shaft design ensures balanced weight distribution, making it an excellent choice for fast-moving small robots, high-speed conveyor systems, and hobbyist projects requiring quick actuation.

Key Features

  • Full metal gears for enhanced durability and high wear resistance.

  • High rotational speed of 1000 RPM for fast-action robotics.

  • Compact cylindrical design for easy mounting in circular or narrow frames.

  • Balanced centre shaft configuration for reduced vibration.

  • Compatible with standard 6mm couplings and wheels.

Technical Details

  • Voltage Range: 6V – 12V DC

  • Speed at 6V: ~500 RPM

  • Speed at 12V: 1000 RPM

  • No-Load Current: 100mA to 300mA

  • Full Load Current: Up to 1.2A

  • Gearbox Diameter: 37 mm

  • Shaft Length: 15 mm

  • Gearbox Type: Spur Gear Reduction

  • Internal Lubrication: Grease-packed for long-term use

Prototyping and Engineering Tips from Robogears

  • Shaft Mounting: The 6mm shaft usually features a threaded internal hole or a flat D-cut. Use an M3 screw or a set-screw coupling to lock your wheel in place, preventing it from slipping during high-speed rotations.

  • Driver Recommendation: To handle the high-speed switching and current spikes, we recommend the L298N or a robust MOSFET-based driver. If you need speed control, ensure your PWM frequency is set correctly to avoid "whining" noises from the gearbox.

  • Lubrication: These metal gearboxes come pre-lubricated. However, for long-term industrial use, adding a small amount of lithium grease every 100 hours of operation will significantly extend the gear life.

  • Inertia Handling: At 1000 RPM, the motor has significant rotational momentum. When stopping the motor, use "Braking" mode on your motor driver rather than just cutting the power to ensure precise stops and prevent mechanical over-travel.

Package Includes

  • 1 x 1000 RPM 12V Centre Shaft DC Geared Motor

Disclaimer Product images are for illustrative purposes; actual appearance may vary by batch. Specifications are subject to change by the manufacturer. Ensure correct power sourcing and secure mounting before use. Handle high-speed motors with caution.
