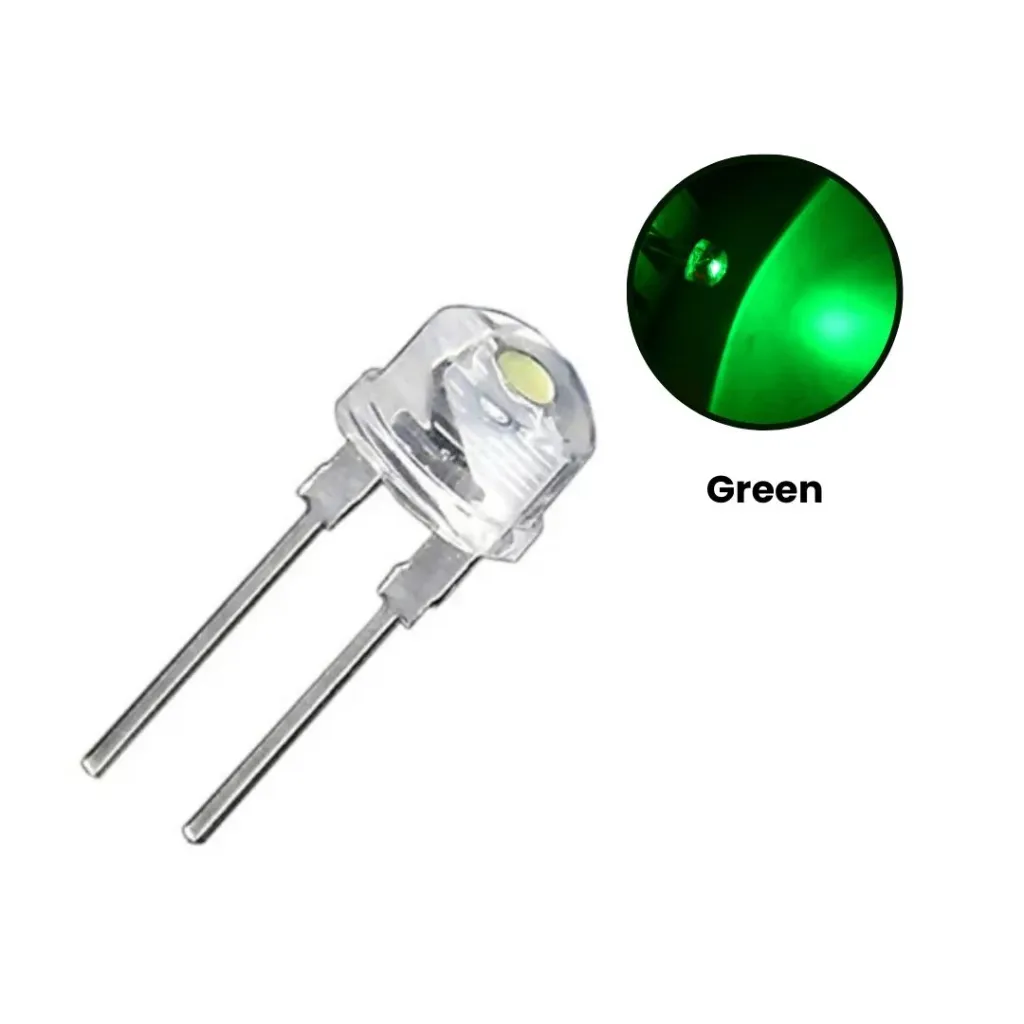

8mm Green Straw Hat LED High-Brightness Wide-Angle Light (Pack of 5)

8mm Green Straw Hat LED High-Brightness Wide-Angle Light (Pack of 5)

(0 review)
ComponentSpecification
LED TypeStraw Hat (Wide Angle)
Diameter8mm
ColorEmerald Green
Lens AppearanceWater Clear (Crystal Clear)
Forward Voltage ($V_f$)3.0V – 3.4V
Forward Current ($I_f$)20mA (Standard) / 30mA (Max)
Luminous Intensity1200 – 2000 mcd
Viewing Angle100° – 120°
Price
₹ 14.29 ₹ 14.29
(Tax included)

Product Description The 8mm Green Straw Hat LED is a high-efficiency light source designed for wide-area illumination. Unlike standard round LEDs that focus light into a narrow beam, the "Straw Hat" profile features a shorter, flatter lens that disperses light at a broad 120-degree angle. These LEDs produce a vibrant, saturated emerald green color through a crystal-clear lens, making them perfect for decorative lighting, status indicators on large control panels, and custom hobbyist projects where a wide "flood" of green light is required without any dark spots.

Key Features

  • Vibrant Green Output: High-intensity emerald hue for high visibility and aesthetic appeal.

  • Wide-Angle Dispersion: Flat-top design ensures light is spread evenly across a broad surface.

  • Crystal Clear Lens: Water-clear epoxy housing ensures maximum light output and color purity.

  • 8mm Large Format: Provides a larger illuminated surface area compared to standard 3mm or 5mm LEDs.

  • Low Heat Generation: Highly efficient operation makes these safe for use in enclosed plastic housings.

Technical Details

  • Anode (+): Longer Lead

  • Cathode (-): Shorter Lead (Flat notch on the LED base)

  • Operating Temperature: -25°C to +85°C

  • Storage Temperature: -30°C to +100°C

  • Wave Length: 520nm – 525nm

Prototyping and Engineering Tips from Robogears

  • Uniform Panel Lighting: If you are building a control panel with backlit icons, these Straw Hat LEDs are far superior to standard 5mm LEDs because they fill the icon area with light more evenly.

  • Current Management: Always use a current-limiting resistor. For a 5V source, a 100Ω to 220Ω resistor will maintain the current at a safe level and protect the internal chip.

  • Status Indicators: These are perfect for "Power ON" or "System Ready" indicators on large robot chassis where visibility from side angles is important.

  • Daisy Chaining: If you need more coverage, you can easily pair these with the 8mm White Straw Hat LEDs to create high-visibility multi-color status arrays.

Package Includes

  • 5 x 8mm Green Straw Hat LEDs

Disclaimer Images are for reference; actual brightness depends on your specific circuit configuration. DO NOT connect directly to a power source without a resistor, as excessive current will damage the LED.
