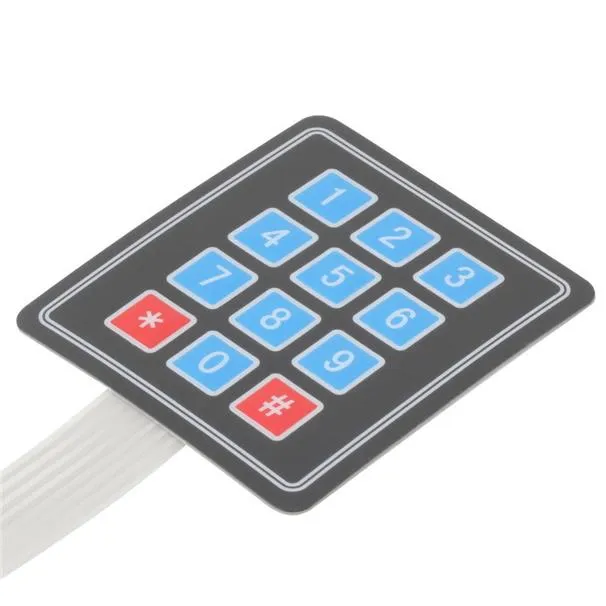

4x3 Matrix Membrane Keypad – 12-Key Ultra-Thin Numeric Interface for Arduino & Industrial Prototyping

Product Description The 4x3 Matrix Membrane Keypad is an ultra-thin, space-saving input device designed for electronic projects requiring numeric data entry. This 12-button keypad features a high-quality adhesive backing, allowing it to be easily mounted onto any flat surface or enclosure. The membrane construction consists of multiple layers of flexible PET, with conductive traces that form a matrix circuit. Unlike mechanical keypads, this module is extremely lightweight and resistant to water splashes and dust, making it ideal for door locks, security systems, and industrial control panels. It interfaces with microcontrollers like Arduino, ESP32, and Raspberry Pi using only 7 digital pins through a scanning method.

Key Features

• Ultra-Thin Profile: At just 0.8mm thickness, it offers a sleek and professional finish to any project enclosure without adding bulk.

• Self-Adhesive Backing: Features a strong 3M adhesive layer on the rear for quick and secure mounting on plastic, metal, or glass.

• 12-Key Layout: Standard numeric entry (0-9) plus asterisk (*) and hash (#) symbols for versatile menu navigation and password entry.

• Flexible Ribbon Cable: Equipped with a 7-pin female Dupont connector (2.54mm pitch) for easy connection to standard male headers.

• Dust & Splash Resistant: The sealed membrane surface protects the internal contacts from environmental contaminants and light moisture.

Technical Details

• Scanning Logic: Operates on a row-column matrix; pressing a key shorts one row pin to one column pin, which is detected by the MCU.

• Contact Material: High-conductivity silver ink traces ensure reliable signal transmission and low contact resistance.

• Debouncing Requirements: While the membrane has a fast response, software debouncing is recommended for clean signal detection.

• Pin Configuration: 7 Pins total (4 Rows: R1, R2, R3, R4 and 3 Columns: C1, C2, C3).

• Actuation Force: Requires a gentle 150g to 400g of pressure for a tactile, reliable keypress.

• Voltage Flexibility: Passive device that works with any logic level (1.8V, 3.3V, 5V, or 12V) provided by the host controller.

• Storage Temperature: Stable storage capabilities from -40°C to +80°C.

• Humidity Resistance: Designed to operate in environments with up to 90% non-condensing humidity.

• Lead Length: Features a flexible ribbon cable extension (approx. 80mm) for versatile internal wiring.

• Key Pitch: Standard spacing between keys for comfortable finger operation.

• Matrix Type: Passive switch matrix; requires no external power to the keypad itself, only to the logic pins.

• UV Resistance: High-quality graphic overlay is resistant to fading under indoor lighting conditions.

• Standard Interface: Directly compatible with the standard "Keypad.h" library in the Arduino IDE.

• Impact Resistance: Flexible PET layers absorb minor shocks without damaging the internal conductive traces.

• Industrial Utility: Widely used in vending machines, specialized calculators, and access control prototypes.
