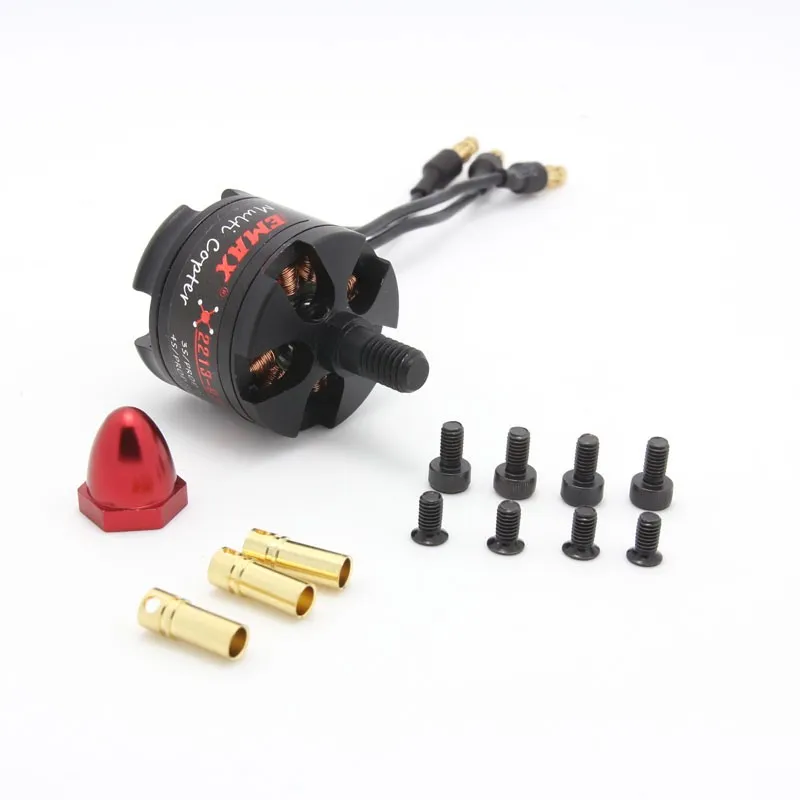

Emax MT2213 935KV BLDC Motor CCW Rotation with 1045 Propeller Combo for Drone

Emax MT2213 935KV BLDC Motor CCW Rotation with 1045 Propeller Combo for Drone

(0 review)
ComponentSpecification
ModelEmax MT2213
KV Rating935 RPM/Volt
RotationCCW (Counter-Clockwise Thread)
Input Voltage3S - 4S LiPo
Max ThrustApprox. 850g (on 3S with 1045 Prop)
Shaft Diameter5 mm
Weight53g (Motor only)

Price
₹ 1,228.81 ₹ 1,228.81
(Tax included)

Product Description The Emax MT2213 935KV is a premium-grade brushless motor designed for multirotors, specifically optimized for 3S and 4S battery setups. This "Multi-Thrust" series motor is engineered for efficiency and stability, making it a top choice for DJI F450/F550 style frames. The combo includes a balanced 1045 propeller, ensuring a perfect match for maximum lift and flight time. Built with high-quality magnets and precision bearings, this motor provides the smooth throttle response required for aerial photography and steady flight.

Key Features

  • Optimized for 10-inch propellers to provide high lift-to-weight ratios.

  • Integrated propeller mount for direct, secure installation.

  • Multi-Thrust design for high efficiency and cooler operating temperatures.

  • Precision-balanced bell to minimize vibration and noise.

  • Durable construction suitable for both beginner and professional drone builds.

Technical Details

  • KV Value: 935 RPM/V

  • Configuration: 12N14P

  • Propeller Size: 10 x 4.5 (Included)

  • No-load Current: 0.5A @ 10V

  • Max Continuous Current: 18A

  • Max Continuous Power: 200W

  • Motor Dimensions: 27.9mm x 39.7mm

  • Mounting Pattern: 16mm x 19mm

Prototyping and Engineering Tips from Robogears

  • Rotation Check: This is the CCW thread version (usually identified by a black nut). While the motor can spin in either direction based on ESC wiring, the CCW thread ensures the nut stays tight during counter-clockwise rotation.

  • ESC Selection: Pair this motor with a 20A or 30A SimonK or BLHeli ESC for the best performance. Ensure the ESC supports the cell count of your LiPo battery.

  • Propeller Balancing: Even though Emax props are high quality, always check the balance of your 1045 props before flight. Unbalanced props cause "Jello" in video footage and can wear down motor bearings over time.

  • Thrust Management: On a 3S battery, this motor is very efficient for heavy-lift drones. If moving to 4S, monitor heat levels closely as the higher voltage increases the RPM and current draw significantly.

Package Includes

  • 1 x Emax MT2213 935KV Brushless Motor (CCW Thread)

  • 1 x 1045 Propeller (CCW)

  • 1 x Propeller Nut & Mounting Screws

Disclaimer Product images are for illustrative purposes; actual appearance may vary by batch. Specifications are subject to change by the manufacturer. Ensure correct ESC calibration and secure mounting before use. Handle high-speed brushless motors with caution.
