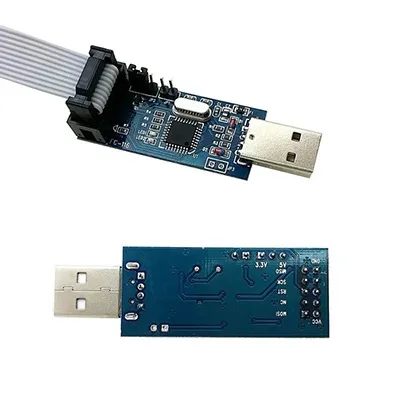

USBASP AVR Programmer for Atmel Microcontrollers with 10-Pin Cable

USBASP AVR Programmer for Atmel Microcontrollers with 10-Pin Cable

(0 review)
Componentspecification
InterfaceUSB Type A
SupportATmega, ATtiny, AT90 Series
Output Voltage3.3V or 5V (Jumper Selectable)
Connection10-Pin ISP Interface
Clock SpeedAdjustable (SCK Jumper)
Price
₹ 220.34 ₹ 220.34
(Tax included)

Product Description The USBASP is a high-performance USB-based In-Circuit Serial Programmer (ISP) designed specifically for Atmel AVR microcontrollers. It allows you to upload code and firmware directly to your AVR chips without needing a dedicated bootloader. This programmer is compact, reliable, and integrates seamlessly with common development environments like AVRDUDE, Arduino IDE, and Khazama.

Key Features

  • Plug-and-play USB interface for modern laptops and PCs.

  • Support for a wide range of Atmel microcontrollers (8051 and AVR).

  • Switchable power supply output between 3.3V and 5V.

  • Overcurrent protection with a built-in 500mA self-recovery fuse.

  • Includes a high-quality 10-pin flat ribbon cable.

Technical Details

  • Input Connector: USB Type A

  • Output Connector: 10-Pin ISP (IDC Header)

  • Supported Logic Levels: 3.3V and 5V DC

  • Programming Software: AVRDUDE, Khazama AVR Programmer, Progisp

  • Driver Support: Windows (XP, 7, 8, 10, 11), Linux, and Mac OS

  • Status LEDs: Power (Red) and Activity (Green/Red)

  • Data Transfer Rate: Up to 5KB/sec

  • Frequency Support: Supports low-speed clocking for chips with internal RC oscillators below 1.5MHz (via Jumper)

Prototyping and Engineering Tips from Robogears

  • Driver Installation: On Windows 10 and 11, you may need to use "Zadig" to install the correct libusb-win32 driver for the programmer to be recognized by your IDE.

  • Target Powering: If your target board has its own power supply, remember to remove the "VCC" jumper on the USBASP to avoid power conflicts between the USB port and your external supply.

  • Slow SCK Jumper: If you are working with a brand-new AVR chip (factory default 1MHz clock), you must bridge the 'Slow SCK' jumper for the first burn to ensure the programmer matches the chip's slow speed.

  • Pin Alignment: Ensure the notch on the 10-pin IDC cable matches the notch on your target board to prevent reverse polarity.

Package Includes

  • 1 x USBASP AVR Programmer Module

  • 1 x 10-Pin IDC Flat Ribbon Cable

Disclaimer Product images are shown for illustrative purpose only.
