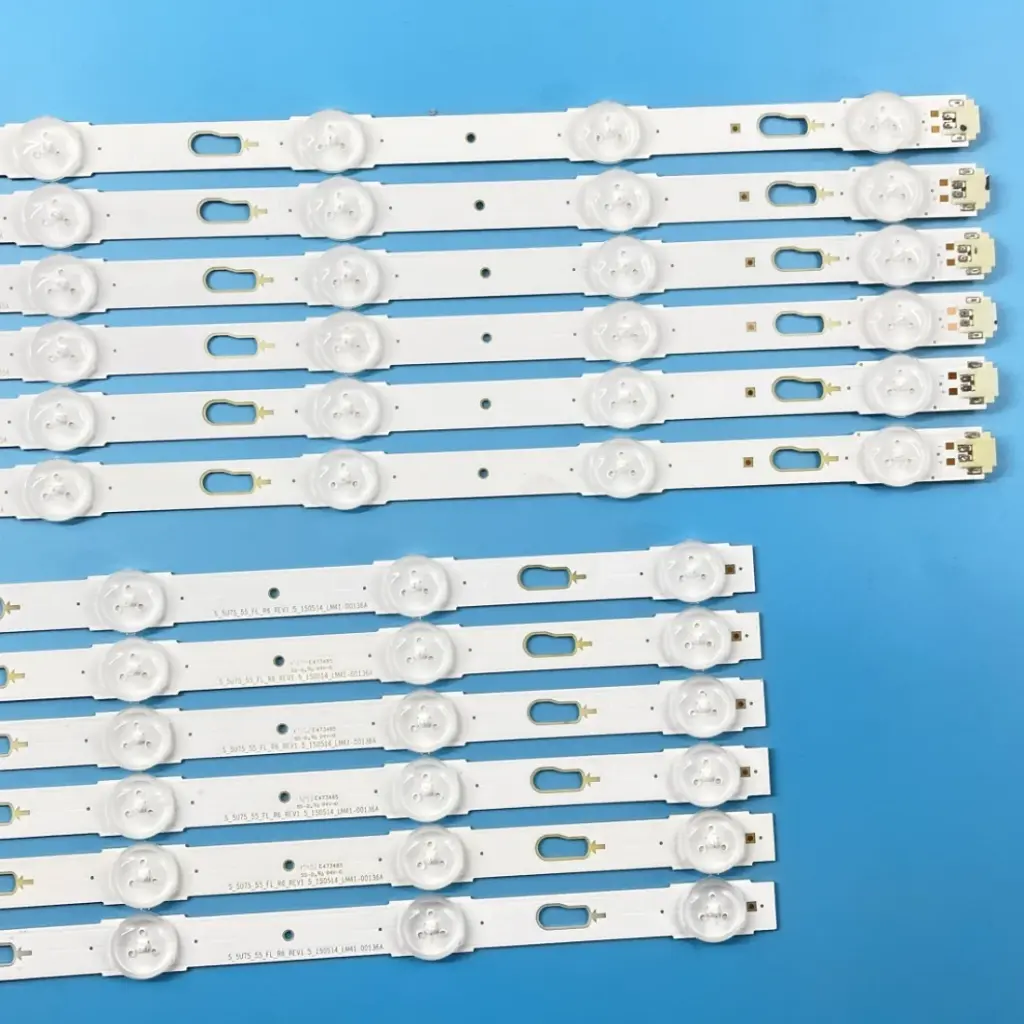

Samsung 60-Inch Curved LED TV Backlight Strip Set – 18-Piece Array Kit (9 Pairs) with 14 LEDs per Row (8+6 Config) for 60" Curved Smart TVs

Parameter	Detailed Specification
Compatible Size	60-Inch Samsung Curved LED TVs
LED Configuration	14 LEDs per full row (8 + 6 segments)
Total Strips	18 Pieces (9 x A-Segments + 9 x B-Segments)
Substrate Material	High-Thermal Conductivity Aluminum
Lens Type	Original Quality Circular Diffuser
Electrical Interface	2-Pin Interlocking Connectors

Price

🚚 Ships within 24 Hours
📦 Pan India Delivery

₹ 4,406.78

(Tax included)

Barcode: 101015

Product Description

Restore the immersive panoramic display of your premium television with the Samsung 60-Inch Curved LED Backlight Strip Set. This comprehensive 18-piece kit is specifically designed for 60" Curved Samsung LED models, featuring a unique "8+6" segmented design that combines to form 9 full-length horizontal rows. These strips provide the high-intensity illumination required to maintain the vibrant contrast and colour depth characteristic of curved panels. At Robogears, we provide these strips on a high-grade aluminium substrate. This aluminium core ensures significantly faster heat dissipation compared to standard plastic alternatives, preventing LED burnout and the common "dark screen" or "sound but no picture" issues found in large-screen repairs.

Detailed Key Features

Curved Panel Optimised: Engineered to match the original factory specifications for the 60-inch curved series, ensuring perfect light distribution across the curved optical stack.
Aluminium Thermal Core: Built on an aluminium base that effectively draws heat away from the LED beads, preventing "blue tint" and ensuring industrial-grade longevity.
Complete Array Replacement: Includes all 9 pairs (18 segments) required to replace the entire backlight system, maintaining perfect uniform brightness.
High-Clarity Optical Lenses: Each LED is equipped with a precision-moulded circular lens that ensures light is spread evenly across the massive 60-inch surface, eliminating bright spots.
Interlocking Segment Design: The 8+6 design allows for safer shipping and simplified installation within the specialised internal layout of curved TV chassis.

All Technical Details

Total LED Count: 126 High-intensity LEDs across the complete 9-row array.
Substrate Type: Heat-resistant aluminium for superior durability.
Colour Balance: Pre-calibrated to match the original Samsung factory white point for natural colour reproduction.
Connector Integrity: Features standard interlocking 2-pin connectors for a secure and stable electrical bond.
Mounting Profile: Slim-

Prototyping & Engineering Tips (Robogears Exclusive)

Diagnosis Tip: If your curved 60-inch TV flashes the logo for a second and then goes dark while the audio continues, the backlight driver has likely detected a failed LED in the array and entered protection mode.
The "Full Set" Rule: We strongly recommend replacing the entire set of 18 segments. In a large 60-inch array, mixing old and new LEDs often leads to voltage imbalances that cause the remaining old strips to fail shortly after the repair.
Surface Preparation: Before mounting the new strips at your Pimpri workshop, ensure the curved metal chassis is perfectly clean of old residue. Use high-quality thermal double-sided tape to ensure the aluminium strip makes maximum contact for cooling.
Curved Panel Handling: Curved LCD glass is under constant tension and is significantly more fragile than flat panels. We recommend using a specialised curved-screen suction cup set and at least two people to lift the panel to prevent cracking or internal contamination.

Package Includes

9 x A-Type (8-LED) Backlight Strip Segments
9 x B-Type (6-LED) Backlight Strip Segments (Forms 9 complete rows of 14 LEDs each)

Image Disclaimer

Image shown is for illustrative purposes only; the actual product may vary slightly in length, lens shape, or connector position due to manufacturing updates, though all technical specifications will remain as described.

🔒
