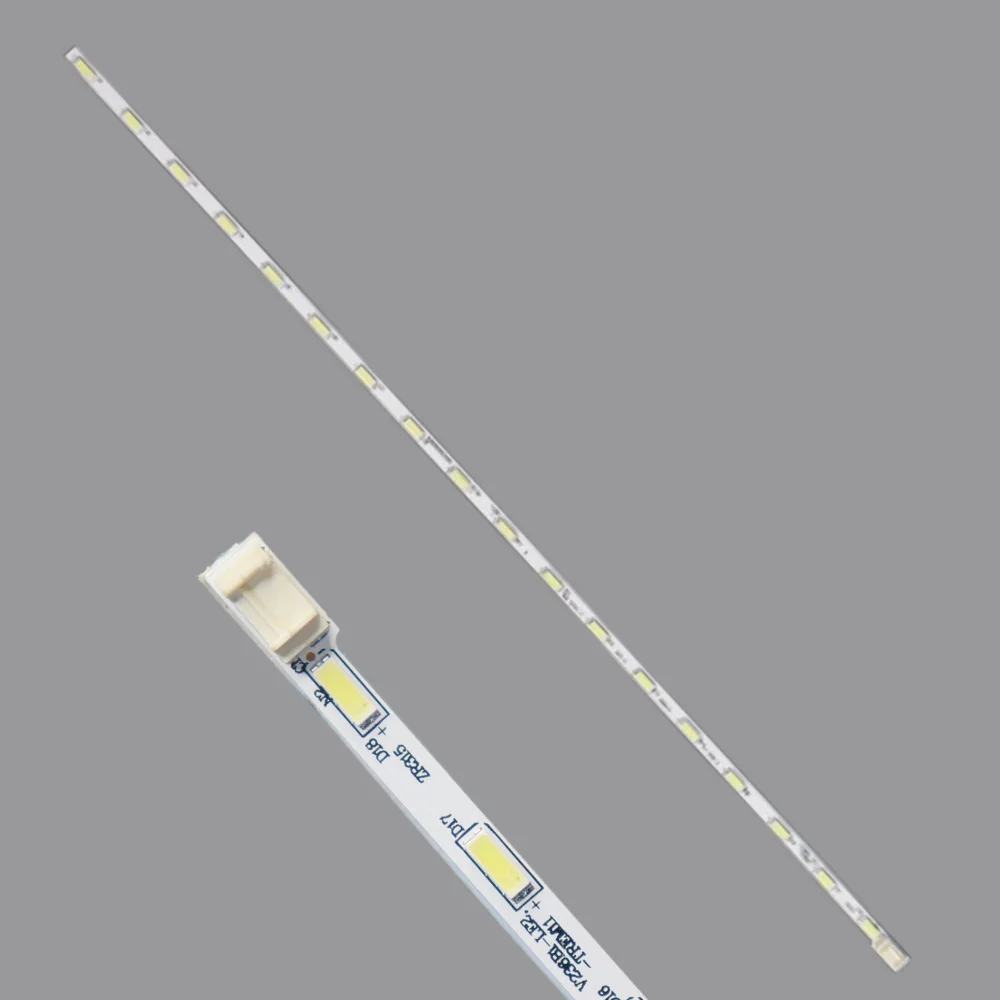

Sony 24-Inch Edge-Lit LED TV Backlight Strip – 31cm High-Density Array with 18 LEDs for 24" Smart TVs – Side-Fitting Replacement Stick

Parameter	Detailed Specification
Total Length	31 cm (310 mm)
LED Quantity	18 High-Intensity LEDs
Compatible Size	24-Inch Sony LED TVs
Backlight Type	Edge-Lit (Side-Fitting)
Substrate Material	High-Thermal Conductivity Aluminum
Quality Grade	Industrial High-Brightness

Price

🚚 Ships within 24 Hours
📦 Pan India Delivery

₹ 114.41

(Tax included)

Barcode: 103002

Product Description

Restore the professional-grade brightness and vivid contrast of your display with the Sony 24-Inch Edge-Lit LED Backlight Strip. Measuring 31cm in length, this high-density replacement stick is specifically designed for side-fitting (edge-lit) Sony 24-inch LED TV assemblies. Featuring 18 high-intensity LED beads, this strip provides the concentrated illumination required for slim-profile display panels. At Robogears, we prioritize durability; these strips are manufactured on a premium aluminum substrate, which provides significantly better heat dissipation than standard plastic alternatives. This superior thermal management prevents the LEDs from overheating, ensuring consistent brightness and preventing common issues like "screen blinking" or "sound but no picture" found in Sony TV repairs.

Detailed Key Features

Sony Precision Design: Engineered to align perfectly with the side-mount side-fitting channels of 24-inch Sony LED TV chassis.
High-Density LED Array: Features 18 LEDs in a compact 31cm profile, delivering seamless light distribution across the light guide plate (LGP).
Aluminum Thermal Core: Built on an aluminum base that rapidly draws heat away from the LED beads, ensuring a stable operating temperature and an extended service life.
Side-Fitting Optimization: Specifically designed for edge-lit configurations, allowing for the restoration of the TV's original slim aesthetic.
Industrial Reliability: Engineered to maintain original factory brightness and color temperature over thousands of hours of active display time.

All Technical Details

Total Drive Voltage: Optimized for Sony's standard constant-current backlight drivers.
Substrate Type: Rigid aluminum (Al) for thermal stability and structural straightness.
Color Temperature: Calibrated cool-white spectrum for natural color rendering and high contrast.
Interface: Standard solderable pads or connector pins for secure electrical bonding.
Mounting Profile: Ultra-slim straight design specifically for side-fitting edge-mount assemblies.

Prototyping & Engineering Tips (Robogears Exclusive)

Diagnosis Tip: Sony TVs often use a "blink code" system. If your 24-inch Sony TV's standby light blinks 6 times, it typically indicates a failure in the backlight system or the LED driver circuit.
The "Side Replacement" Rule: For any professional repair at your Pimpri facility, always verify if the TV uses a single strip or a pair. For balanced brightness and color, replacing the strip(s) as a full set is recommended to avoid uneven illumination due to aging.
Thermal Bonding: Because edge-lit strips generate significant heat in a concentrated area, ensure the TV's metal frame is perfectly clean before installation. Use high-quality thermal double-sided tape to ensure the aluminum strip makes maximum contact for cooling.
Optical Alignment: When installing, ensure the LEDs are perfectly aligned with the edge of the Light Guide Plate (LGP). Any misalignment can cause significant shadows or uneven brightness across the screen surface.

Package Includes

1 x 18LED 24" (31cm) Sony Side-Fitting Backlight Stick

Image Disclaimer

Image shown is for illustrative purposes only; the actual product may vary slightly in substrate color or connector style due to manufacturing updates, though all technical specifications will remain as described.
