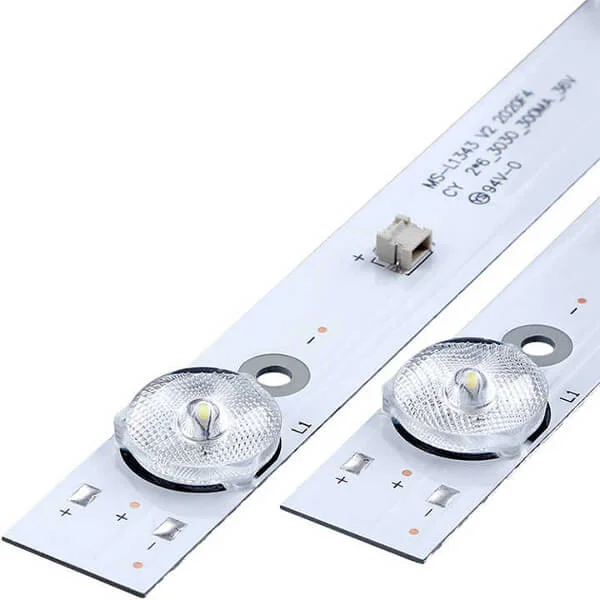

32-Inch LED TV Backlight Strip – 58cm Straight Profile with 6 LEDs (6V per LED) – MS-L1343 Replacement for Universal LED TV Repairs HSN Code

32-Inch LED TV Backlight Strip – 58cm Straight Profile with 6 LEDs (6V per LED) – MS-L1343 Replacement for Universal LED TV Repairs HSN Code

(0 review)
ParameterDetailed Specification
Model NumberMS-L1343
Total Length58 cm (580 mm)
LED Quantity6 LEDs per strip
Operating Voltage6V per LED (36V total per strip)
Compatible Size32-Inch LED TVs (Universal/Straight)
Substrate MaterialHigh-Thermal Conductivity Aluminum
Lens TypeOriginal Quality Circular Diffuser
Price
₹ 67.80 ₹ 67.80
(Tax included)

Product Description

The 6LED 6V 58cm MS-L1343 Straight Backlight Strip is a specialised illumination component designed for the high-reliability repair of 32-inch LED televisions. Measuring 58cm in length, this strip is a common standard for many universal and branded LED panels. It features 6 high-intensity LED beads, each operating at a robust 6V, providing high-brightness output for superior picture contrast. At Robogears, we ensure these strips are manufactured on a premium aluminium substrate. This aluminium core provides significantly faster heat dissipation compared to standard plastic alternatives, preventing the LEDs from overheating and ensuring a much longer service life for your repaired TV.

Detailed Key Features

  • MS-L1343 Model Compatibility: Designed as a direct-fit replacement for the widely used MS-L1343 backlight architecture.

  • High-Voltage 6V LED Beads: Each of the 6 LEDs is rated for 6V, delivering deep, powerful illumination for high-definition display performance.

  • Aluminium Thermal Core: Built on an aluminium base that rapidly draws heat away from the LED chips, preventing "blue tint" and burnout.

  • Precision Optical Lenses: Equipped with high-clarity diffuser lenses that spread light evenly across the 32-inch panel, eliminating "bright spots" or "shadowing."

  • Industrial Durability: Engineered to maintain original factory brightness and colour temperature over thousands of hours of active display time.

All Technical Details

  • Total Drive Voltage: Approximately 36V DC per strip.

  • Substrate Type: Rigid aluminium (Al) for thermal stability and straightness.

  • Colour Temperature: Calibrated cool-white spectrum for natural colour rendering.

  • Interface: Standard 2-pin interface for secure electrical bonding or easy soldering.

  • Profile: Slim-line straight design for easy placement within original reflective sheets.

Prototyping & Engineering Tips (Robogears Exclusive)

  • Diagnosis Protocol: If your 32-inch TV displays sound but has a dark screen, use an LED tester to verify the strip. A 6-LED 6V strip should show a total forward voltage drop of approximately 36V.

  • The "Full Set" Rule: For any professional repair at your Pimpri workshop, we strongly recommend replacing the entire array (all strips) at once. Mixing new 6V strips with old, aged ones can cause current imbalances that lead to the remaining old strips failing shortly after the repair.

  • Thermal Bonding: Ensure the TV’s metal chassis is perfectly clean of old adhesive residue before installation. Use high-quality thermal double-sided tape or thermal glue to ensure the aluminum strip makes perfect contact with the chassis for heat dissipation.

  • Safety Warning: These are 6V LEDs; do not attempt to test them with a standard 3V battery as they will not illuminate. Always use a proper constant-current LED backlight tester.

Package Includes

  • 1 x 6LED 6V 58cm (MS-L1343) Straight Backlight Strip

Image Disclaimer

Image shown is for illustrative purposes only; the actual product may vary slightly in lens shape or connector position due to manufacturing updates, though all technical specifications will remain as described.
