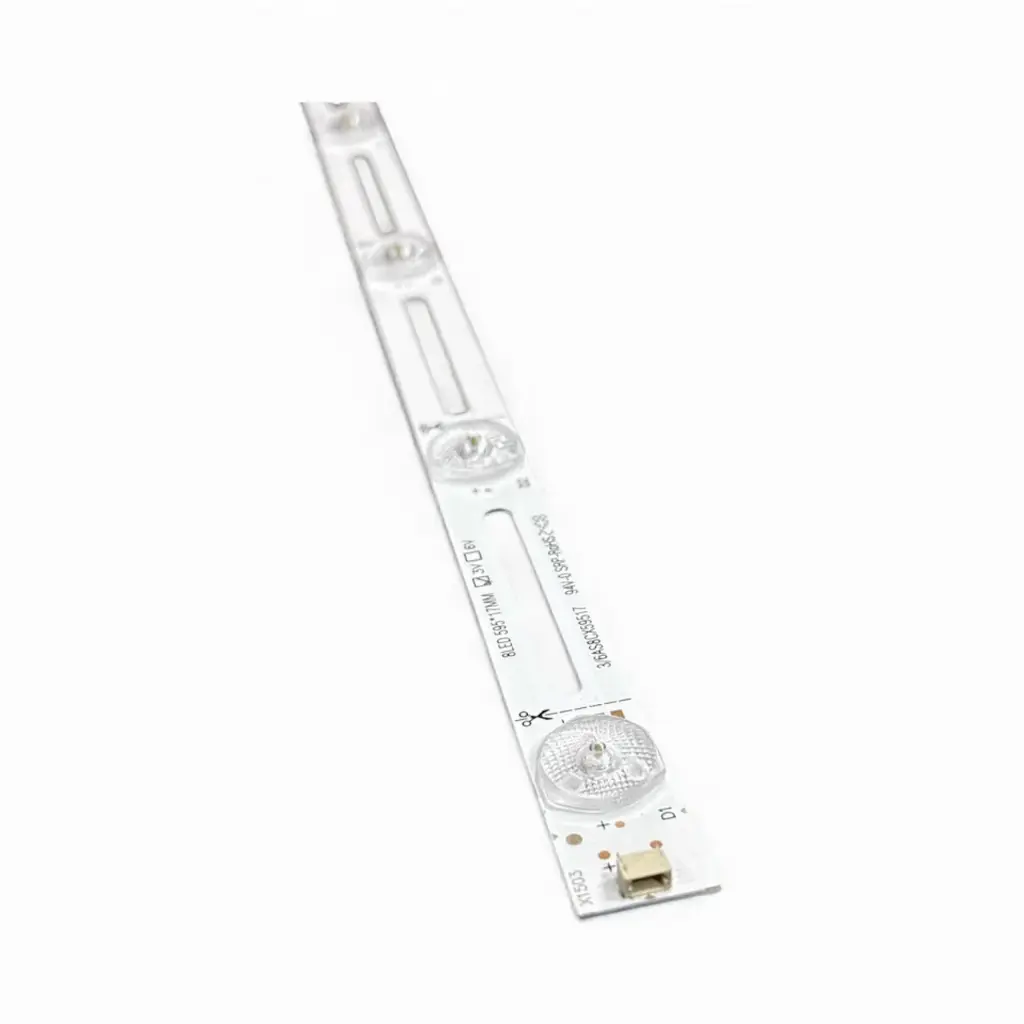

8LED 3V 32" 60CM Straight

8LED 3V 32" 60CM Straight

(0 review)
ParameterDetailed Specification
Length60 cm (600 mm)
LED Quantity8 LEDs
Operating Voltage3V per LED (24V total per strip)
Compatible Size32-Inch LED TVs (Universal/Straight)
Substrate MaterialHigh-Thermal Conductivity Aluminum
Lens TypeClear Convex Optical Lens
Price
₹ 67.80 ₹ 67.80
(Tax included)

Product Description

The 8LED 3V 32" Straight Backlight Strip is a high-performance illumination solution designed for 32-inch LED televisions and specialised lighting applications. Measuring exactly 60cm in length, this straight-profile strip features 8 high-intensity LED beads, each operating at 3V. At Robogears, we prioritise longevity; these strips are manufactured on a premium aluminium substrate, which provides significantly better heat dissipation than standard plastic strips. This superior thermal management prevents the LEDs from overheating, ensuring consistent brightness and preventing common display issues such as dark spots or premature burnout.

Detailed Key Features

  • Universal 32" Fit: The 60cm straight design is compatible with a wide range of 32-inch LED TV models and custom display builds.

  • Aluminium Heat Sink Base: Features an aluminium core that rapidly draws heat away from the LEDs, ensuring a stable operating temperature and extended service life.

  • Consistent 3V Power Output: Each of the 8 LEDs is rated for 3V, making it easy to integrate with standard LED TV power drivers or 24V DC sources.

  • High-Clarity Optics: Equipped with precision optical lenses that spread light evenly, ensuring a uniform display without "bright spots" or "shadowing."

  • Industrial Grade Durability: Built to withstand the high-temperature environment inside a TV chassis, maintaining original brightness over thousands of hours.

All Technical Details

  • Total Strip Voltage: ~24V DC.

  • Substrate Type: Heat-resistant aluminium (Al) for thermal stability.

  • Colour Temperature: Calibrated cool-white for natural display reproduction.

  • Connector Type: Standard 2-pin interface for easy soldering or connector attachment.

  • Mounting Profile: Slim-line straight design for easy placement within original reflective sheets.

Prototyping & Engineering Tips (Robogears Exclusive)

  • Diagnosis Tip: If your 32-inch TV has sound but no picture, or if the screen flashes briefly before going dark, use an LED tester to check if the total forward voltage of the strip is approximately 24V.

  • The "Full Array" Advantage: When repairing a TV at your Pimpri facility, we recommend replacing the entire array (all strips) rather than just the failed one. This ensures uniform current draw and prevents subsequent failures of older strips.

  • Heat Management: Before securing the strip, ensure the metal chassis is clean. For maximum cooling, use high-quality thermal double-sided tape or a thin layer of thermal adhesive to bond the aluminium strip to the metal backplate.

  • Custom Lighting: Because of the 60cm length and 24V requirement, these strips are also excellent for DIY laboratory lighting, grow lights, or under-cabinet illumination when paired with a constant-current LED driver.

Package Includes

  • 1 x 8LED 3V 32" (60cm) Straight Backlight Strip

Image Disclaimer

Image shown is for illustrative purposes only; the actual product may vary slightly in lens shape or connector position due to manufacturing updates, though all technical specifications will remain as described.
