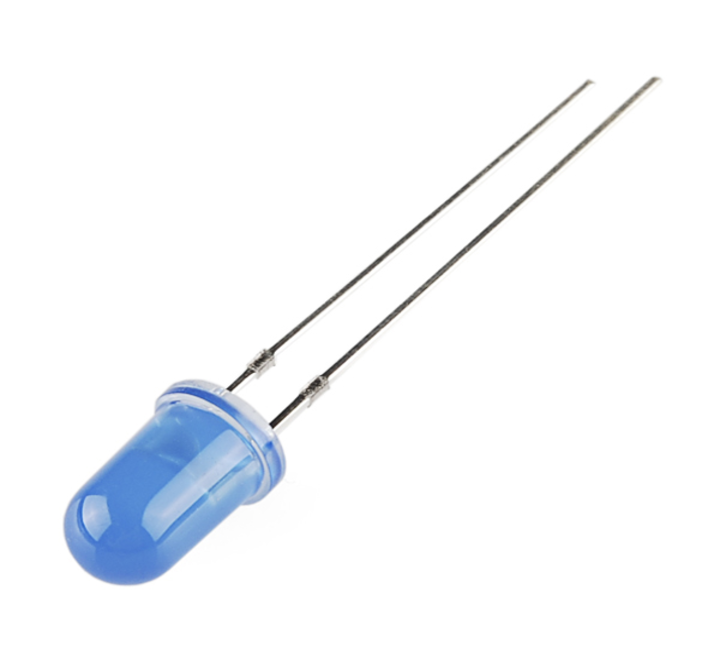

5MM Diffused DIP LED Blue-Blue (Pack of 5)

5MM Diffused DIP LED Blue-Blue (Pack of 5)

(0 review)
ComponentSpecification
LED TypeStandard DIP (Through-Hole)
Diameter5mm
ColorDeep Blue
Lens AppearanceBlue Diffused (Frosted)
Forward Voltage ($V_f$)3.0V – 3.4V
Forward Current ($I_f$)20mA (Standard) / 30mA (Max)
Luminous Intensity300 – 500 mcd
Viewing Angle45° – 60°
Price
₹ 8.47 ₹ 8.47
(Tax included)

Product Description The 5mm Blue Diffused LED is the classic industry-standard indicator for electronic circuits. Unlike "water-clear" LEDs that produce a sharp, blinding beam, this LED features a blue-tinted frosted lens. This diffusion layer ensures that the light is spread evenly across the dome, making the status of the LED clearly visible from multiple angles without straining the eyes. These LEDs are perfect for power indicators, signal lights on control panels, and status beacons for robotic systems where a soft, professional blue glow is required.

Key Features

  • Soft Blue Diffusion: Frosted lens eliminates "hot spots" and provides a comfortable, even glow.

  • High Visibility: The tinted lens ensures the LED color is identifiable even when the power is turned off.

  • Standard 5mm Profile: Fits all standard breadboards, perf-boards, and 5mm LED mounting clips.

  • Vibrant Royal Blue: Produces a sharp, modern blue hue ideal for tech-focused projects and sci-fi aesthetics.

  • Durable Construction: Built with a rugged epoxy housing for long-term reliability in portable devices.

Technical Details

  • Anode (+): Longer Lead

  • Cathode (-): Shorter Lead (Flat notch on the LED base)

  • Wavelength: 460nm – 470nm

  • Operating Temperature: -25°C to +85°C

  • Soldering Temp: 260°C for less than 5 seconds

Prototyping and Engineering Tips from Robogears

  • Indicator Logic: Blue LEDs typically require a higher forward voltage (3.0V – 3.4V) than red or yellow versions. When powering from an Arduino (5V), we recommend a 150Ω to 220Ω resistor for a standard indicator brightness.

  • Battery Direct Power: These LEDs pair perfectly with 3.7V Lithium-Ion batteries. Because the voltage is so close, you only need a small 22Ω to 47Ω resistor to limit the current, making them very energy-efficient for battery-powered bots.

  • Panel Mounting: If you are building a custom chassis, use a 5mm LED plastic holder to secure these into your panel. The diffused lens is much better for panels than clear ones because it can be seen clearly from the side as the robot moves.

  • PWM Dimming: These are excellent for "pulsing" or "breathing" status effects. Use an Arduino PWM pin with a 220Ω resistor to create a smooth fading blue light that signals "System Standby" or "Searching."

Package Includes

  • 5 x 5mm Blue Diffused DIP LEDs

Disclaimer Images are for reference; actual blue saturation may vary slightly by production batch. DO NOT connect directly to a power source without a current-limiting resistor, as this will lead to immediate failure of the LED.
