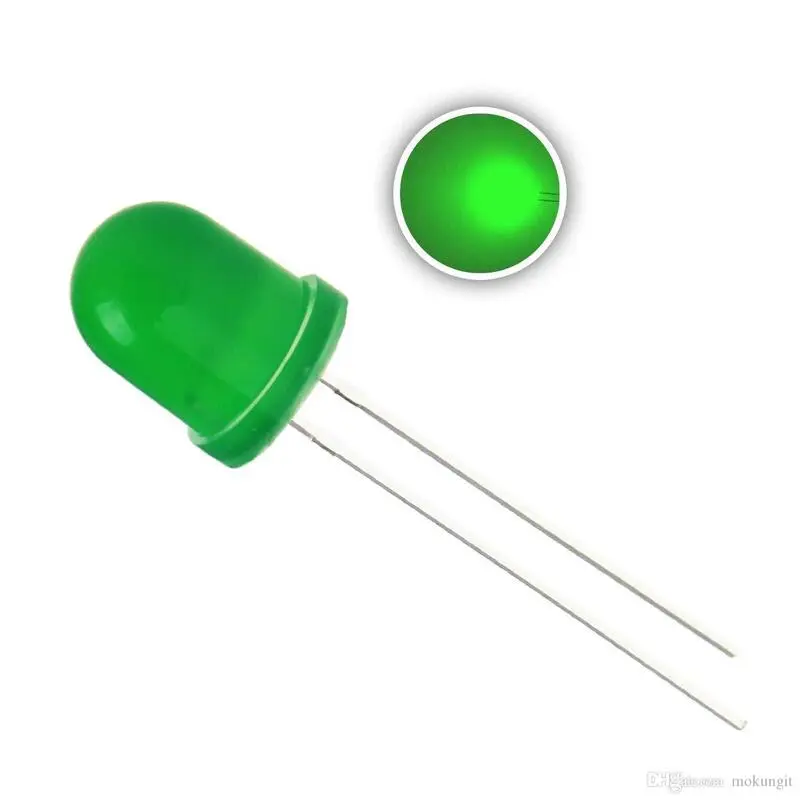

5mm Diffused DIP LED Green-Green (Pack of 5)

5mm Diffused DIP LED Green-Green (Pack of 5)

(0 review)
ComponentSpecification
LED TypeStandard DIP (Through-Hole)
Diameter5mm
ColorForest Green
Lens AppearanceGreen Diffused (Frosted)
Forward Voltage (Vf)2.0V – 2.4V
Forward Current (If)20mA (Standard) / 30mA (Max)
Luminous Intensity200 – 400 mcd
Viewing Angle45° – 60°
Price
₹ 8.47 ₹ 8.47
(Tax included)

Product Description The 5mm Green Diffused LED is the quintessential indicator for signaling "Ready," "Go," or "Power OK" in electronic systems. Featuring a green-tinted frosted lens, this LED provides a soft, wide-angle glow that is easy on the eyes while remaining highly visible from the side. Unlike clear LEDs that act like tiny spotlights, the diffused casing ensures the entire dome illuminates evenly. These are the standard choice for battery chargers, industrial control panels, and educational hobby kits.

Key Features

  • Soft Green Diffusion: Frosted lens eliminates glare and provides a uniform, professional glow.

  • Instant Status Identification: The tinted green lens allows you to identify the LED function even when the device is powered off.

  • Standard 5mm Profile: Perfectly compatible with breadboards, PCB through-holes, and standard LED clips.

  • Vibrant Emerald Hue: Produces a classic green light that stands out against red and yellow indicators.

  • Energy Efficient: Low forward voltage allows for long runtimes in battery-operated handheld devices.

Technical Details

  • Anode (+): Longer Lead

  • Cathode (-): Shorter Lead (Indicated by a flat edge on the LED base)

  • Wavelength: 565nm – 575nm

  • Operating Temperature: -25°C to +85°C

  • Soldering Temp: 260°C for less than 5 seconds

Prototyping and Engineering Tips from Robogears

  • Voltage Awareness: Green LEDs typically operate at a lower voltage (2.0V – 2.4V) than blue or white versions. When powering from an Arduino (5V), we recommend a 220Ω to 330Ω resistor to achieve a standard indicator brightness without overdriving the component.

  • 3.7V Battery Integration: To run these from a Li-ion or Li-Po battery, use a 100Ω to 150Ω resistor. This protects the LED as the battery voltage fluctuates between 3.0V and 4.2V.

  • Panel Mounting: Use a 5mm plastic LED bezel to mount these professionally into your robot's chassis. The diffused lens is ideal for status panels because it doesn't require the user to look directly "down the barrel" to see if the system is on.

  • Logic Indicators: These are perfect for connecting to the "Status" or "Link" pins of wireless modules (like the HC-05 Bluetooth or NRF24L01) to provide visual confirmation of a successful connection.

Package Includes

  • 5 x 5mm Green Diffused DIP LEDs

Disclaimer Images are for reference; actual green hue may vary slightly by production batch. DO NOT connect directly to a power source without a current-limiting resistor, as this will lead to immediate failure of the LED.
