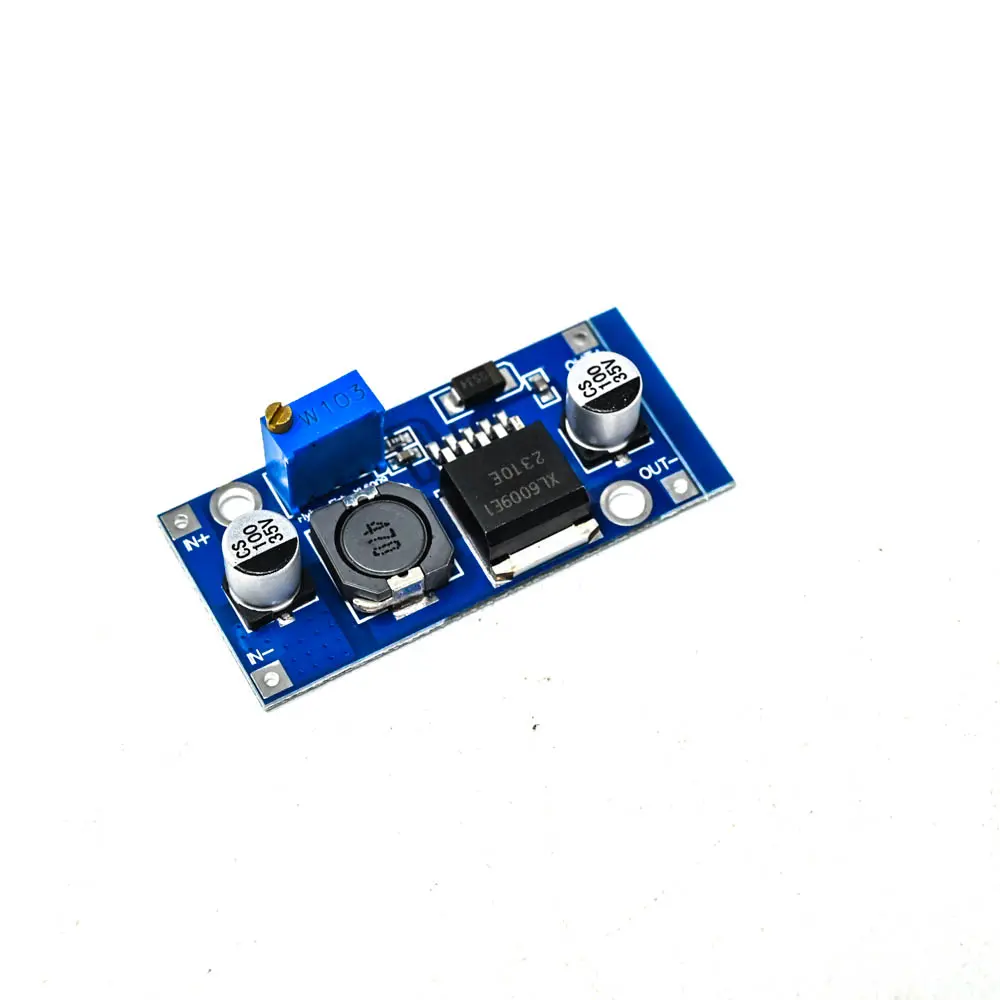

XL6009 DC-DC Step-Up Boost Converter Module – High-Performance 4A Adjustable Voltage Regulator, Ultra LM2577 Upgrade for DIY Electronics and Robotics

Feature	Details
Model	XL6009 (E1)
Module Type	Non-isolated Boost (Step-up)
Input Voltage	3V to 32V DC
Output Voltage	5V to 35V DC (Adjustable via Trimpot)
Switching Current	Max 4A (Requires heat sink for high load)
Efficiency	Up to 94%

Price

🚚 Ships within 24 Hours
📦 Pan India Delivery

₹ 63.56

(Tax included)

Barcode: 12101378

Product Description & Technical Details

Product Description

The XL6009 DC-DC Step-Up Converter is a high-performance booster module designed to efficiently step up a lower input voltage to a higher output voltage. As a significantly more powerful successor to the aging LM2577, the XL6009 utilizes high-frequency switching technology ($400$ kHz) to provide a stable, high-current output in a compact footprint. This board is a favorite for the engineering team at Robogears Private Limited when powering 12V LED strips or 24V solenoids from a single 3.7V Lithium-ion battery or a 5V USB power source.

Key Highlights

Superior Performance: Unlike the 50kHz switching frequency of older modules, the 400kHz frequency of the XL6009 allows for much smaller filter components and lower output ripple.
Wide Input/Output Range: Capable of taking as little as 3V and boosting it up to 35V, offering immense flexibility for battery-powered IoT devices.
Precision Tuning: Features an onboard multi-turn potentiometer (trimpot) for ultra-fine adjustment of the output voltage.
High Efficiency: With conversion efficiency reaching up to 94%, it ensures minimal power loss, which is critical for the long-term operation of portable robotic projects.
Built-in Protections: Includes over-temperature protection and short-circuit protection to safeguard your sensitive electronics during prototyping.

Technical Specifications

Output Ripple: < 50mV
Load Regulation: ± 0.5%
Voltage Regulation: ± 0.5%
Operating Temperature: -40°C to +85°C
Dimensions: 43mm x 21mm x 14mm

Typical Applications

Battery Power Management: Boosting a single 3.7V Li-ion cell to 5V for Arduino or 12V for DC motors.
Solar Power Systems: Stabilising fluctuating solar panel output for battery charging.
Automotive Electronics: Powering 19V/24V equipment from a standard 12V car battery.
LED Drivers: Driving high-voltage LED arrays from low-voltage DC sources.

Prototyping & Installation Tip

At your Pimpri workshop, always remember that this is a Step-Up (Boost) converter. The output voltage must always be set higher than the input voltage for the module to function correctly.

Important: If the output voltage does not change when you turn the potentiometer, turn it counter-clockwise for at least 15–20 full rotations. These multi-turn pots often ship at their maximum setting and require several turns before the voltage begins to drop/adjust.

Note: This product includes 1 x XL6009 DC-DC Step-Up Module. Product images are for illustration purposes only.
