Product Description

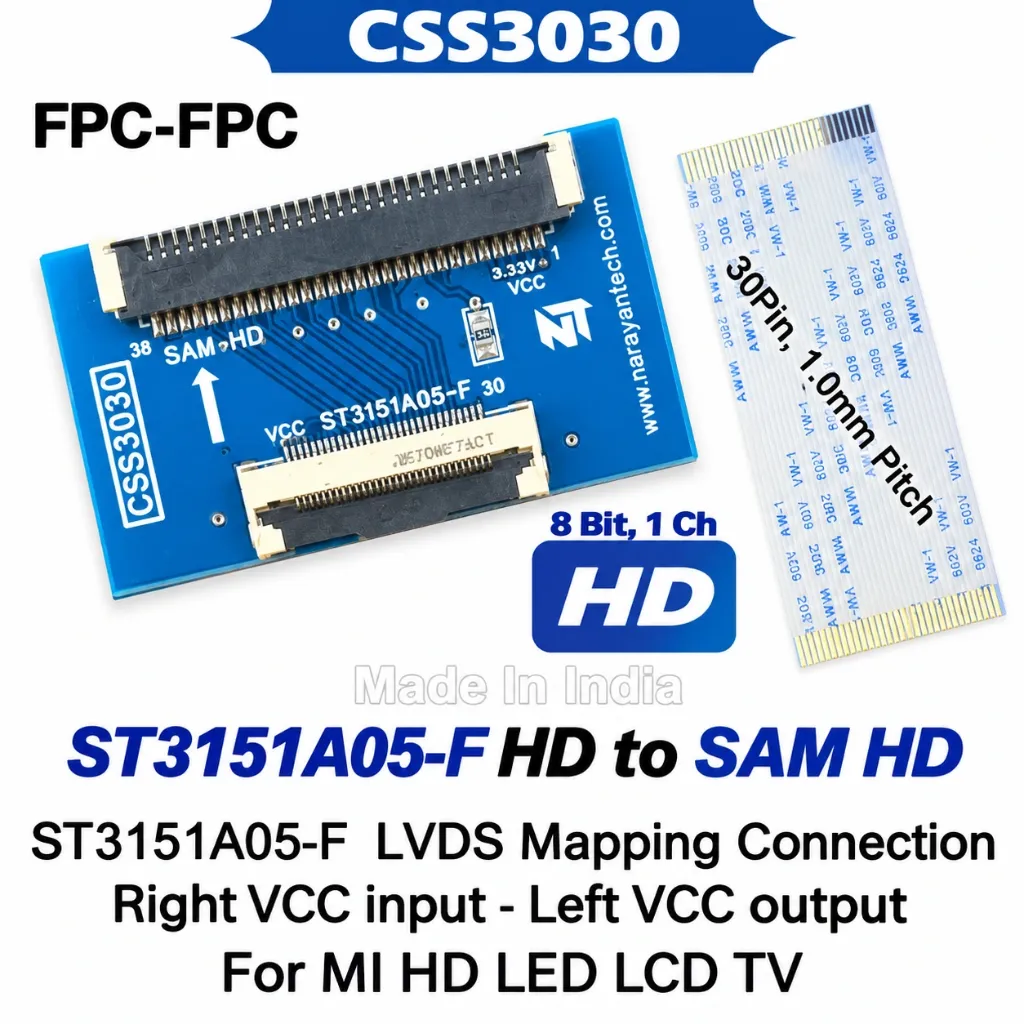

The CSS3030 LVDS Interface Board is a high-performance display controller bridge designed to interface various LCD and LED panels with standard video signals. LVDS is the industry standard for high-speed digital data transmission to display panels, and this board acts as the critical translator between your processor and the screen. The CSS3030 is highly versatile, supporting a wide array of panel resolutions and bit depths. Whether you are repurposing a laptop screen for a DIY monitor, building an industrial HMI, or developing a digital signage kiosk, this board provides the stable signal integrity required for flicker-free, high-definition visuals.
Key Features
Universal Compatibility: Supports a broad range of display panels from major manufacturers, covering various sizes and resolutions.
Jumper-Selectable Voltage: Features onboard jumpers to easily switch between 3.3V, 5V, and 12V panel power, preventing accidental damage to sensitive electronics.
High-Speed Data Transmission: Utilizes Low-Voltage Differential Signaling to minimize EMI and ensure high-speed data transfer over longer ribbon cables.
Compact PCB Design: The small footprint allows for easy integration into slim monitor housings or compact embedded enclosures.
Reliable Connector Interface: Equipped with high-quality pin headers that ensure a secure mechanical connection to LVDS ribbon cables.
