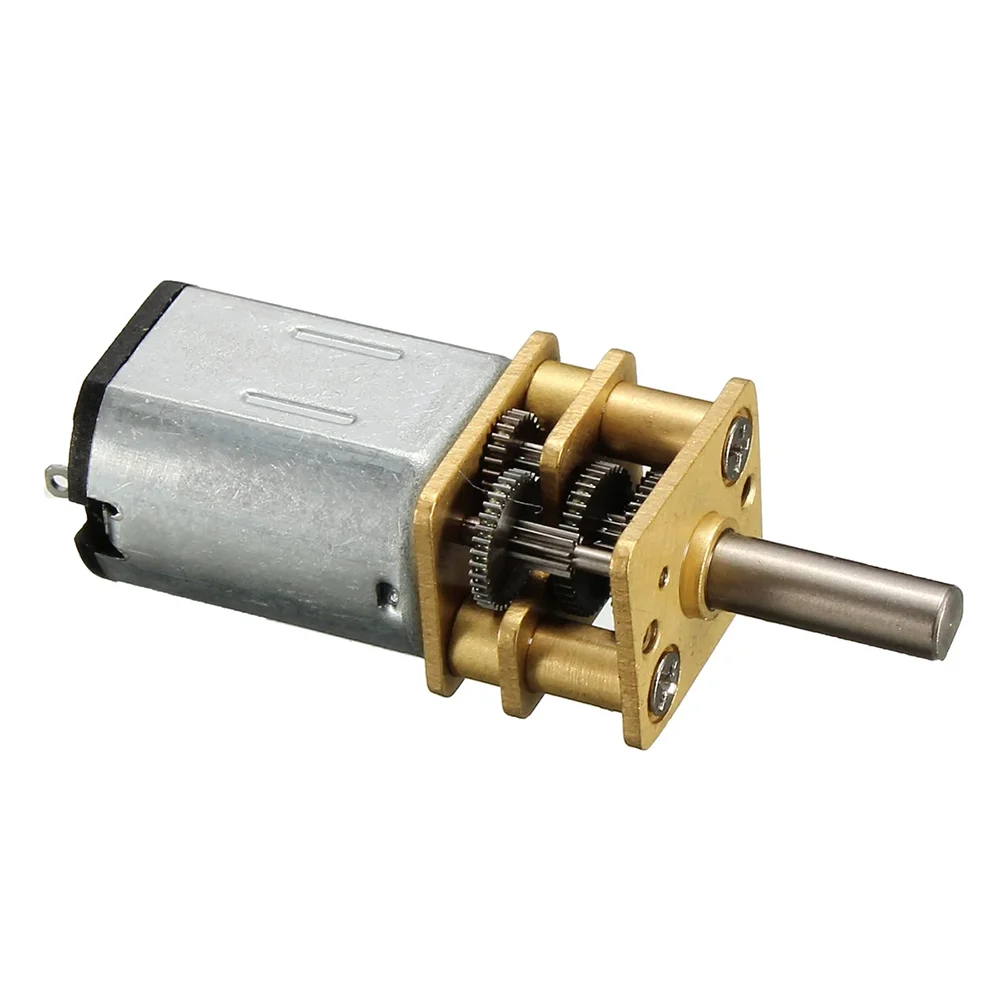

N20 3V 600 RPM Micro-Gear DC Motor

Product Description The N20 Micro Gear Motor is a compact, lightweight powerhouse designed for precision robotics and miniature mechanical systems. It combines a small coreless DC motor with a high-quality full metal reduction gearbox to provide a perfect balance of speed and torque. The "D" shaped output shaft ensures that gears and wheels stay securely attached without slipping, making it the industry standard for micro-sumo robots, smart door locks, and DIY hobby projects where space is extremely limited.

Key Features

• Miniature form factor ideal for space-constrained electronics.

• All-metal gear construction for high wear resistance and durability.

• High-speed 600 RPM output for rapid movement and response.

• D-shaped output shaft for secure mechanical coupling.

• Low power consumption, suitable for battery-operated handheld devices.

Prototyping and Engineering Tips from Robogears

• Mounting: Use N20-specific mounting brackets (available at Robogears) to secure the motor. Avoid applying pressure directly to the gearbox casing, as this can misalign the internal gears.

• Voltage Flexibility: While rated for 3V, these motors can safely run at 6V for short bursts if you need double the speed, though this will increase wear on the brushes over time.

• Shaft Cleaning: Ensure the D-shaft is free of oil or debris before mounting wheels. If a wheel is loose, a tiny drop of thread-locker can be used, but be careful not to let it seep into the gearbox.

• Driver Choice: A tiny H-Bridge like the MX1508 or DRV8833 is perfect for controlling these motors. Since they draw low current, you can easily run two of them from a single small driver module.

Package Includes

• 1 x N20 Micro Gear DC Motor (3V 600 RPM)

Disclaimer Product images are shown for illustrative purposes only and may vary from the actual product due to manufacturing changes, lighting conditions during photography, or batch updates. While we strive for accuracy, technical specifications are subject to change by the manufacturer without prior notice. Please ensure your circuit design accounts for current surges and thermal management. Extreme care should be taken when operating mechanical parts to avoid injury.
