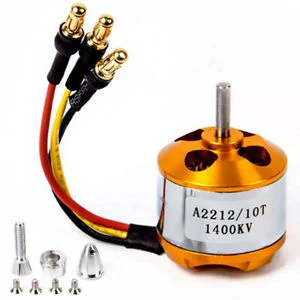

A2212 10T 1400KV Brushless Motor for Drone (Soldered Connector)

Specification	Details
Model	A2212 / 10T
KV Rating	1400 RPM/V
Max Efficiency	80%
Max Efficiency Current	4A - 10A (>75%)
Current Capacity	12A / 60s
No Load Current (@10V)	0.5A
Shaft Diameter	3.17 mm

Price

₹ 381.36

(Tax included)

Barcode: 2154154

Product Description

The A2212 10T 1400KV Brushless Motor is a versatile and reliable outrunner BLDC motor designed for a wide range of aerial robotics and radio-controlled projects. With a 1400KV rating, this motor offers a perfect middle ground between high speed and high torque, making it an excellent choice for trainer RC planes, medium-sized quadcopters, and fixed-wing gliders. The "Outrunner" architecture features an external rotating bell that provides consistent torque for driving larger propellers compared to higher KV variants. For ease of installation, this motor comes with factory-soldered 3.5mm Gold Bullet connectors, ensuring a secure, low-resistance electrical path to your Electronic Speed Controller (ESC) right out of the box.

Key Features

Balanced 1400KV Performance: Optimized for mid-range efficiency, providing enough RPM for speed while maintaining the torque needed for stable flight.
Pre-Soldered Bullet Connectors: Includes 3.5mm male bullet connectors already attached to the motor leads, saving time and preventing soldering errors.
High-Grade Copper Windings: 10T (Turns) of high-temperature copper wire ensure the motor can handle sustained currents without thermal degradation.
Tough Outrunner Bell: Features high-strength Neodymium magnets and a balanced steel casing to minimize vibration and maximize magnetic flux.
Standard Mounting Pattern: Universal 16mm/19mm mounting holes fit most standard motor mounts, making it a "drop-in" replacement for many RC kits.

Technical Details

Compatible ESC: 30A Brushless ESC.
Recommended Propeller: 8x4.5, 8x6, or 9x4.7 (SF).
Battery Support: 2S - 3S LiPo (7.4V - 11.1V).

Prototyping and Engineering Tips from Robogears

Propeller Matching: CRITICAL: The 1400KV version is best paired with 8-inch to 9-inch propellers. Using a propeller smaller than 7 inches will result in very low thrust, while using a 10-inch or larger propeller on a 3S LiPo may draw more than 12A, potentially burning the motor or the ESC.
ESC Calibration: After connecting the motor to your ESC, always perform a throttle calibration through your flight controller or RC receiver. This ensures the motor starts spinning at the lowest throttle position and reaches its maximum RPM at full throttle.
Correct Rotation Direction: To reverse the direction of the motor, simply swap any two of the three bullet connector wires. There is no fixed "Positive" or "Negative" wire on a 3-phase brushless motor.
Safety First: Before testing the motor on your workbench, REMOVE THE PROPELLER. A brushless motor can reach full speed in a fraction of a second, and a spinning propeller can cause severe injury if it catches a loose wire or finger.
Bearing Maintenance: If the motor starts making a "whining" or "grinding" noise after several flights, it may have sucked in sand or fine dust. Use a drop of high-speed bearing oil or use compressed air to clean the gap between the rotor (the bell) and the stator (the coils).

Package Includes

1 x A2212 10T 1400KV Brushless Motor
1 x Propeller Adapter (Collet Type)
1 x Motor Mount (X-Type)
4 x Mounting Screws

Disclaimer: This motor is designed for RC hobby use only. Ensure the motor is securely bolted to the frame; a loose motor can vibrate and snap its mounting screws mid-flight. Always verify that your ESC is rated for at least 30A to handle current spikes. Do not run the motor at full throttle without a propeller (no-load) for more than a few seconds, as it can over-rev and damage the bearings.
