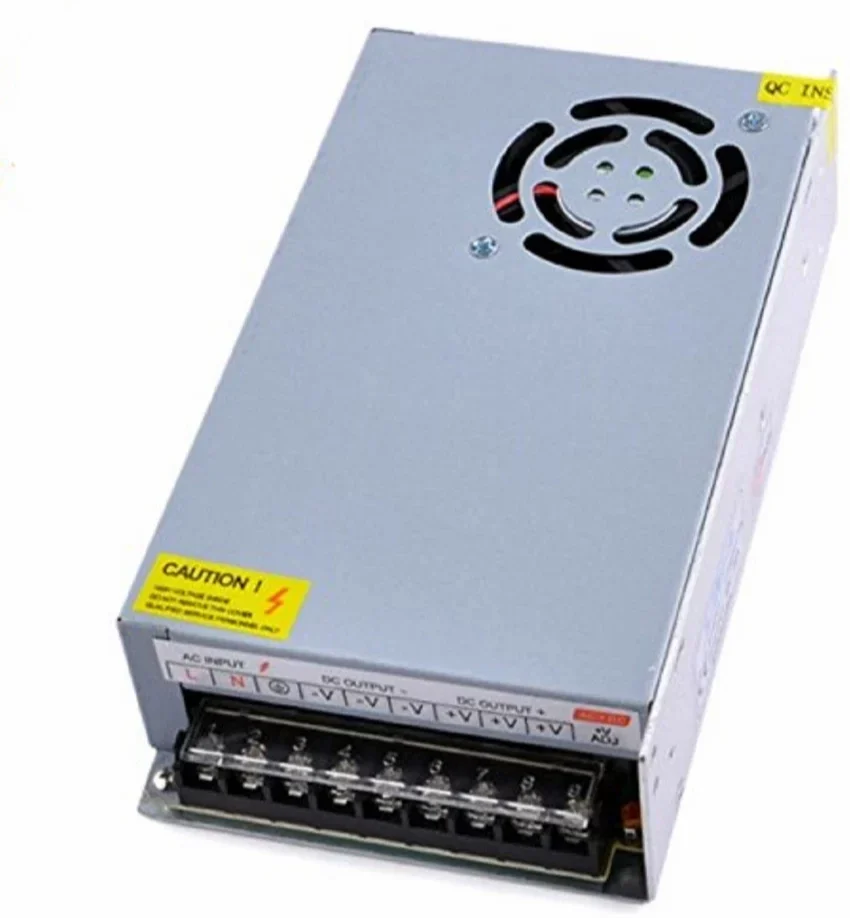

24V 20A 240W Metal SMPS - High Power DC PSU with Cooling

Specification	Details
Product Type	Metal Enclosed Switching Mode Power Supply
Model	24V 20A 240W SMPS
Input Voltage	AC 110V / 220V
Input Frequency	50/60Hz
Output Voltage	24V DC
Maximum Output Current	20A
Rated Power	240W
Output Adjustment	Adjustable DC output
Cooling	Built-in cooling fan
Protection	Overload, over-voltage & short-circuit protection*
Enclosure	Perforated metal housing
Cooling Method	Forced-air cooling
Output Terminals	Multiple V+ / V− terminals
Input Terminals	L / N / Earth
Applications	LED strips, CNC machines, robotics, automation, motors, industrial electronics
Installation	Indoor / enclosed electrical installation
Weight	Approx. 0.6–0.8 kg*

Price

🚚 Ships within 24 Hours
📦 Pan India Delivery

₹ 1,440.68

(Tax included)

Barcode: 9003716

Product Description

The 24V 20A 240W Metal SMPS is a high-power enclosed switching power supply designed to provide a stable 24V DC output at up to 20A. Its metal enclosure and built-in cooling fan make it suitable for applications requiring continuous DC power and efficient heat dissipation.

The power supply features clearly marked AC input and DC output terminals, with multiple output terminals for convenient connection of high-current loads. The adjustable output section allows fine voltage adjustment when required by the application.

It is suitable for robotics, automation systems, CNC machines, LED lighting, industrial controllers, DC motors, 3D printers and other 24V electronics projects.

Key Features

⚡ 24V DC / 20A high-current output
🔋 240W maximum rated power
🌀 Built-in cooling fan for improved thermal management
🛡️ Designed with protection features for safer operation*
🔧 Adjustable DC output voltage
🏗️ Strong perforated metal enclosure
🔌 Multiple DC output terminals for easier high-current wiring
🌡️ Forced-air cooling for high-load applications
🤖 Suitable for robotics and industrial automation projects
💡 Ideal for 24V LED strips and lighting systems
⚙️ Suitable for CNC, motors and other 24V equipment

Technical Details

Input: Connect AC supply to the marked L, N and Earth terminals.

Output: Connect the load to the marked V+ and V− terminals.

At the rated 24V output:

24V × 20A = 240W

For continuous operation, it is good engineering practice not to operate the SMPS continuously at its absolute maximum rating. Keep adequate ventilation around the unit and ensure the cooling fan is unobstructed.

RoboGears Engineering Tips 🛠️

⚠️ Mains AC is dangerous. Installation should be performed by a qualified person.
Always connect Earth/Ground properly to the metal enclosure.
Verify the output voltage with a multimeter before connecting sensitive electronics.
Use appropriately rated wires and connectors for currents approaching 20A.
For long-duration/high-load operation, provide sufficient airflow around the SMPS.
Do not short the V+ and V− terminals.
Check the required voltage and current of your load before connecting it.
If powering motors, consider the motor's startup/stall current, which can be significantly higher than its normal operating current.

Package Includes

1 × 24V 20A 240W Metal Enclosed SMPS Power Supply

Disclaimer

*Protection features, dimensions, weight and electrical specifications can vary slightly between manufacturing batches. Always verify the label/specifications on the actual unit before installation. This product contains exposed mains terminals and is intended for technically competent installation. RoboGears is not responsible for damage caused by incorrect wiring, overload, improper installation or misuse.
