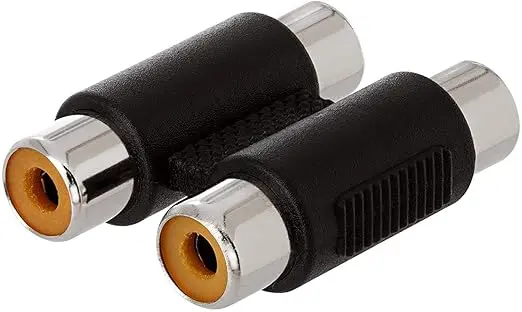

2 RCA Female to 2 RCA Female Coupler Converter Jointer Jack

Prototyping and Engineering Tips from Robogears

• Maintaining Audio Quality: While couplers are convenient, every "break" in a cable adds a small amount of resistance and potential for interference. For high-fidelity audio, ensure your male RCA plugs are clean and fit snugly into the coupler. A loose connection can cause a persistent 50Hz/60Hz "hum."

• The Video Hack: Although color-coded for stereo audio (Red/White), this coupler can also be used to extend Composite Video cables (Yellow). Simply use one of the channels for the video signal—the electrical properties of the RCA jack remain the same regardless of the plastic color.

• Cable Strain Relief: If you are using heavy-duty shielded RCA cables, the combined weight at the coupler point can put stress on your equipment's jacks. Use a small zip-tie or a 20cm LiPo Strap to secure the coupler to a fixed point, preventing the weight from pulling the cables loose.

• Outdoor/Mobile Warning: These couplers are not waterproof. If using them for an outdoor PA system or in a mobile robotic platform, wrap the joined connection in Heat Shrink Tubing or electrical tape to prevent moisture from corroding the internal nickel plating.

• Troubleshooting Static: If you hear "cracking" sounds when moving the cables, it is likely oxidized contacts. Unplug the cables, spray a tiny amount of electronic contact cleaner into the female sockets, and plug/unplug the male jacks a few times to scrub the internal surfaces clean.

Package Includes

• 1 x 2 RCA Female to 2 RCA Female Coupler Converter

Disclaimer: Ensure that all cables are fully inserted into the coupler to prevent signal dropouts. Do not use excessive force when plugging in jacks to avoid cracking the molded plastic housing. This adapter is intended for line-level signals and should not be used for high-voltage power applications.
