AD8232 Heart Rate Monitor Kit with ECG Sensor Module – Single-Lead Heart Rate Monitor Front End for Arduino, Robotics

AD8232 Heart Rate Monitor Kit with ECG Sensor Module – Single-Lead Heart Rate Monitor Front End for Arduino, Robotics

(0 review)
ParameterDetailed Specification
Main ChipAD8232 (Analog Devices)
Operating Voltage3.3V DC
Output TypeAnalog Output
Interface3.5mm Jack (for ECG Leads)
Leads3-Lead System (RA, LA, RL)
FilterIntegrated Two-Pole Adjustable High-Pass Filter
On-board IndicatorLED for Heartbeat Visualization
Price
₹ 398.31 ₹ 398.31
(Tax included)

Barcode: 3279788

Product Description

Unlock the power of biomedical engineering with the AD8232 Heart Rate Monitor Kit. This specialized module is a cost-effective integrated front-end designed to extract, amplify, and filter small bio-potential signals in the presence of noisy conditions. At Robogears, we recommend the AD8232 for its exceptional ability to produce a clear Electrocardiogram (ECG) wave from just three leads. The module acts as an op-amp specifically tuned for heart rate monitoring, featuring a specialized filter that eliminates the motion artifacts often caused by breathing or limb movement. Whether you are building a fitness tracker or a medical diagnostic prototype at your Pimpri workshop, this kit provides a professional-grade starting point for heart rate data acquisition.

Detailed Key Features

  • Single-Lead Front End: Specifically designed to extract and amplify biopotential signals from the heart while rejecting electrode half-cell potential.


  • Integrated High-Pass & Low-Pass Filtering: Features a two-pole high-pass filter that eliminates motion artifacts and a three-pole low-pass filter to remove line noise.

  • Fast Restore Function: Includes a "Fast Restore" feature that quickly recovers the signal after lead-off conditions or abrupt signal changes.


  • 3.5mm Bio-medical Connector: Equipped with a standard 3.5mm jack for easy connection to the included electrode cables, ensuring a secure and low-noise interface.


  • Leads-Off Detection: Built-in circuitry detects if an electrode has become disconnected, providing a dedicated digital output for system monitoring.

All Technical Details

  • Analog Output: The signal can be directly connected to the Analog-to-Digital Converter (ADC) of an Arduino or ESP32 for easy digital processing.

  • Power Efficiency: Designed for low-power operation at 3.3V, making it suitable for battery-operated wearable prototypes.

  • Common-Mode Rejection: Features high CMRR (Common-Mode Rejection Ratio) to ensure the heartbeat signal is clean even in electrically noisy environments.

  • Applications: Portable ECG monitors, fitness heart rate trackers, game control via biometrics, and educational health-tech projects.

Prototyping & Engineering Tips (Robogears Exclusive)

  • Electrode Placement: For the best signal at your Pimpri facility, follow the standard triangle placement: Right Arm (RA), Left Arm (LA), and Right Leg (RL) for the reference electrode. Using medical-grade conductive gel can further improve signal clarity.

  • Power Stability: The AD8232 is sensitive to power supply noise. We suggest adding a 10uF capacitor across the 3.3V and GND pins of the module to filter out ripple from your microcontroller's regulator.

  • Safety First: This module is for educational and prototyping purposes only. It should never be used for medical diagnosis or life-critical applications. Never connect the electrodes to a subject while the microcontroller is powered by a wall-socket AC adapter; use a battery to ensure complete electrical isolation.

  • Serial Plotter: To see your heartbeat in real-time, use the "Serial Plotter" tool in the Arduino IDE. Simply analogRead() the signal pin and Serial.println() the value to visualize the ECG wave.

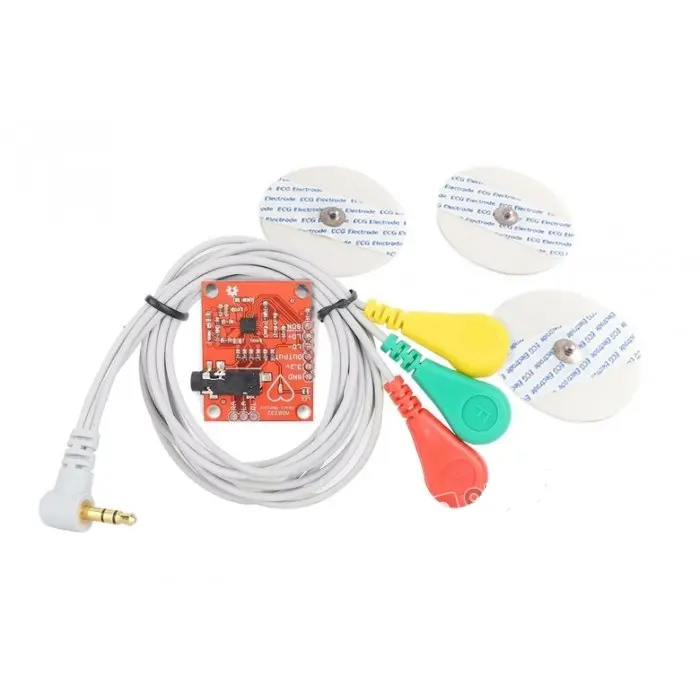

Package Includes

  • 1 x AD8232 Heart Rate Monitor Module

  • 1 x 3-Lead ECG Connector Cable (3.5mm Jack)

  • 3 x Disposable ECG Electrodes (Pads)

Image Disclaimer

Product images are shown for illustrative purposes only. The color of the PCB (typically purple or green) or the specific brand of capacitors may vary slightly between manufacturing batches, but the AD8232 technical performance and kit components remain as described.
