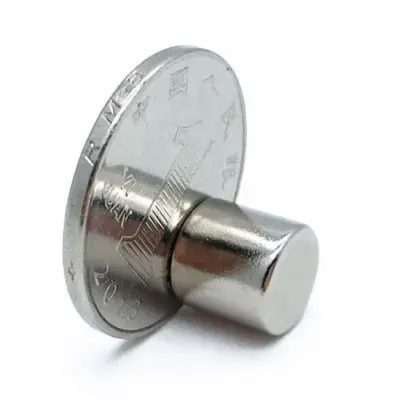

6x6mm Neodymium Cylinder Magnet N35 Grade Super Strong Rare Earth Magnet

6x6mm Neodymium Cylinder Magnet N35 Grade Super Strong Rare Earth Magnet

(0 review)
ComponentSpecification
Magnet TypeNeodymium (NdFeB)
ShapeCylinder / Column
Diameter6mm
Height6mm
GradeN35
CoatingNickel-Copper-Nickel (Ni-Cu-Ni)
MagnetizationAxial (Top to Bottom)
Price
₹ 25.42 ₹ 25.42
(Tax included)

Product Description The 6mm x 6mm Neodymium Cylindrical Magnet is a high-strength rare-earth magnet known for its exceptional power-to-size ratio. Despite its small footprint, this N35 grade cylinder provides a very strong magnetic pull, making it a favorite for precision engineering and compact assemblies. The triple-layer nickel plating ensures a shiny, smooth finish and provides essential protection against corrosion and oxidation.

Key Features

  • Compact Power: Small 6mm dimensions with a high-intensity magnetic field for localized "holding" force.

  • Triple Layer Coating: Ni-Cu-Ni plating offers a durable, rust-resistant barrier and a professional look.

  • Axial Magnetization: The poles are located on the flat circular ends, perfect for stacking or vertical attachment.

  • Precision Sizing: Ideal for tight tolerances in robotics, 3D printing, and consumer electronics.

  • Versatile Shape: The cylindrical height-to-width ratio (1:1) makes it stable for insertion into drilled holes.

Technical Details

  • Material: Sintered Neodymium-Iron-Boron.

  • Max Operating Temp: 80°C (Standard for N35 grade).

  • Pull Force: High vertical lift capacity relative to its 0.17cm³ volume.

Prototyping and Engineering Tips from Robogears

  • The "Flush Mount" Trick: This magnet is perfect for hidden latches. Drill a 6mm hole into a plastic or wooden part, drop the magnet in, and cover it with a thin layer of filler or tape for a "magical" invisible connection.

  • Sensor Activation: Use this cylinder to trigger Hall Effect sensors or Reed switches on rotating robot arms. Its axial magnetization provides a clean on/off signal as it passes the sensor.

  • Stacking Power: If you need more strength but have limited diameter, stack two of these to double the height. This increases the magnetic reach (flux density) without requiring a wider mounting hole.

  • Fragility Alert: Neodymium is essentially a "metallic ceramic." They are very brittle. If two magnets snap together from a distance, they can chip or shatter. Always handle with a firm grip and slide them apart rather than pulling.

Package Includes

  • 1 x 6mm x 6mm Neodymium Cylindrical Magnet

Disclaimer Images are for reference; actual dimensions may have a small tolerance. SAFETY WARNING: Keep away from children (choking and pinch hazard), pacemakers, and sensitive electronics like old hard drives or credit cards.
