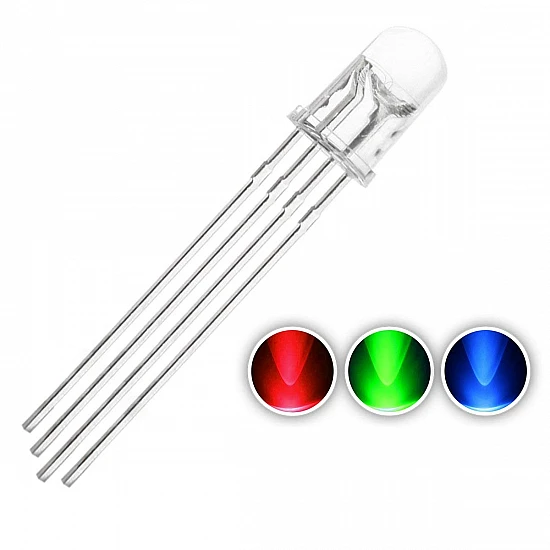

5mm RGB LED 4-Pin Common Cathode (CC) Multi-Colour Light (Pack of 5)

Component	Specification
LED Type	RGB Through-Hole (DIP)
Diameter	5mm
Configuration	Common Cathode (CC)
Lens Appearance	Water Clear (Transparent)
Forward Voltage (Red)	1.8V – 2.2V
Forward Voltage (Green/Blue)	3.0V – 3.4V
Forward Current (If)	20mA per Color
Pin Count	4 Pins

Price

🚚 Ships within 24 Hours
📦 Pan India Delivery

₹ 16.95

(Tax included)

Barcode: 378896

Product Description The 5mm 4-Pin RGB LED is a versatile light source that combines Red, Green, and Blue diodes into a single 5mm package. This version is a Common Cathode (CC) configuration, meaning all three internal LEDs share a single negative ground pin. By providing power to the individual color pins and varying the voltage (using PWM), you can create thousands of colors, from vibrant purples and cyans to a crisp white. The water-clear lens ensures a high-intensity, focused beam, making it perfect for custom indicators, mood lighting, and robotics projects where you need to display multiple status states with a single component.

Key Features

Full-Color Spectrum: Create any color by mixing Red, Green, and Blue intensities.
Common Cathode Design: Simplifies wiring for most microcontroller projects (one ground pin for all colors).
Focused Brilliance: Water-clear lens provides maximum brightness and a sharp, point-source light.
Compact Integration: Replaces three individual LEDs with one space-saving 5mm component.
Through-Hole Mounting: Standard 4-pin layout fits breadboards and perf-boards easily.

Pin Configuration

Pin 1: Red Anode (+)
Pin 2: Common Cathode (-) [Longest Pin]
Pin 3: Green Anode (+)
Pin 4: Blue Anode (+)

Technical Details

Operating Temperature: -25°C to +85°C
Storage Temperature: -30°C to +100°C
Soldering Temp: 260°C for less than 5 seconds
Luminous Intensity: Red (2000 mcd) / Green (5000 mcd) / Blue (3000 mcd)

Prototyping and Engineering Tips from Robogears

Resistor Selection is Critical: Because each color has a different forward voltage, you must use different resistor values for each pin to ensure uniform brightness and prevent burnout.
- For 5V (Arduino): Use a 150Ω to 220Ω resistor for Green and Blue, and a 220Ω to 330Ω resistor for Red.
PWM Color Mixing: To create colors like orange or pink, connect the three anode pins to PWM-enabled pins on your Arduino (like D3, D5, and D6). Use the analogWrite() command to blend the intensities.
The Longest Pin: Always identify the longest pin first—that is your Ground (Cathode). The other three pins are for the colors.
Diffuser Tip: Because the lens is clear, you might see individual red, green, and blue spots if you look closely. If you want a perfectly blended "single" color, place a small piece of translucent white tape over the LED or use it with a 3D-printed diffuser.

Package Includes

5 x 5mm 4-Pin RGB Common Cathode LEDs

Disclaimer Images are for reference; actual luminous intensity may vary slightly by production batch. DO NOT connect any pin directly to a power source without a current-limiting resistor.
