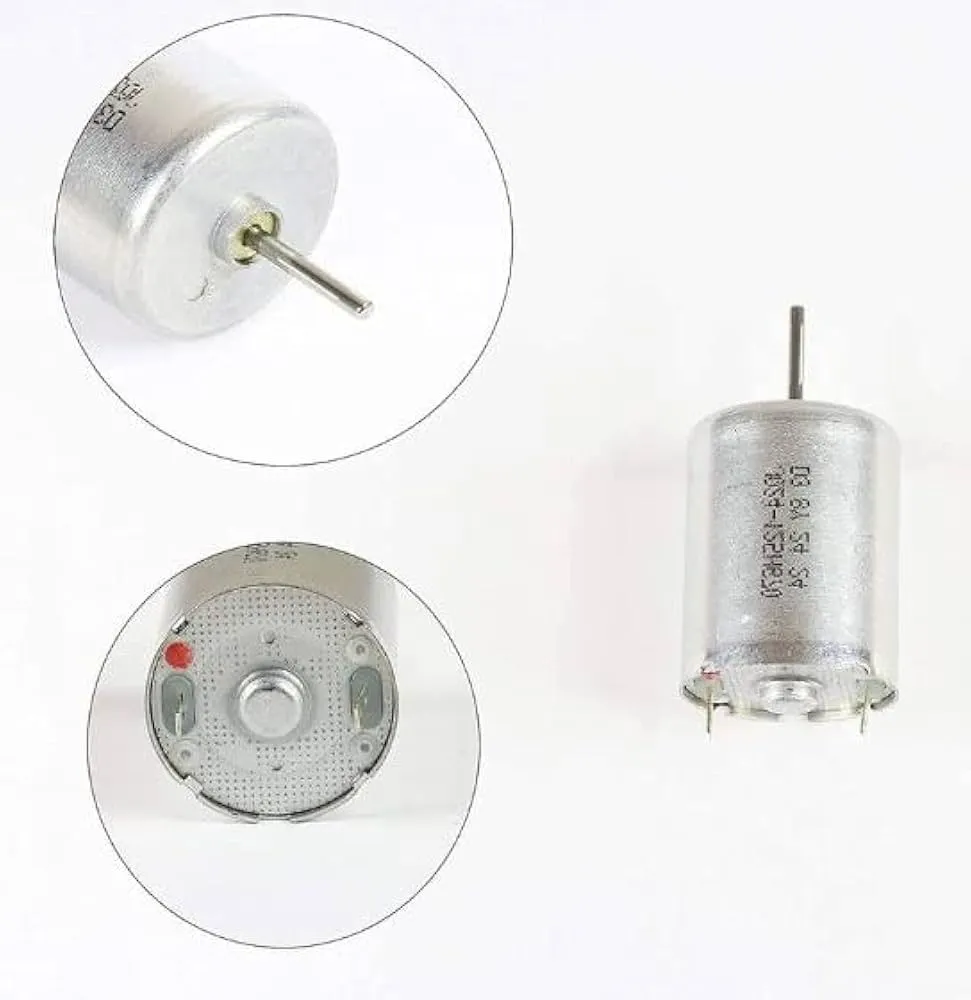

Dynamo Generator Motor DC High-Speed Motor 4-12 Volts

The DC Dynamo Generator Motor 4V–12V is a compact high-speed dual-purpose DC motor and generator designed for educational experiments, robotics, renewable energy demonstrations, and DIY electronics projects. This motor can operate both as a DC motor and as a mini power generator, making it ideal for windmill models, hand-crank generators, and STEM learning applications.

Key Features:

• Dual Function Design works both as a DC motor and as a mini generator for versatile experimentation.
• High-Speed Operation supports fast rotational output suitable for generator and turbine projects.
• Compact Metal Body Construction provides durability and reliable mechanical performance.
• Wide 4V–12V Operating Range allows compatibility with batteries, DIY circuits, and educational setups.
• Ideal for STEM Projects including wind energy demonstrations, robotics, and science exhibition models.

Technical Details:

• Product Type: DC Dynamo Motor / Generator
• Operating Voltage: 4V – 12V DC
• Rated Speed: Up to 10000 RPM
• Rated Power: Approx. 28W
• Rated Current: ≤0.5A
• No Load Current: Approx. 0.28A
• Shaft Diameter: Approx. 2mm
• Shaft Length: Approx. 5mm
• Body Material: Metal Housing
• Rotation Type: High-Speed Rotary Motion

• Supported Applications:

  • Windmill Projects
  • DIY Generators
  • Science Experiments
  • Robotics Projects
  • Renewable Energy Demonstrations
  • Hand Crank Power Generation
