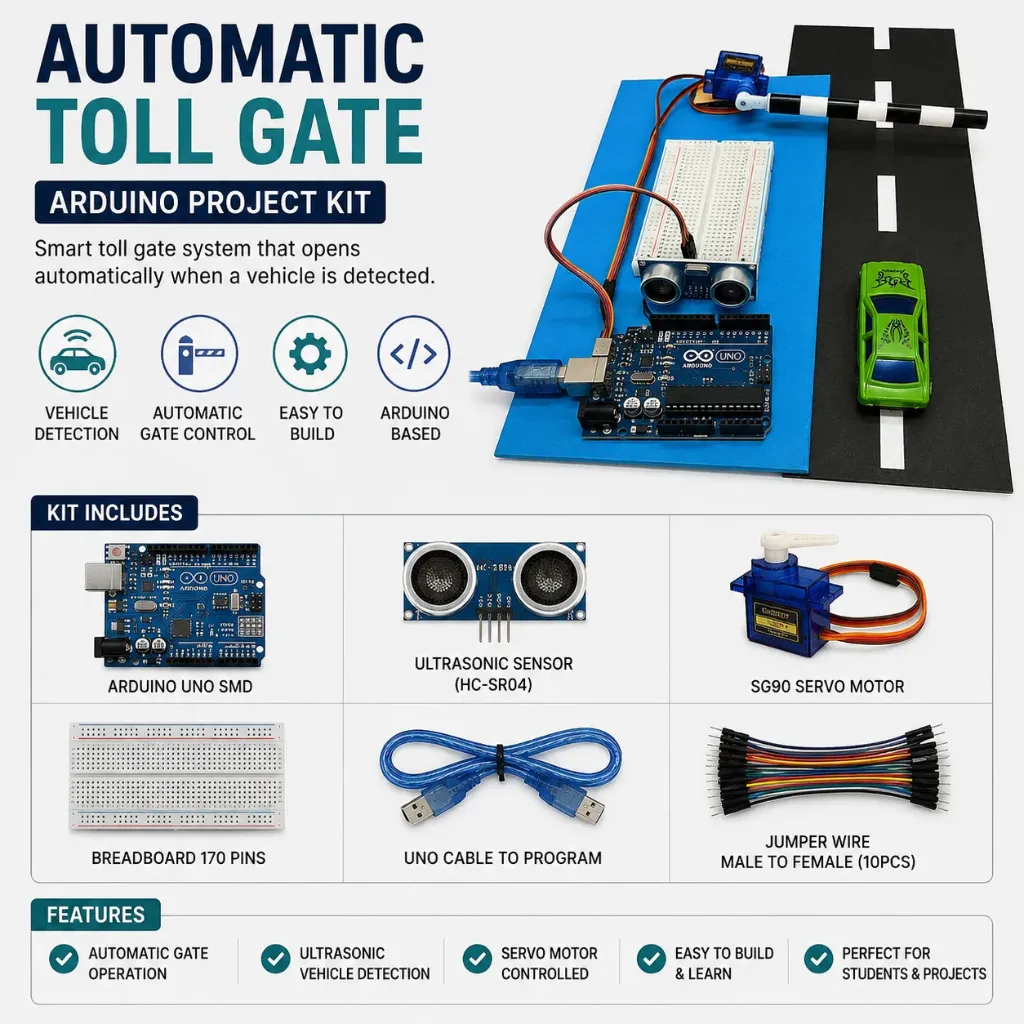

Automatic Toll Gate Using Arduino and Ultrasonic

(0 review)
SpecificationDetails
Project TypeAutomatic Toll Gate System
Controller BoardArduino UNO Compatible(Pre-Programmed)
Sensor TypeHC-SR04 Ultrasonic Sensor
Gate MechanismServo Motor Controlled Barrier
Operating Voltage5V DC
ApplicationAutomation & Smart Traffic Projects
Price
₹ 719.49 ₹ 719.49 ₹ 1,199.00
(Tax included)

Barcode: 60121

The Automatic Toll Gate Arduino Project Kit is an educational smart automation system designed for students, robotics enthusiasts, and embedded system learners. Using an HC-SR04 ultrasonic sensor, Arduino UNO, and servo motor, the system automatically detects approaching vehicles and opens the gate barrier, making it ideal for smart traffic management, automation learning, and STEM-based engineering projects.

Code Link-https://drive.google.com/file/d/1eM675oA1J6KR4tt2C_bQkigzvA_VSmu3/view?usp=sharing

Key Features:

  • Automatic Vehicle Detection System uses ultrasonic sensing technology to detect approaching vehicles in real time.
  • Servo Motor Controlled Gate automatically opens and closes the toll barrier based on object distance.
  • Arduino Based Automation Platform helps students learn sensor interfacing and motion control programming.
  • Practical Smart Traffic Concept demonstrates real-world toll plaza and parking gate automation principles.
  • DIY Educational Project Kit suitable for school exhibitions, engineering mini projects, and robotics learning.

Technical Details:

  • Product Type: Smart Automation Project Kit
  • Controller Board: Arduino UNO Compatible
  • Sensor Module: HC-SR04 Ultrasonic Sensor
  • Actuator Type: Servo Motor
  • Operating Voltage: 5V DC
  • Detection Method: Ultrasonic Distance Measurement
  • Gate Rotation Angle: 0° – 180°
  • Communication Interface: Jumper Wire Connections
  • Programming Platform: Arduino IDE

  • Power Supply Support:

    • USB Power
    • External 5V Adapter
  • Detection Range: Approx. 2cm – 400cm

  • Suitable Applications:

    • Smart Toll Gate Systems
    • Parking Automation
    • Traffic Control Projects
    • STEM Learning
    • Embedded Systems Training

Prototyping and Engineering Tips from Robogears:

  • Position the ultrasonic sensor facing directly toward the vehicle path to improve detection accuracy and gate response timing.
  • Use a lightweight gate barrier arm to reduce servo motor load and achieve smoother opening and closing operation.
  • Secure all jumper wire connections firmly during testing to prevent unstable sensor readings or servo jitter.

Package Includes:

  • 1 x Arduino UNO Compatible Board
  • 1 x HC-SR04 Ultrasonic Sensor Module
  • 1 x Servo Motor
  • 1 x Breadboard
  • 1 x USB Cable
  • 1 x Jumper Wire Set
  • 1 x Automatic Toll Gate Project Components Kit

Disclaimer:

This kit is intended for educational, DIY, and prototyping applications only. Assembly, coding, and calibration are required before operation. Barrier structure, mounting base, and decorative project materials may vary depending on project setup requirements. Arduino sample code compatibility based on uploaded reference:
