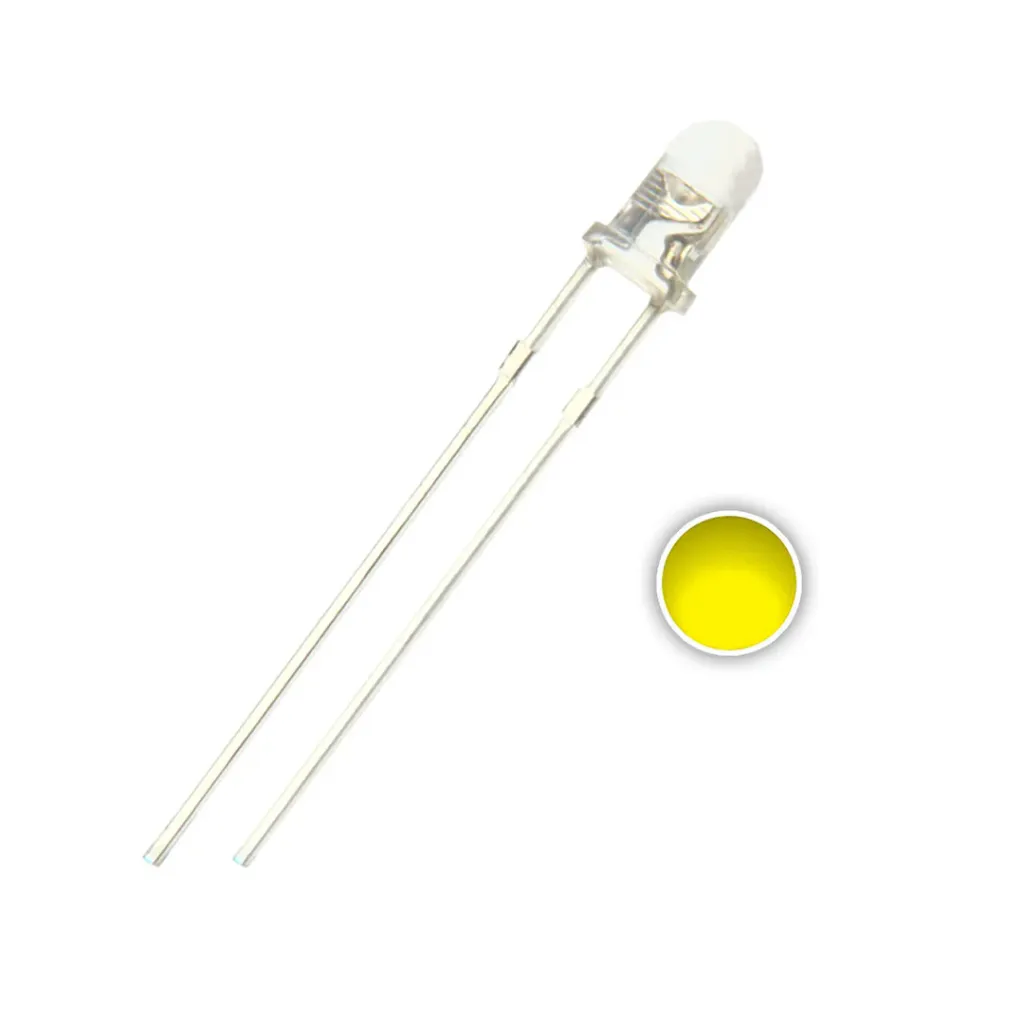

5mm DIP LED Yello (Pack of 5)

5mm DIP LED Yello (Pack of 5)

(0 review)
ComponentSpecification
LED TypeStandard DIP (Through-Hole)
Diameter5mm
Emitting ColorGolden Yellow / Amber
Lens AppearanceWater Clear (Transparent)
Forward Voltage (Vf)2.0V – 2.4V
Forward Current (If)20mA (Standard) / 30mA (Max)
Luminous Intensity3000 – 5000 mcd
Viewing Angle20° – 30° (Narrow Beam)
Price
₹ 8.47 ₹ 8.47
(Tax included)

Product Description The 5mm Water Clear Yellow LED is designed for projects that require a high-intensity, focused beam of golden-yellow light. Unlike diffused LEDs that provide a soft, wide glow, this "water-clear" model features a completely transparent lens that allows the amber light to pass through with maximum brilliance and zero scattering. When the power is off, the LED is colorless and transparent; when turned on, it emits a powerful, sharp beam of yellow light. This makes it perfect for high-visibility warning signals, decorative spotlighting, and custom automotive or robotic indicators.

Key Features

  • Crystal Clear Transparency: Transparent housing provides a sleek, "stealth" look when the LED is inactive.

  • Focused High-Intensity Beam: Narrow 20°–30° viewing angle concentrates light into a bright spot, ideal for signal lamps and high-contrast indicators.

  • Rich Golden Hue: Produces a vibrant amber-yellow light (approx. 590nm) for superior visibility.

  • Universal 5mm Size: Standard through-hole leads fit perfectly into breadboards, PCBs, and 5mm mounting clips.

  • Industrial Build: Rugged epoxy construction ensures long-term clarity and resistance to yellowing over time.

Technical Details

  • Anode (+): Longer Lead

  • Cathode (-): Shorter Lead (Flat notch on the LED base)

  • Wavelength: 585nm – 595nm

  • Operating Temperature: -25°C to +85°C

  • Soldering Temp: 260°C for less than 5 seconds

Prototyping and Engineering Tips from Robogears

  • Voltage Awareness: Yellow LEDs typically operate at a lower forward voltage (2.0V – 2.4V) than blue or white versions. When powering from an Arduino (5V), we recommend using a 150Ω to 220Ω resistor. A 220Ω resistor is best for a steady indicator, while a 150Ω resistor will drive it to maximum brightness.

  • 3.7V Battery Integration: To run these from a Li-ion or Li-Po battery, use a 100Ω resistor. This safely manages the voltage gap as the battery moves from 3.7V to 4.2V, ensuring the yellow color stays a rich golden amber.

  • The "Spotlight" Effect: Because this lens is clear, the light is very directional. If you want a "soft glow," use our diffused version; if you want a "sharp beam" that is visible from a long distance, this is the one.

  • Signaling Logic: These high-brightness LEDs are excellent for "Caution" signals on a robot chassis. Because they are so bright, they can even be seen clearly in well-lit indoor environments or under direct sunlight.

Package Includes

  • 5 x 5mm Water Clear Yellow DIP LEDs

Disclaimer Images are for reference; actual yellow saturation may vary slightly by production batch. DO NOT connect directly to a power source without a current-limiting resistor, as this will lead to immediate failure of the LED.
