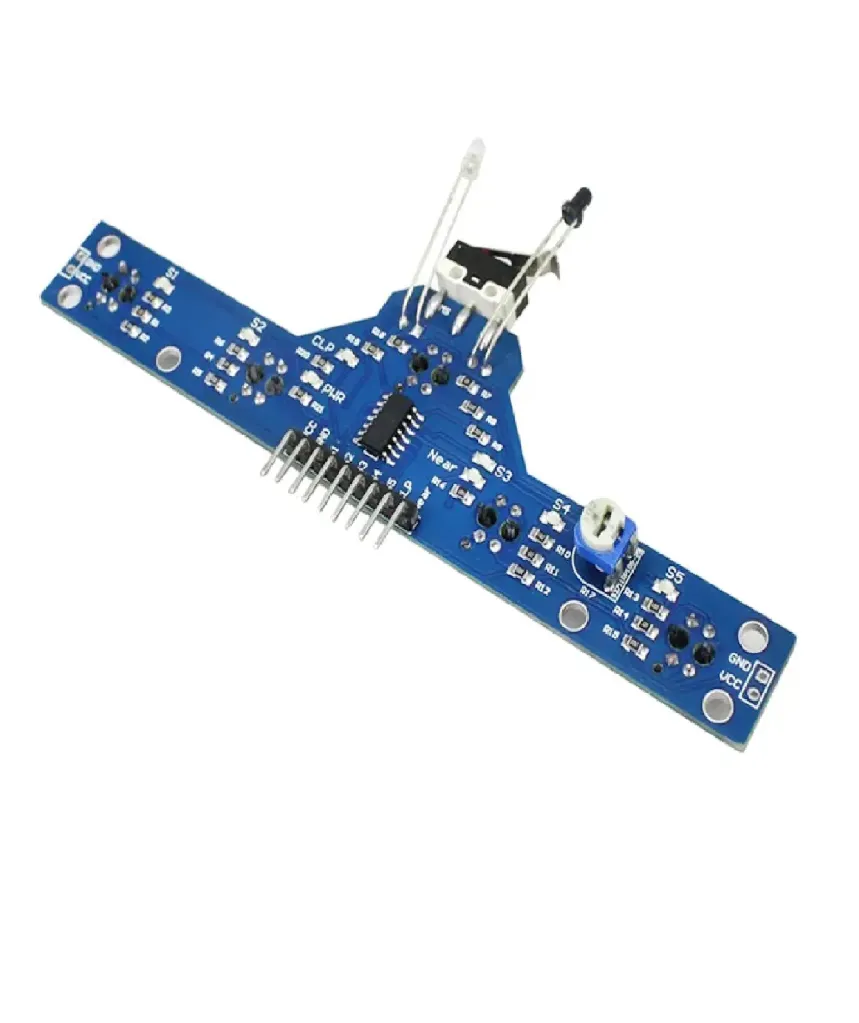

BFD-1000 Five-Channel Infrared Tracking Sensor – High-Precision Line Follower Module for Robotics & Obstacle Avoidance

Product Description The BFD-1000 is a high-performance, all-in-one sensor array designed specifically for advanced line-following robots and complex obstacle avoidance tasks. This module features five high-sensitivity infrared (IR) tracking channels arranged in a wide-array format, allowing for superior precision when navigating sharp turns or tracking complex paths. In addition to the tracking channels, it includes a front-facing infrared bump sensor and a physical tactile switch for comprehensive environmental feedback. The digital TTL outputs interface directly with microcontrollers like Arduino, STM32, and Raspberry Pi, providing real-time data on path alignment without the need for complex analog processing.

Key Features

• 5-Channel Array: Five strategically placed IR sensors ensure smooth and reliable line tracking even on non-linear or zig-zag paths.

• Integrated Obstacle Detection: Features a dedicated front IR sensor and a mechanical collision switch for enhanced safety during autonomous navigation.

• On-board Sensitivity Tuning: Equipped with high-precision potentiometers to calibrate each sensor for varying floor colors and ambient lighting.

• Visual Feedback LEDs: Each channel has a corresponding status LED that illuminates upon detecting a dark line, simplifying debugging and calibration.

• Optimized for Logic: Operates on a wide voltage range (3V to 5.5V), making it compatible with both 3.3V and 5V logic families.

Technical Details

• Sensing Principle: Uses the reflection of infrared light; the sensor distinguishes between light-absorbing dark surfaces and light-reflecting bright surfaces.

• Output Signal: Provides a clean Digital High/Low signal; high level indicates the detection of a dark line (surface absorbing IR).

• Detection Range: Optimized for short-range sensing (0.5cm to 4cm), which is the standard height for most hobbyist and competition robotic chassis.

• Collision Logic: The mechanical limit switch provides a failsafe "Physical Bump" signal, crucial for navigation in environments with transparent or non-reflective obstacles.

• Cross-Talk Prevention: The IR emitters and receivers are shrouded to minimize interference from sunlight or nearby high-frequency lighting.

• Response Frequency: High-speed switching capability allows for reliable tracking at higher robot velocities.

• Power Protection: Features low-power consumption logic, drawing minimal current while maintaining high signal integrity.

• Pin Configuration: Includes VCC, GND, and 7 individual output pins (S1, S2, S3, S4, S5, Near/IR Obstacle, and CLP/Collision).

• PCB Construction: Long-format FR-4 PCB designed to span the front of most standard-sized robotic kits for maximum coverage.

• Logic Compatibility: TTL outputs are directly compatible with 3.3V microcontrollers (ESP32) and 5V boards (Arduino Uno).

• Environment Stability: Calibrated to maintain accuracy across varied temperatures, ideal for indoor robotics competitions.

• Flexible Mounting: Multiple M3 mounting holes are distributed along the PCB for secure attachment to various chassis types.

• Signal Smoothing: Internal hardware logic reduces signal jitter, ensuring the robot doesn't "shiver" while following a path.

• Connector Type: Standard 2.54mm pitch headers for easy connection with female-to-female jumper wires.

• Multi-Surface Detection: Effective on black-on-white or white-on-black tracks depending on threshold adjustment.
