Bluetooth Robot DIY Kit with Arduino and Mobile Control

(0 review)
SpecificationDetails
Robot TypeBluetooth Controlled Robot
Controller BoardArduino UNO Compatible (Pre-Programmed)
Communication ModuleHC-05 Bluetooth Module
Motor DriverL298N Motor Driver Module
Drive Mechanism2WD Robot Chassis
Operating Voltage5V – 12V DC
Price
₹ 1,312.71 ₹ 1,312.71 ₹ 1,999.00
(Tax included)

Barcode: 72551175

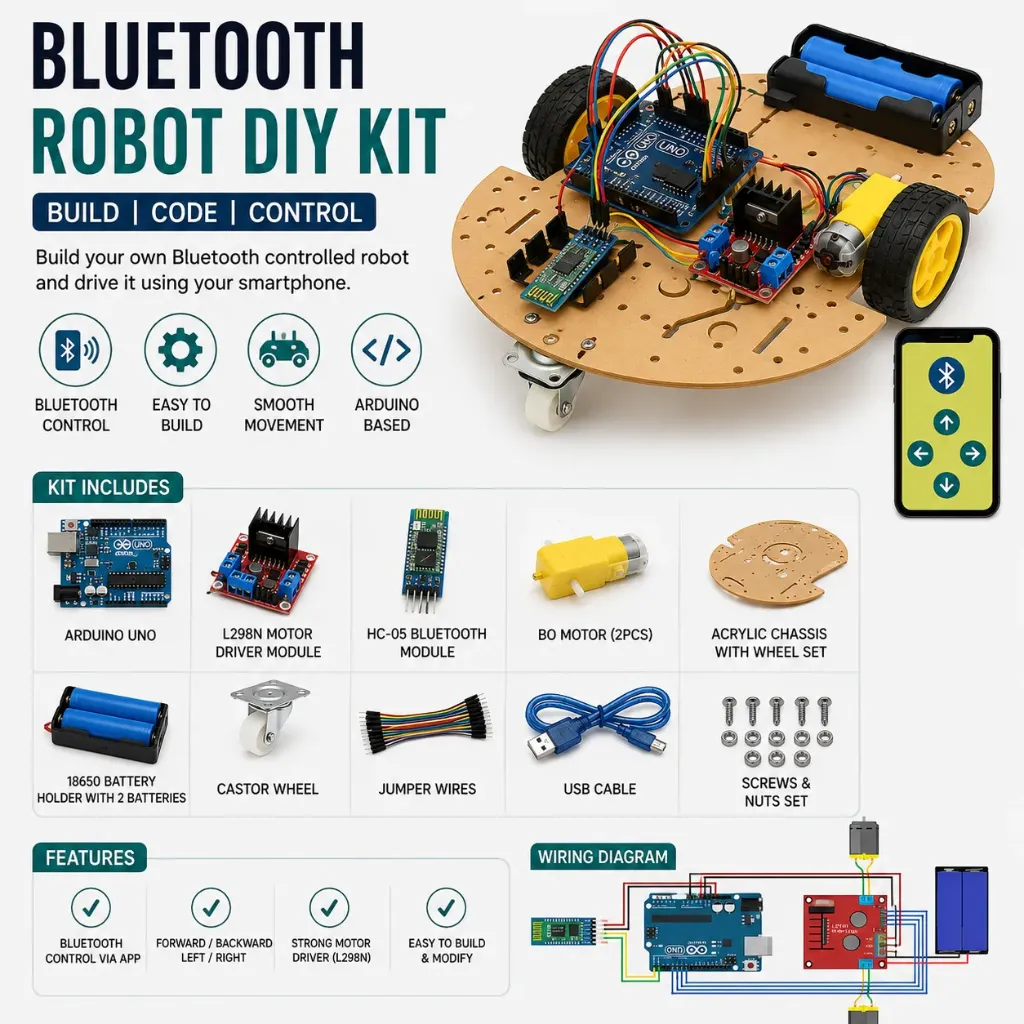

The Bluetooth Robot DIY Kit is an educational wireless robotic car kit designed for students, robotics enthusiasts, and embedded system learners. Using an Arduino UNO, HC-05 Bluetooth module, L298N motor driver, and mobile phone control, this robot can move wirelessly through a smartphone application, making it ideal for STEM learning, robotics practice, and DIY automation projects.

Code Link-https://drive.google.com/file/d/1LF9SFXbxqCQPiaRCpmKw6gSpEQr56E_M/view?usp=drive_link

Mobile Application Link-https://drive.google.com/file/d/15MAJOiFV9yaySs7mhQj0bqoIoeilygUB/view?usp=sharing

Key Features:

  • Wireless Bluetooth Control System allows real-time robot movement using a smartphone application.
  • Pre-Programmed Arduino Board Included enables quick setup and easy operation without complex coding requirements.
  • L298N Motor Driver Integration provides stable bidirectional DC motor control for smooth robot movement.
  • DIY Educational Robotics Platform ideal for robotics learning, engineering projects, and STEM education.
  • 2WD Robot Chassis Design offers stable movement and simple mechanical assembly for beginners.

Technical Details:

  • Product Type: Bluetooth Controlled Robot DIY Kit
  • Controller Board: Arduino UNO Compatible (Pre-Programmed)
  • Bluetooth Module: HC-05
  • Motor Driver Module: L298N H-Bridge
  • Drive Type: 2WD Differential Drive
  • Motor Type: DC Geared Motors
  • Communication Type: Bluetooth Wireless Control
  • Operating Voltage: 5V – 12V DC
  • Control Method: Android Mobile App
  • Chassis Material: Acrylic/DIY Robot Base
  • Power Source: Battery Powered
  • Programming Platform: Arduino IDE Compatible

  • Supported Robot Functions:

    • Forward Movement
    • Backward Movement
    • Left Turn
    • Right Turn
    • Stop Control

Prototyping and Engineering Tips from Robogears:

  • Pair the HC-05 Bluetooth module with the mobile application before powering the motors to ensure stable wireless communication.
  • Use fully charged batteries while testing the robot to prevent motor driver voltage drops and unstable movement.
  • Secure motor wires and jumper connections properly to avoid loose contacts during robot motion and turning operations.

Package Includes:

  • 1 x Arduino UNO Compatible Board (Pre-Programmed)
  • 1 x HC-05 Bluetooth Module
  • 1 x L298N Motor Driver Module
  • 2 x DC Geared Motors
  • 2 x Robot Wheels
  • 1 x Robot Chassis
  • 1 x Castor Wheel
  • 1 x Battery Holder
  • 1 x Jumper Wire Set
  • 1 x USB Cable
  • Mounting Hardware Set

Disclaimer:

This kit is intended for educational, DIY, and prototyping applications only. Assembly and wiring are required before operation. Smartphone application compatibility may vary depending on Android device version and Bluetooth settings. Actual component appearance or chassis color may vary depending on stock availability while maintaining the same functionality.
