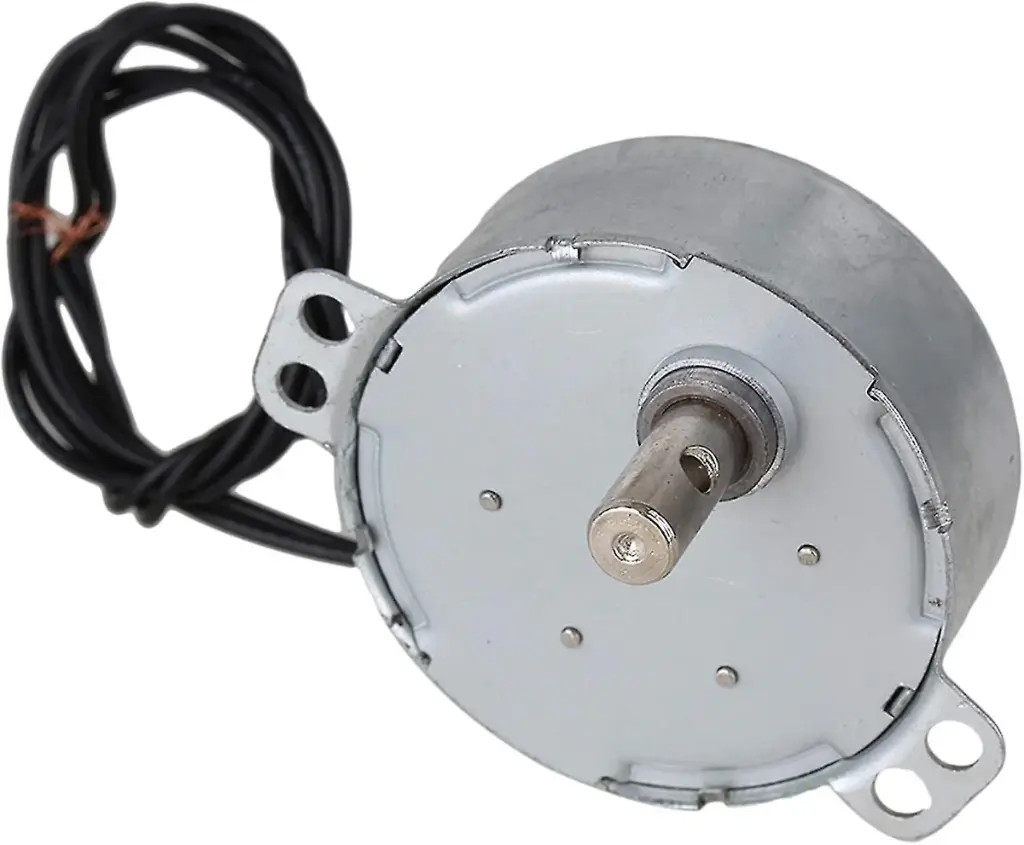

220V AC Synchronous Motor 4W High Torque Auto-Swing Motor for Table Fans and Displays

Product Description The 220V AC Synchronous Motor is a specialized, low-speed actuator designed for applications requiring constant speed and high reliability. Commonly used as an "auto-swing" motor in wall fans, pedestal fans, and electric heaters, it provides the steady oscillation needed for wide-area air distribution. Its synchronous design ensures that the rotation speed remains locked to the AC line frequency, providing flicker-free and jitter-free movement for motorized display stands, Christmas decorations, and craft turners.

Key Features

• Constant speed regulation regardless of load (within rated torque).

• High-torque internal gear reduction for smooth, heavy-duty rotation.

• Low noise and low vibration operation ideal for household appliances.

• Compact metal housing for excellent heat dissipation and durability.

• Simple two-wire AC connection—no external driver or controller required.

Technical Details

• Input Voltage: 220V – 240V AC

• Input Power: 4W

• Rotational Speed: 4/5 RPM or 5/6 RPM (Frequency dependent)

• Torque Rating: Approx. 4kgf.cm to 6kgf.cm

• Insulation Class: Class E

• Noise Level: < 45dB

• Shaft Type: D-type or Round with hole (Batch dependent)

• Dimensions: 49mm (Diameter) x 20mm (Thickness)
