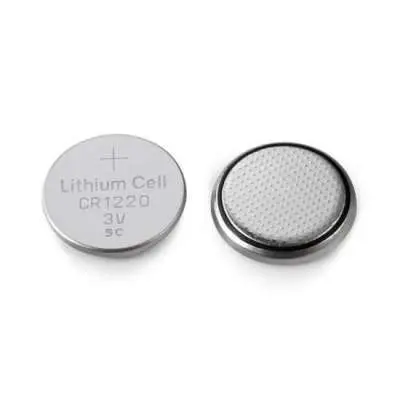

CR1220 3V Lithium Coin Cell Battery for Mini Remote Controls, RTC, and Wearables

CR1220 3V Lithium Coin Cell Battery for Mini Remote Controls, RTC, and Wearables

(0 review)
ComponentSpecification
ChemistryLithium Manganese Dioxide ($LiMnO_{2}$)
ModelCR1220
Nominal Voltage3.0V
Capacity~35mAh to 40mAh
Diameter12.5 mm
Height2.0 mm
WeightApprox. 0.8g
Price
₹ 21.19 ₹ 21.19
(Tax included)

Product Description The CR1220 is one of the smallest 3V lithium coin cells available, specifically engineered for ultra-compact electronic devices. With a tiny 12.5mm diameter and a slim 2mm profile, it is the standard power source for small-scale Real-Time Clock (RTC) modules, miniature laser pointers, car key fobs, and medical devices like digital thermometers. Despite its miniature size, it utilizes high-density lithium technology to provide a stable voltage and a long shelf life, making it a reliable choice for critical memory backup and low-power portable electronics.

Key Features

  • Ultra-Miniature Footprint: Ideal for space-constrained designs where even a CR1620 is too large.

  • Stable 3V Output: Delivers a consistent voltage throughout its discharge cycle, ensuring the accuracy of timing and sensor circuits.

  • Long Shelf Life: Retains nearly all its capacity for up to 10 years when stored properly, thanks to a very low self-discharge rate.

  • Lightweight: At under 1 gram, it is perfect for weight-sensitive wearable tech and micro-robotics.

  • High Temperature Resistance: Operates reliably across a wide range of environmental conditions.

Technical Details

  • Standard Discharge Current: 0.1mA

  • Max Pulse Discharge Current: 5mA

  • Operating Temperature: -20°C to +60°C

  • Self-Discharge Rate: < 1% per year

  • Terminal Type: Flat contact (Universal)

Prototyping and Engineering Tips from Robogears

  • RTC Integration: This cell is frequently used on the "Mini" versions of the DS1307 or DS3231 RTC modules. If you are designing a custom PCB to keep time, the CR1220 is the best balance between size and the 35mAh capacity needed to keep a clock running for several years.

  • Handling Advice: Because these cells are so small, they are very sensitive to surface contamination. Avoid touching the flat surfaces with your fingers; the oils can cause micro-corrosion over the years the battery is expected to last. Use plastic tweezers or a clean lint-free cloth.

  • Voltage Checks: When testing a CR1220 with a multimeter, a healthy new cell should read between 3.1V and 3.3V. If the voltage is at exactly 3.0V or below without a load, the cell is nearing the end of its useful life for most electronic memory applications.

  • Battery Holders: Ensure you use a holder specifically rated for 12mm cells. Using a 16mm or 20mm holder will not work, as the tension clips will not reach the smaller diameter of the CR1220.

Package Includes

  • 1 x CR1220 3V Lithium Coin Cell

Disclaimer Images are for reference; actual brand marking or packaging may vary by batch. Specifications subject to change by manufacturer. Keep away from small children; coin cells are high-risk choking and ingestion hazards.
