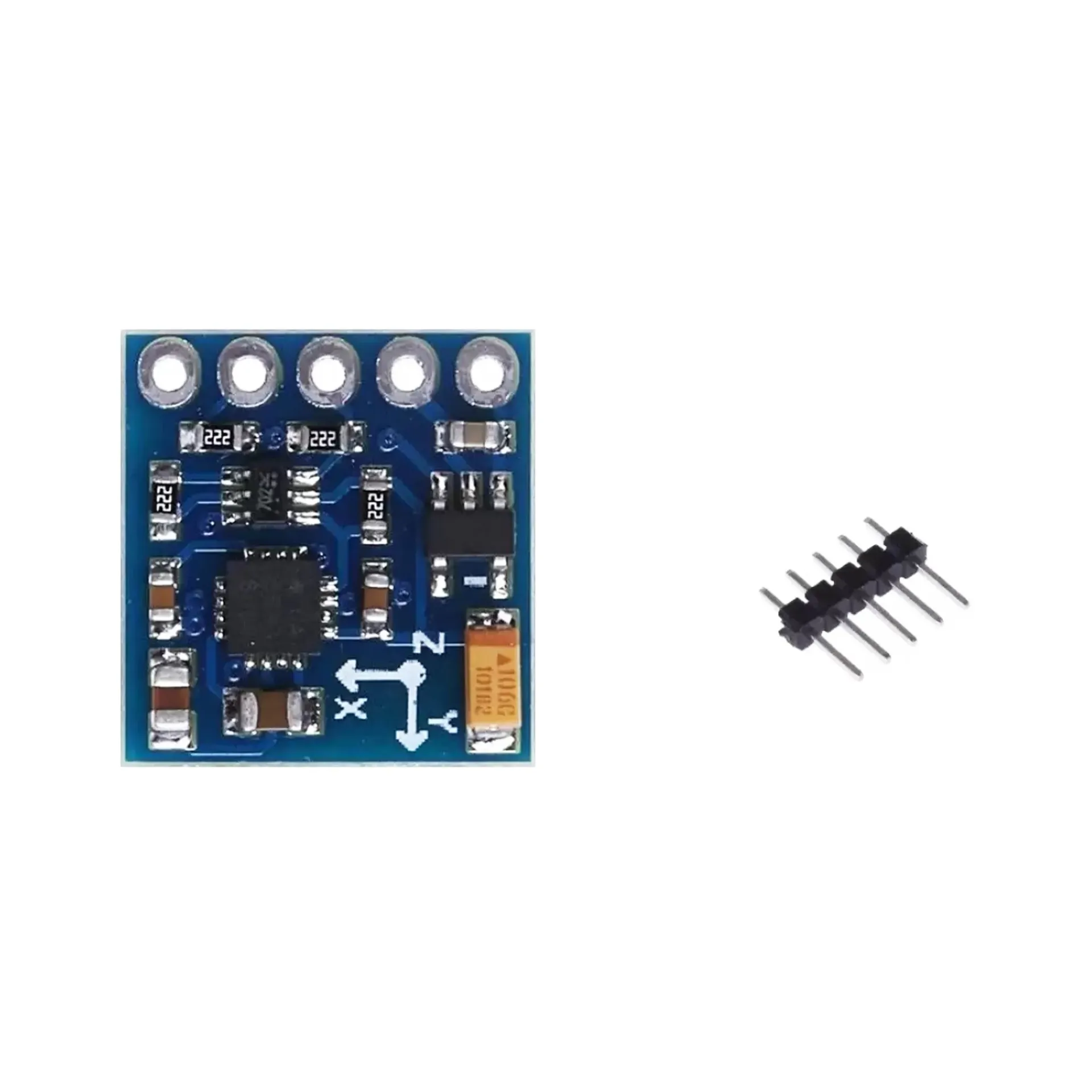

GY-271 HMC5883L 3-Axis Digital Compass Module – High-Precision Magnetic Field Sensor for Drone Navigation, Robotics, and Directional Tracking

Product Description The GY-271 HMC5883L is a high-precision 3-axis digital compass module designed for low-field magnetic sensing with a digital interface. It utilizes advanced high-resolution magneto-resistive technology to provide compass heading accuracy within 1 to 2 degrees. This module is essential for applications requiring precise directional tracking, such as drone navigation systems, mobile robotics, and handheld orientation devices. By detecting the Earth's magnetic field, it allows your microcontroller to determine its heading relative to North. Its compact size and integrated voltage regulation make it easy to incorporate into any DIY project via the standard I2C bus.

Key Features

• 3-Axis Magnetoresistive Sensors: Provides full spatial orientation by measuring magnetic field strength across X, Y, and Z planes.

• 12-Bit ADC Integration: Features a built-in 12-bit Analog-to-Digital converter for precise digital output via I2C.

• Wide Voltage Compatibility: Includes an on-board voltage regulator, making it safe for use with both 3.3V and 5V power sources.

• Low Power Consumption: Draws extremely low current during operation, ideal for battery-powered or portable electronics.

• Standard I2C Interface: Simplifies wiring and code implementation with a 2-wire serial interface compatible with most microcontrollers.

Technical Details

• Magnetic Field Range: Supports a wide range from ±1.3 to ±8 Gauss, adjustable via internal register settings.

• Fast Response Rate: Capable of outputting data at rates up to 160Hz, suitable for real-time motion tracking.

• High Heading Accuracy: Provides consistent 1° to 2° heading accuracy, which is vital for autonomous navigation.

• Operating Current: Consumes only 100 microamps in active mode and as low as 2 microamps in sleep mode.

• Integrated Self-Test: Features a self-test function to verify sensor functionality and magnetic interference in the environment.

• I2C Pull-up Resistors: On-board 2.2k Ohm resistors ensure reliable communication without needing external pull-ups.

• Magneto-Resistive Technology: Utilizes Anisotropic Magneto-Resistive (AMR) sensors for superior performance over Hall-effect sensors.

• On-board LDO Regulator: Features a 3.3V regulator that protects the sensitive sensor IC while allowing a 5V VCC input.

• Logic Level Shifting: Integrated MOSFET-based level shifting protects the I2C lines when interfacing with 5V systems.

• Small PCB Footprint: The 14mm x 13mm size is optimized for space-constrained hobbyist and industrial designs.

• Operating Temperature: Stable performance across a wide temperature range from -30°C to +85°C.

• Internal Clock: Features an internal oscillator, removing the need for an external timing reference.

• Compass Heading Calculation: Provides raw magnetic data which is then processed using trigonometric functions for heading output.

• Interference Resistance: Designed with filtering circuitry to minimize electromagnetic noise from nearby power lines.

• Calibration Support: Compatible with various software libraries that support hard-iron and soft-iron calibration.
