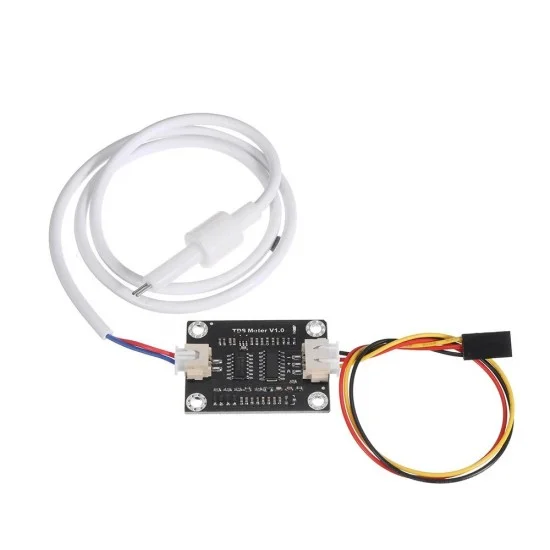

Analogue TDS Sensor Water Quality Sensor Module

Analogue TDS Sensor Water Quality Sensor Module

(0 review)
FeatureDetails
Measurement Range0 to 1000 ppm
Output Signal0V to 2.3V Analog
Working Voltage3.3V to 5.5V DC
Accuracy±10% F.S. (at 25°C)
Probe Interface2-Pin XH2.54
Probe TypeWaterproof TDS Probe
Price
₹ 355.93 ₹ 355.93
(Tax included)

Product Description & Technical Details

Product Description The Analog TDS Sensor Module is a cost-effective solution for measuring the Total Dissolved Solids (TDS) in water. TDS indicates how many milligrams of soluble solids are dissolved in one liter of water; generally, a higher TDS level indicates more substances are present, meaning the water is less "pure." This kit includes a signal transmitter board and a waterproof TDS probe. It works by measuring the electrical conductivity of the liquid and converting it into an analog voltage. It is a staple at Robogears for building DIY water purifiers, hydroponic nutrient monitoring systems, and environmental sensing stations.

Key Highlights

  • Wide Voltage Compatibility: Supports both 3.3V and 5.5V power systems, making it directly compatible with Arduino (5V) and modern low-power MCUs like ESP32 or Raspberry Pi (3.3V).

  • Analog Output: Provides a simple analog voltage output that corresponds to the TDS value, allowing for easy integration using the analogRead() function.

  • Waterproof Probe: The high-quality probe can be immersed in water for long periods, though the transmitter module itself is not waterproof and must be kept dry.

  • Hydroponic Ready: Ideal for monitoring nutrient concentrations in hydroponic solutions, where maintaining a specific PPM (parts per million) is crucial for plant growth.

  • Simple Calibration: Features an onboard interface that allows for basic calibration to ensure readings remain accurate over time.

Technical Specifications

  • Working Current: 3 to 6 mA

  • TDS Probe Needle: 2 needles (Conductivity based)

  • Probe Length: ~60cm to 80cm

  • Module Size: 42mm x 32mm

  • Operating Temperature: 0°C to 50°C

Installation Tip from Robogears The TDS value is highly dependent on water temperature. For professional-grade accuracy, we recommend using this sensor alongside a DS18B20 Temperature Sensor to implement software-based temperature compensation. To calculate the TDS in your code, you will need to map the analog voltage using a specific formula (usually a quadratic equation) provided in the sensor's library. Important: Ensure the TDS probe does not touch the walls or bottom of the container during measurement, as this can affect the conductivity reading.

Note: This kit includes the transmitter module and the TDS probe. It is designed for hobbyist and educational use. Product images are for illustration purposes only.
