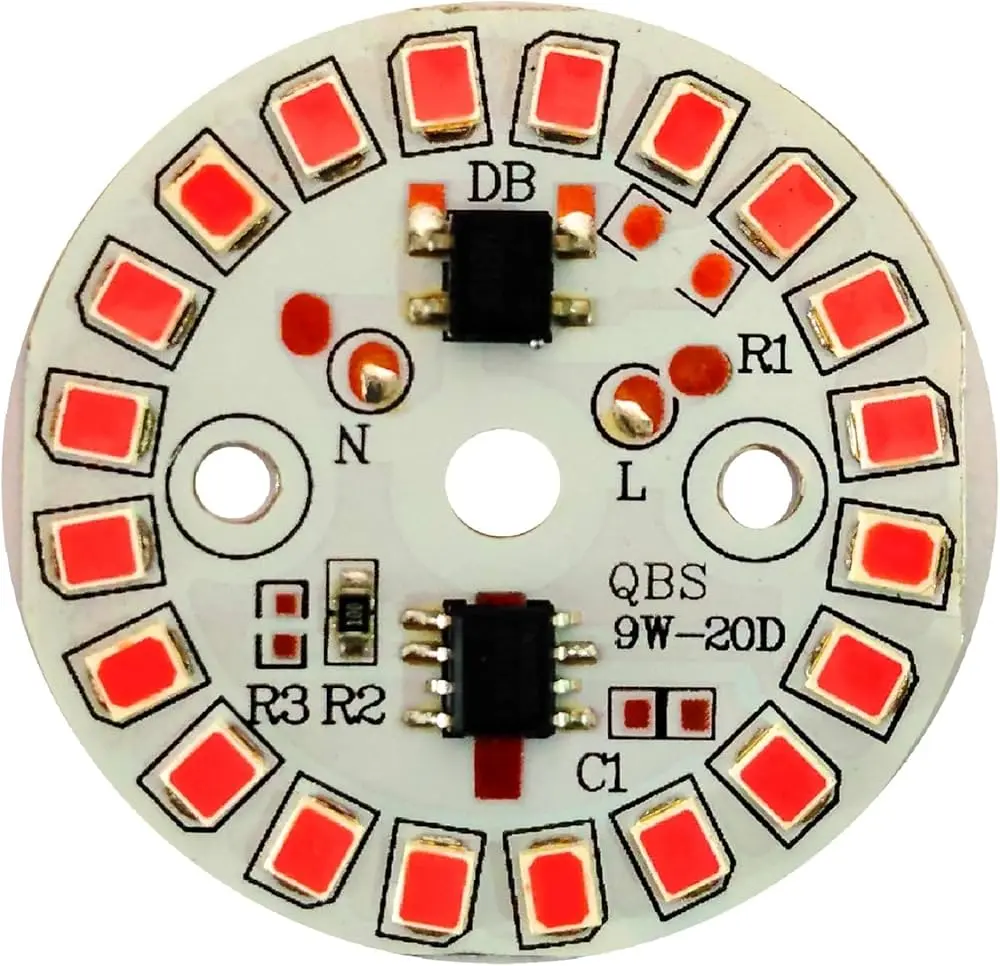

9-Watt 20-LEDs AC DOB Led Circular PCB for Led Bulbs Red

9-Watt 20-LEDs AC DOB Led Circular PCB for Led Bulbs Red

(0 review)
ComponentSpecification
Power Rating9 Watt
Input Voltage220V - 230V AC (Direct)
LED Count20 High-Intensity SMDs
ColorRuby Red
Circuit TypeDOB (Driver-on-Board)
Form FactorCircular PCB
Outer DiameterStandard 9W Bulb Size (~45mm to 48mm)
Price
₹ 16.95 ₹ 16.95
(Tax included)

Product Description The 9W AC DOB Red LED PCB is an all-in-one lighting solution designed for direct high-voltage operation. Featuring "Driver-on-Board" (DOB) technology, this circular PCB integrates the power management circuitry directly onto the plate, eliminating the need for an external bulky LED driver. With 20 high-performance red SMDs, it provides a powerful, vibrant ruby red glow. This PCB is the industry standard for repairing red LED bulbs, creating festive lighting, or manufacturing specialized industrial signaling lamps.

Key Features

  • Driver-on-Board (DOB): Direct 230V AC input—no external driver or transformer required.

  • High LED Density: 20 high-quality SMD LEDs ensure uniform light distribution and high brightness.

  • Compact Design: Slim circular profile fits perfectly into standard 9W LED bulb housings (B22/E27).

  • Vibrant Red Output: Delivers a deep, saturated red hue ideal for decorative and warning applications.

  • Easy Installation: Simplified two-wire soldering (Line and Neutral) for fast assembly and repair.

Technical Details

  • Connection Points: L (Line) and N (Neutral) marked clearly on the PCB.

  • Base Material: Aluminum Core PCB for efficient heat dissipation.

  • Surge Protection: Integrated components to handle minor voltage fluctuations.

  • Operating Temp: -10°C to +60°C

Prototyping and Engineering Tips from Robogears

  • Thermal Management is Mandatory: These DOB plates generate significant heat. You must mount the PCB onto a proper aluminum heat sink or inside a bulb’s metallic housing using Thermal Paste or a Thermal Pad. Operating without a heat sink will cause the LEDs to fail within minutes.

  • Safety First: This PCB operates on 220V AC. Always ensure the power is disconnected before handling. Use insulated wires and ensure no exposed solder joints touch the metallic housing.

  • Flicker-Free Performance: While DOBs are convenient, they are sensitive to high voltage surges. Using an external MOV (Metal Oxide Varistor) in parallel can provide an extra layer of protection for your DIY lighting project.

  • Creative Uses: These are excellent for creating high-power "Darkroom" safe-lights, festive lanterns, or large-scale red status indicators for industrial machinery.

Package Includes

  • 1 x 9W AC DOB Red LED Circular PCB (20 LEDs)

Disclaimer Images are for reference; actual layout may vary slightly by batch. HIGH VOLTAGE WARNING: This product connects directly to AC mains. Improper handling can cause electric shock. Professional installation or adult supervision is recommended.
