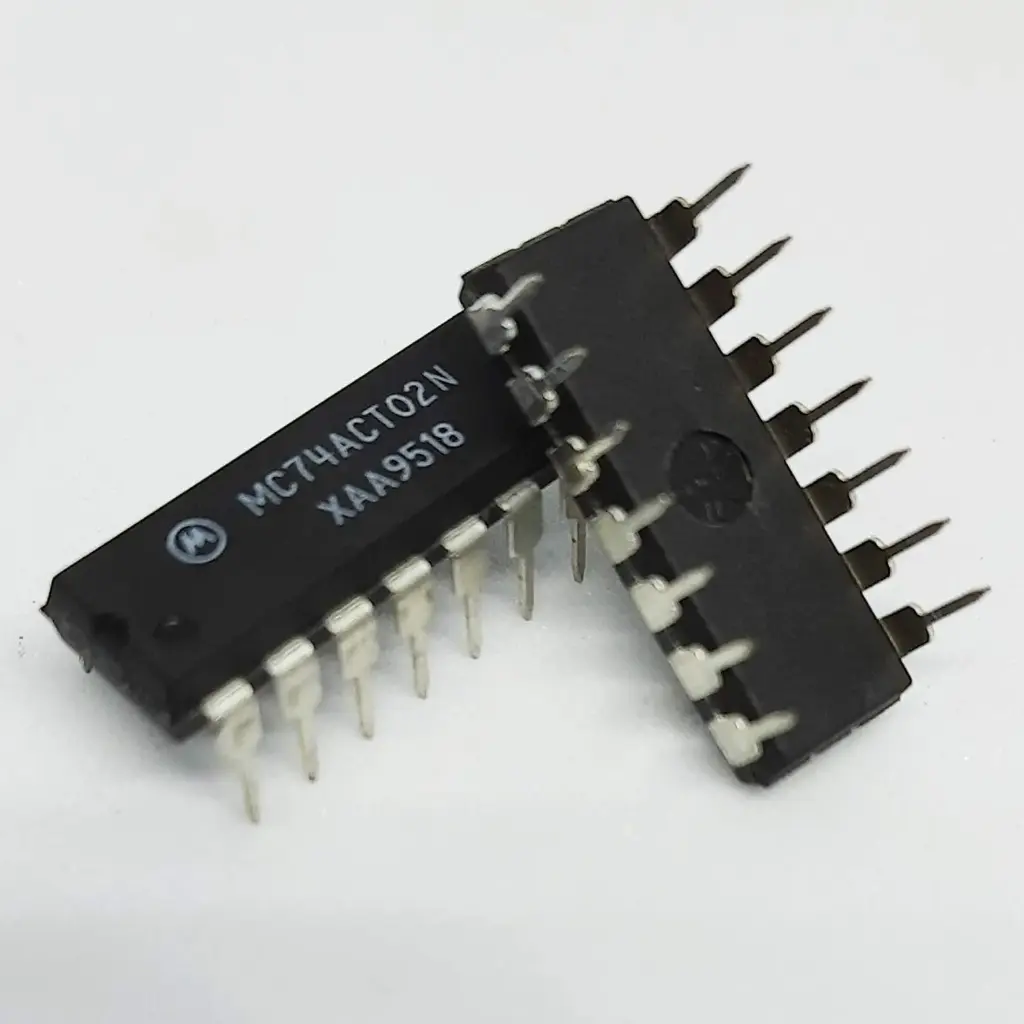

7402 NOR Gate IC DIP 14 pin

Specification	Details
Logic Family	74LS (Low-power Schottky)
Logic Type	NOR Gate
Number of Gates	4 (Quad)
Number of Inputs	2 per Gate
Operating Voltage	4.75V to 5.25V (Standard 5V)
Output Current	8mA
Package Type	2 Rows x 7 Columns (DIP-14)

Price

🚚 Ships within 24 Hours
📦 Pan India Delivery

₹ 16.95

(Tax included)

Barcode: 90505

Product Description

The 74LS02 Quad 2-Input NOR Gate IC is a fundamental digital logic component containing four independent NOR gates within a single 14-pin package. Each gate performs the Boolean function $Y = \overline{A + B}$, meaning the output is HIGH (1) only when both inputs are LOW (0). If any input is HIGH, the output immediately switches to LOW. Utilizing Low-power Schottky (LS) technology, this IC provides high-speed logical operations with significantly reduced power consumption compared to the original 74 series. It is a "universal" logic building block often used in SR latches, oscillators, and complex combinational logic circuits.

Key Features

Four Independent Gates: A single 14-pin chip handles four separate logical "NOR" operations, optimizing PCB space.
Universal Logic Capability: Since NOR gates are "Universal Gates," they can be combined to replicate any other logic function (AND, OR, NOT, etc.).
Low Power Consumption: The "LS" series is designed for energy efficiency while maintaining fast switching speeds.
TTL Compatibility: Standard 5V logic levels allow for direct interfacing with microcontrollers like Arduino, 8051, and PIC.
Standard DIP-14 Package: Fits perfectly into breadboards and 14-pin IC sockets for rapid prototyping and educational labs.

Technical Details

Propagation Delay: ~10ns to 15ns.
Operating Temperature: 0°C to +70°C.
Pin Configuration: Pin 14 (VCC), Pin 7 (GND).

Prototyping and Engineering Tips from Robogears

The "All Low" Logic: CRITICAL: Remember that a NOR gate output only goes HIGH when all inputs are LOW. This makes it exceptionally useful for "Zero-Detection" circuits or as an active-high trigger that only fires when a system is completely idle.
Unique Pinout Warning: Unlike the 74LS08 (AND) or 74LS32 (OR), the 74LS02 has a different internal gate arrangement. Specifically, the Output for the first gate is on Pin 1, while the Inputs are on Pins 2 and 3. Always refer to the pinout diagram before wiring to avoid logic errors.
Creating an SR Latch: You can create a basic memory element (Flip-Flop) by cross-coupling two NOR gates from this IC. This is the foundation of digital memory and debouncing switches.
Avoid Floating Inputs: Never leave unused input pins floating. Floating pins act as antennas and can lead to erratic switching and increased power draw. Connect unused inputs to Ground (GND).
Decoupling for Stability: High-speed logic transitions can cause "noise" on the power lines. Always place a 0.1µF Ceramic Capacitor between Pin 14 (VCC) and Pin 7 (GND) as close to the IC as possible to ensure clean switching.

Package Includes

1 x 74LS02 Quad 2-Input NOR Gate IC (DIP-14)

Disclaimer: Product images are shown for illustrative purposes only. The exact color of the knobs or the branding placement on the chassis may vary slightly between manufacturing batches, but all technical specifications and the 850A performance standards remain as described. This disclaimer also applies to any included accessories such as nozzles and stands.

Safety Warning: Ensure your power supply is regulated to a stable 5V. Voltages above 7V will cause permanent internal damage. Use the notch on the plastic body to correctly identify Pin 1 before applying power to prevent short circuits.
